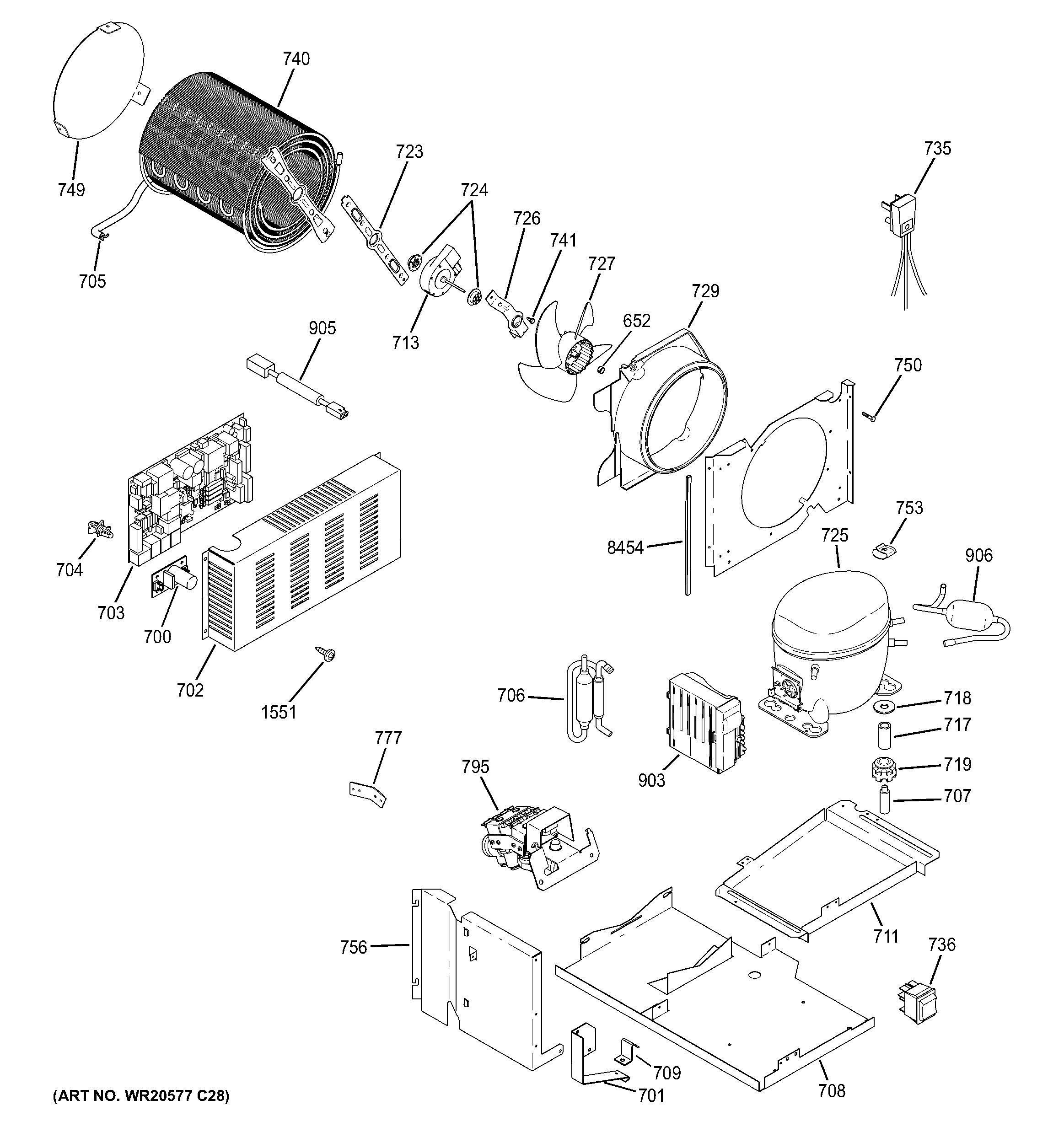

ZISB480DXA MACHINE COMPARTMENT

ZISB480DXA MACHINE COMPARTMENT

Written by

in

ZISB480DXA MACHINE COMPARTMENT

Products

PositionProduct
652WR02X12149 GE Refrigerator Ring
701WR02X12198 GE Refrigerator Bracket Water Valve
702WR02X12829 GE Sxs Main Cover Board
703WR55X11070 GE Refrigerator Main Control Board Assembly
704WR01X10301 GE Refrigerator Main Board Standoff
705CAP SUCTION TUBE ASM
706WR86X25269 GE Refrigerator R134 Dryer
707STUD COMPRESSOR MTG
708GEN WR17X10687
709WR02X11221 GE Refrigerator Retainer Pan System
711WR17X11924 GE Refrigerator Stainless Steel Vaporizer Pan Kit
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
718WR01X10305 GE Refrigerator Steel Collar
723WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
724WR02X10520 GE Refrigerator Fan Motor Grommet
725COMPRESSOR VCC3 REPL. KI
726WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735POWER SUPPLY PCB
736WR49X10070 GE Refrigerator Master Light SW. Kit
740WR84X10022 GE Refrigerator Condenser Replacement Kit
741WZ5X158D GE Screw Package of 12
749COND BAFFLE
750WR1X1826 GE Refrigerator Screw
756WR17X12529 GE Left Baffle
777WR02X10370 GE Refrigerator Water Valve Bracket
795BRACKET AND VALVE ASM
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
905WR23X10605 GE Communication Harness
906WR86X10038 GE Refrigerator Accumulator
1551WR1X5645 GE Refrigerator Screw
8454WR38X10190 GE Refrigerator Edge Trim
