ZISB480DXA QUICK CHILL

ZISB480DXA QUICK CHILL

Written by

in

ZISB480DXA QUICK CHILL

Products

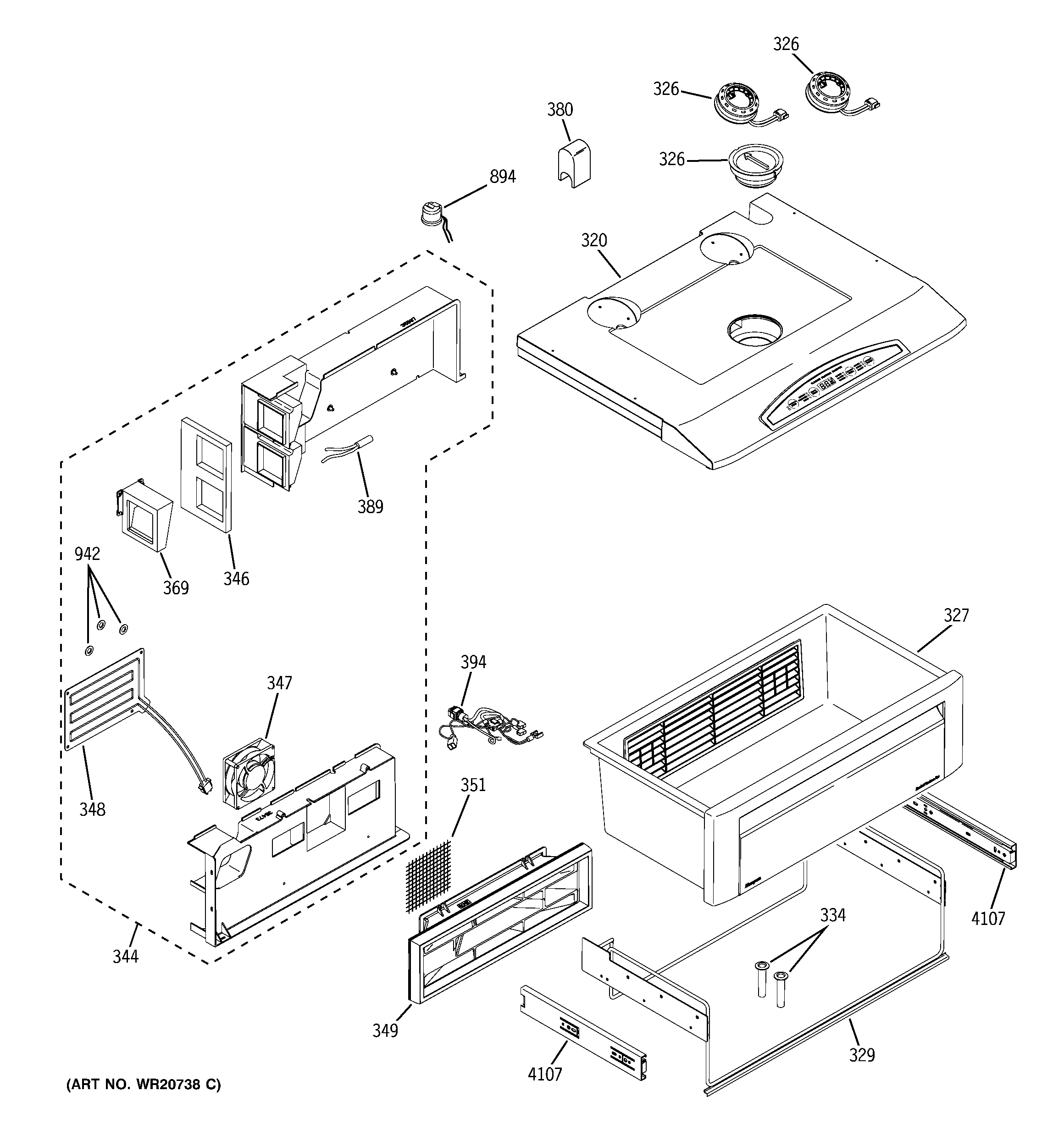

PositionProduct
320WR32X10926 GE Refrigerator QC Mullion Assembly 48
326WR02X11198 GE Refrigerator Halogen QC Lamp Assembly
327WR32X25933 GE Refrigerator Pan Quick Chill Assembly 48"
329WR71X10412 GE Vegetable Wire Frame
334WR2X8472 GE Refrigerator Vent Tube
344WR31X10017 GE Refrigerator Air Handler Assembly QC
346WR60X10116 GE Refrigerator QC Damper Seal
347WR17X13035 GE Refrigerator QC Fan Harness
348WR51X10098 GE Refrigerator Heater THAW 36/42/48
349WR31X10018 GE Refrigerator Case Diffuser Assembly
351WR01X10298 GE Wire Mesh Qc Housing
369DAMPER ASM D
380WR02X13054 GE Refrigerator Water Line Cover
389WR55X10025 GE Refrigerator Temperature Sensor
394WR23X10267 GE Refrigerator QC Harness
894WR50X10092 GE Refrigerator Light Thermostat
4107WR72X10366 GE Refrigerator Outer Slide
