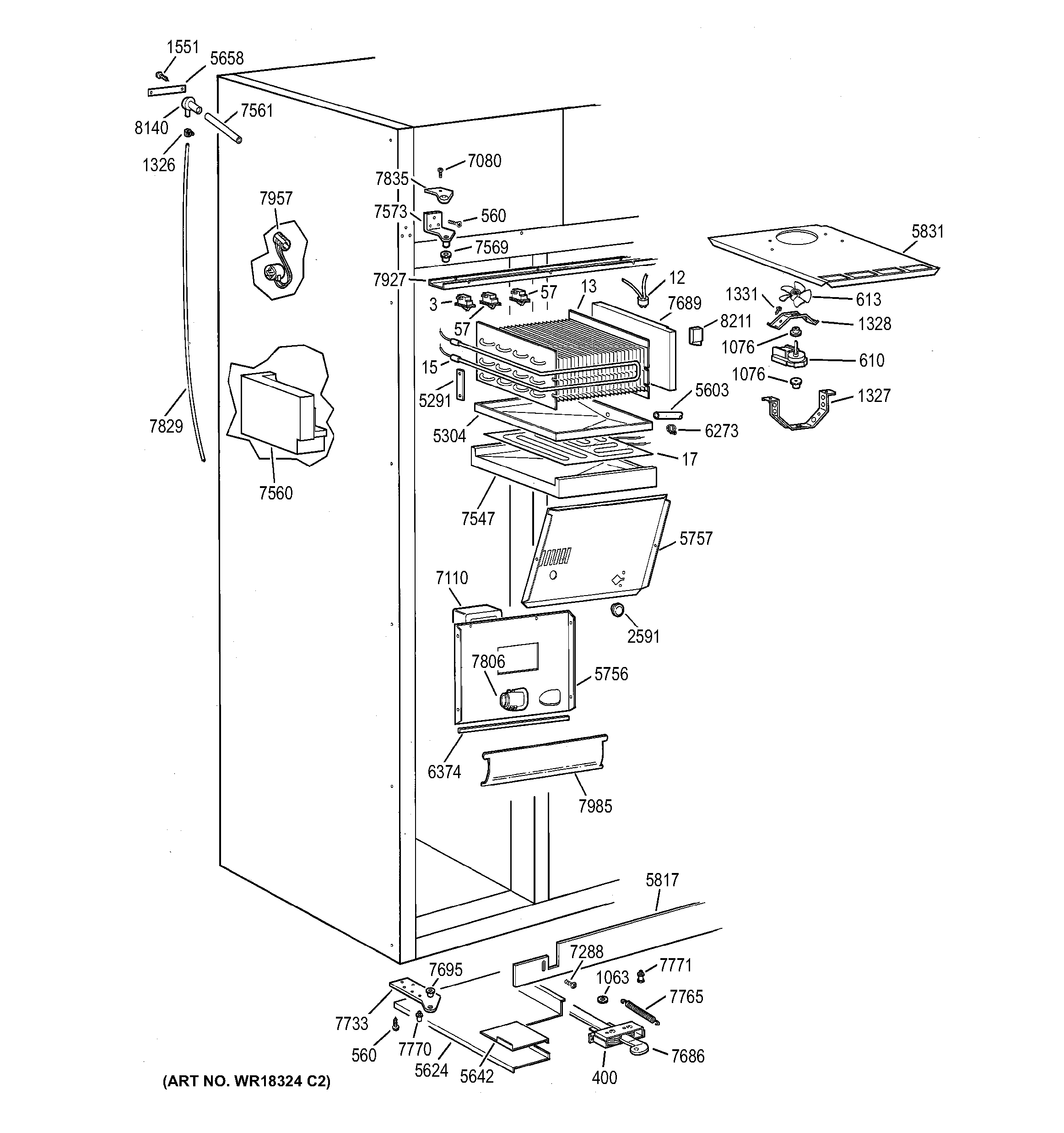

ZISB48DYA FREEZER SECTION

ZISB48DYA FREEZER SECTION

Written by

in

ZISB48DYA FREEZER SECTION

Products

PositionProduct
3WR23X37285 GE Light Switch
3WR30X10093 GE Refrigerator Ice Maker
12DEFROST THERMOSTAT
12SWITCH
13EVAPORATOR
13GEN WR29X5188
15GEN WR29X5167
15WR51X322 GE Refrigerator Defrost Heater
17GEN WR29X5185
57SWITCH-CRADLE-WATER SIDE
400CLOSURE FZ DOOR
560WR1X1754D GE Refrigerator Screw Package
610GEN WR60X0182
613WR60X123 GE Fan Blade Black
1063GEN WR01X1833
1076GEN WR02X7391
1326WR1X5278 GE Refrigerator Cable Clamp
1327BRACKET FAN REAR
1328BRACKET FAN FRONT
1331SCREW BRKT. EVAP. FAN
1551WR1X5645 GE Refrigerator Screw
2591GEN WR01X1932
5291WR2X8619 GE Refrigerator HTR Bracket
5304WR49X10021 GE Refrigerator Defrost Pan Heater
5603GEN WR17X3030
5624GEN WR17X3423
5642GEN WR17X3424
5658WR2X8613 GE Refrigerator Strap
5756GEN WR17X3429
5757GEN WR17X3430
5817GEN WR74X0237
5831EVAP. HOUSING BTM
6273GEN WR01X1843
6374TRIM
7080GEN WR01X1933
7110GEN WR14X0450
7288SCREW TOEKICK MTG
7547GEN WR17X3037
7560GEN WR17X3039
7561WR2X8612 GE Refrigerator Fill Tube
7569GEN WR02X8587
7573GEN WR13X0640
7686GEN WR02X8926
7689BAFFLE EVAP
7695BUSHING BTM HINGE
7733GEN WR13X0641
7765GEN WR02X8804
7770WR02X11209 GE Refrigerator Shear Pin
7771GEN WR01X1839
7806GEN WR02X8928
7829WR17X11349 GE Refrigerator Plastic Tube
7835WR13X10080 GE Refrigerator Hinge Cover Left Hand
7927GEN WR17X3896
7957GEN WR51X0369
7985GEN WR17X3441
8140WR2X8474 GE Fill Tube
8211GEN WR02X9301
