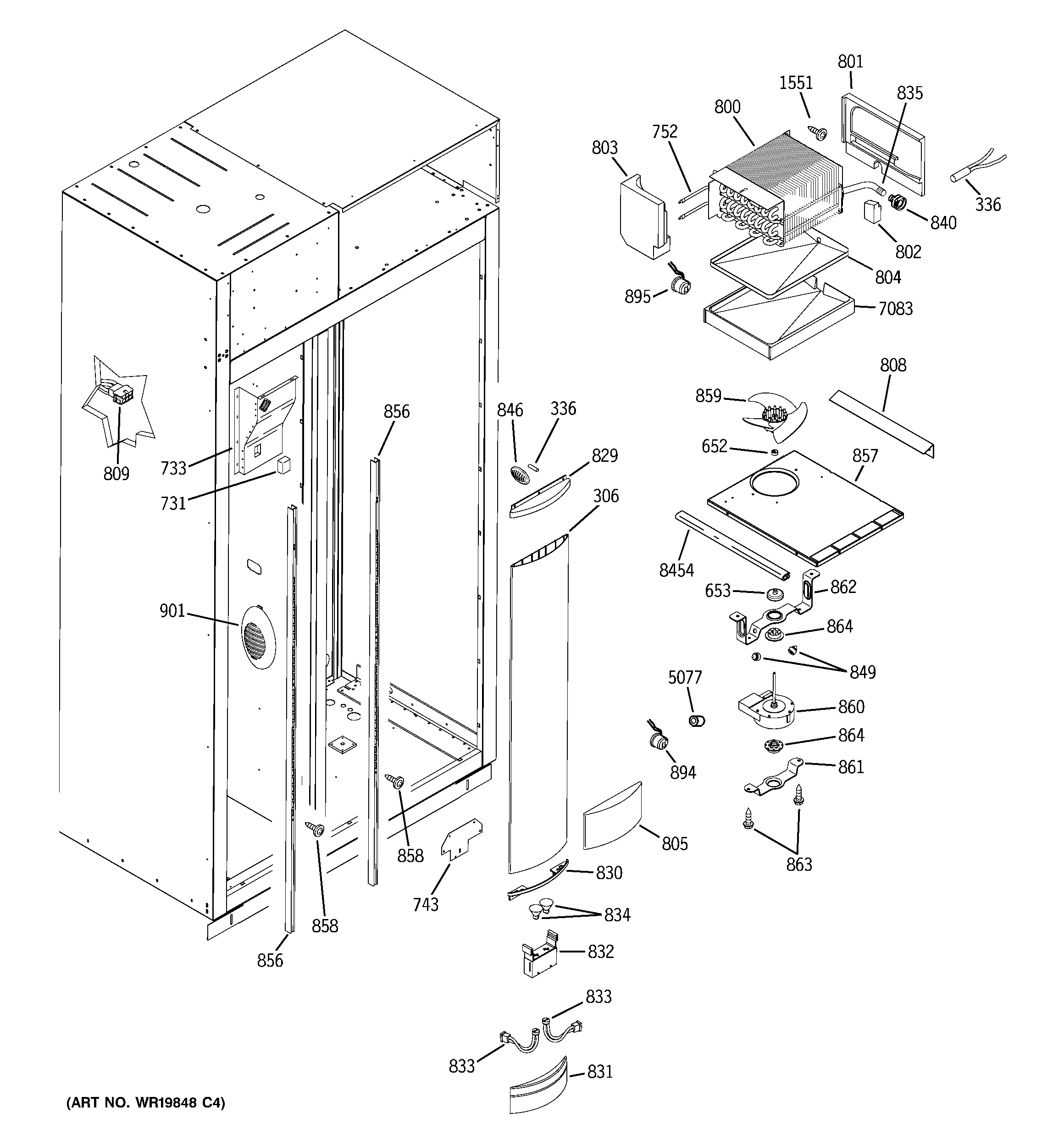

ZISP420DTASS FREEZER SECTION

ZISP420DTASS FREEZER SECTION

Written by

in

ZISP420DTASS FREEZER SECTION

Products

PositionProduct
306LIGHT COLUMN SXS FF/FZ
336WR55X10025 GE Refrigerator Temperature Sensor
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
733GEN WR74X10114
752WR51X322 GE Refrigerator Defrost Heater
800WR85X10039 GE Refrigerator Evaporator Assembly
801FF RETURN AIR BAFFLE
802ELUT BLOCK
803FOAM BLOCK
805REFLECTIVE FILM FF
808RAIN HAT
829ENDCAP LIGHT COLUMN FZ
830ENDCAP LIGHT COLUMN BTM
831BULB HOUSING COVER
832WR02X11565 GE Refrigerator Bulb Housing Assembly
834WR02X11183 GE Refrigerator Halogen Bulb Light
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
846WR02X10647 GE Refrigerator Grille Sensor
849BUMPER
856FZ SHELF TRACK
858WR01X10051 GE 10-24 x 1" Phillips Head Tap
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894WR50X10035 GE Refrigerator Light Thermostat
895THERMOSTAT CUTT-OFF
901WR71X10325 GE Refrigerator Air Diffuser
1551WD2X295 GE Refrigerator Screw
5077GEN WR02X10023
7083WR17X10688 GE Refrigerator Baffle Evaporator Foam
8454WR38X10190 GE Refrigerator Edge Trim
