ZISP420DTBSS FREEZER SECTION

ZISP420DTBSS FREEZER SECTION

Written by

in

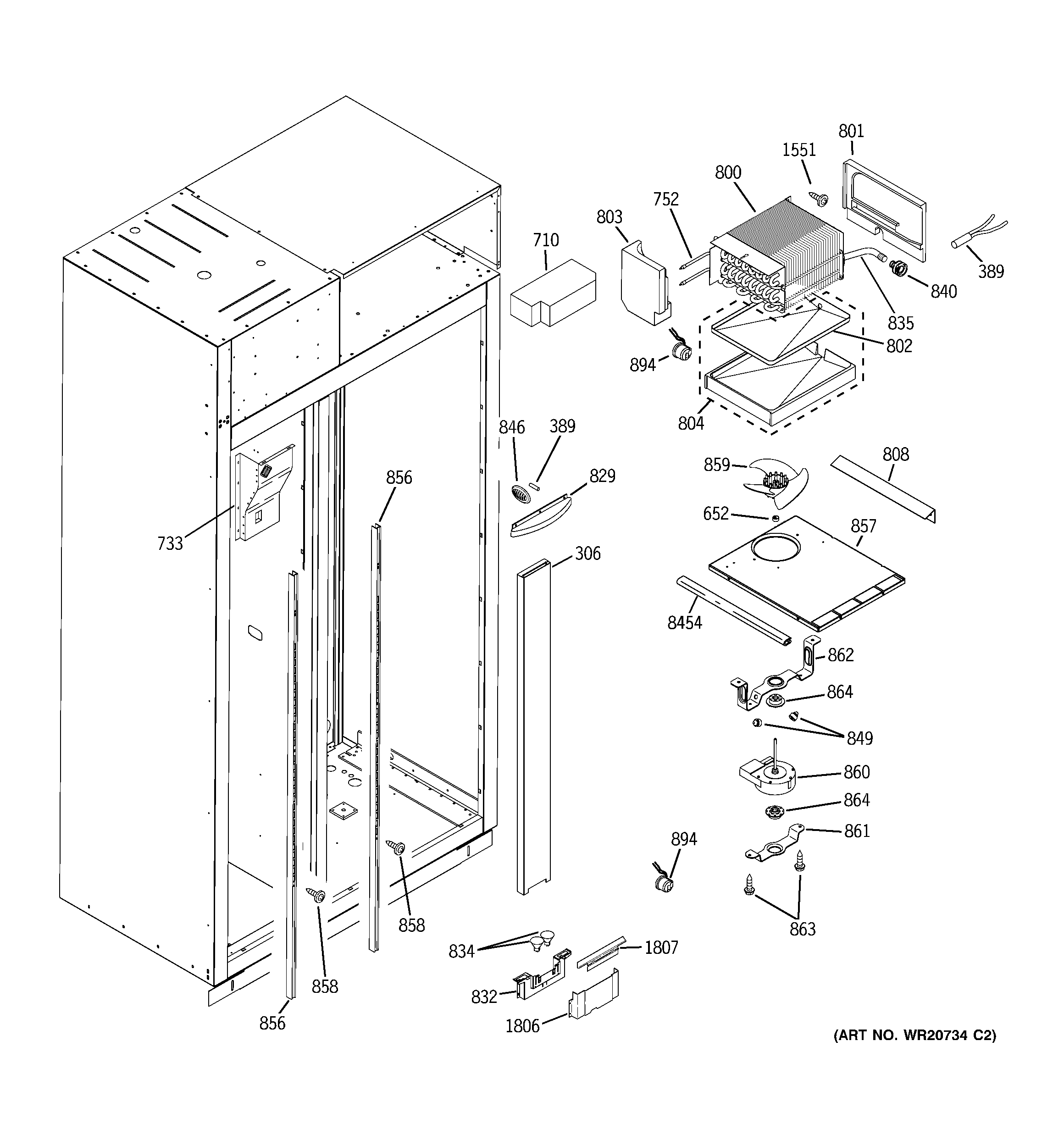

ZISP420DTBSS FREEZER SECTION

Products

PositionProduct
306GEN WR17X12617
306LIGHT COLUMN ASM 36/42FZ
652WR02X12149 GE Refrigerator Ring
733DUCT CVR FZ 36/42 D
752WR51X322 GE Refrigerator Defrost Heater
800WR85X10039 GE Refrigerator Evaporator Assembly
801FF RETURN AIR BAFFLE
804WR17X29775 GE Refrigerator Drain Pan and Heater
808BRACKET QC DUCT
829ENDCAP LIGHT COLUMN FZ
832BULB HOUSING ASM 36/42FZ
834WR02X11183 GE Refrigerator Halogen Bulb Light
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
840WR02X12062 GE Refrigerator Flapper & Valve Assembly
846WR02X10647 GE Refrigerator Grille Sensor
849BUMPER
856FZ SHELF TRACK
857WR17X12615 GE Refrigerator Housing Evaporator Bottom
858SCR 10-24 F PNP 1.25S
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X10322 GE Refrigerator Dust Cap B02
862WR02X10653 GE Refrigerator Orifice Fan Bracket
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894WR50X10092 GE Refrigerator Light Thermostat
1551WR1X5645 GE Refrigerator Screw
1806COVER HARNESS SXS
1807CLIP CAP END
8454WR38X10190 GE Refrigerator Edge Trim
