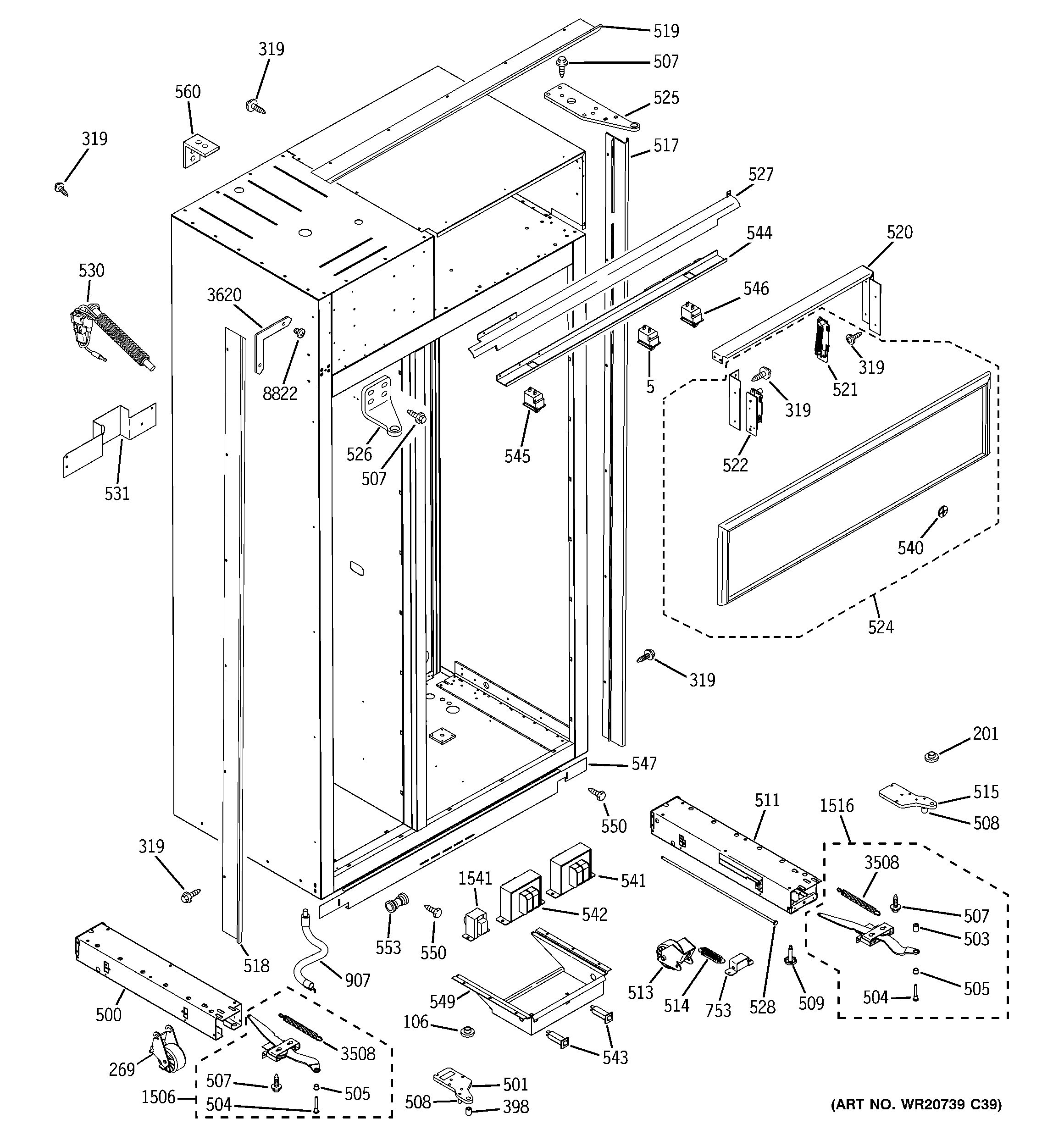

ZISP420DXASS CASE PARTS

ZISP420DXASS CASE PARTS

Written by

in

ZISP420DXASS CASE PARTS

Products

PositionProduct
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
201WR02X10953 GE Refrigerator Bushing Hinge Bottom
269WR01X10809 GE Key Pivot
319WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
500WR13X10870 GE Base Channel Assembly Left
501WR13X10241 GE Refrigerator Lower SXS Hinge Case
504WR02X11207 GE Refrigerator Shoulder Bolt
505WR02X10951 GE Refrigerator Bushing Arm Nylon
507WR01X10177 GE Refrigerator Hinge Screw Door Bottom
508WR02X11209 GE Refrigerator Shear Pin
509LEVELING LEG
511WR13X30113 GE Refrigerator Right HandBase Channel
513WR2X8377 GE Refrigerator Wheel Assembly
514WR02X11233 GE Wheel Spring
515WR13X23372 GE Refrigerator Bottom Case Hinge
517WR17X12831 GE Refrigerator Trim Case Right Hand Side
518WR17X11181 GE Refrigerator Case Trim
519WR17X11353 GE Refrigerator Case Trim Top
520GEN WR13X10876
521WR13X10410 GE Refrigerator Grille Hinge Left Hand
522WR13X10411 GE Grill Right Hinge
524WR74X24674 GE Grill Assembly Pro SXS 42"
525WR13X10656 GE Refrigerator Upper Hinge
526WR13X10246 GE Refrigerator Hinge SXS Case Upper
527WR74X10112 GE Refrigerator Eyebrow Switch Cover
528WR01X10256 GE Refrigerator Base Shaft
530WR49X10093 GE Refrigerator Fill Tube Kit
531WR02X12853 GE Refrigerator Fill Tube Cover Dispenser
540WB02K10295 GE Oven Monogram Badge
541WR62X10069 GE Refrigerator 140VA Transformer SXS
542WR62X10030 GE Refrigerator Light Transformer
543WR23X10269 GE Refrigerator 2 AMP Fuse
544PLATE SWITCH SXS
545WR23X427 GE Refrigerator Freezer Light Switch
546WR23X37285 GE Light Switch
547WR74X26126 GE Refrigerator Toe Kick 42"
549WR17X12738 GE Tray Transformer
550WR01X10065 GE Screw
553WR02X24203 GE Refrigerator Connector Water Line
560WR01X10825 GE Refrigerator Anti-Tip Bracket
907GEN WR02X11842
1506WR02X11208 GE Refrigerator Link Accelerator D02
1516WR02X11211 GE Refrigerator Link Actuator D02
1541WR62X26946 GE Refrigerator LED Transformer
3508WR02X12949 GE Refrigerator Blue Spring Closure
3620WR02X11256 GE Refrigerator Top Case Trim Bracket
