ZISP480DTASS FREEZER SECTION

ZISP480DTASS FREEZER SECTION

Written by

in

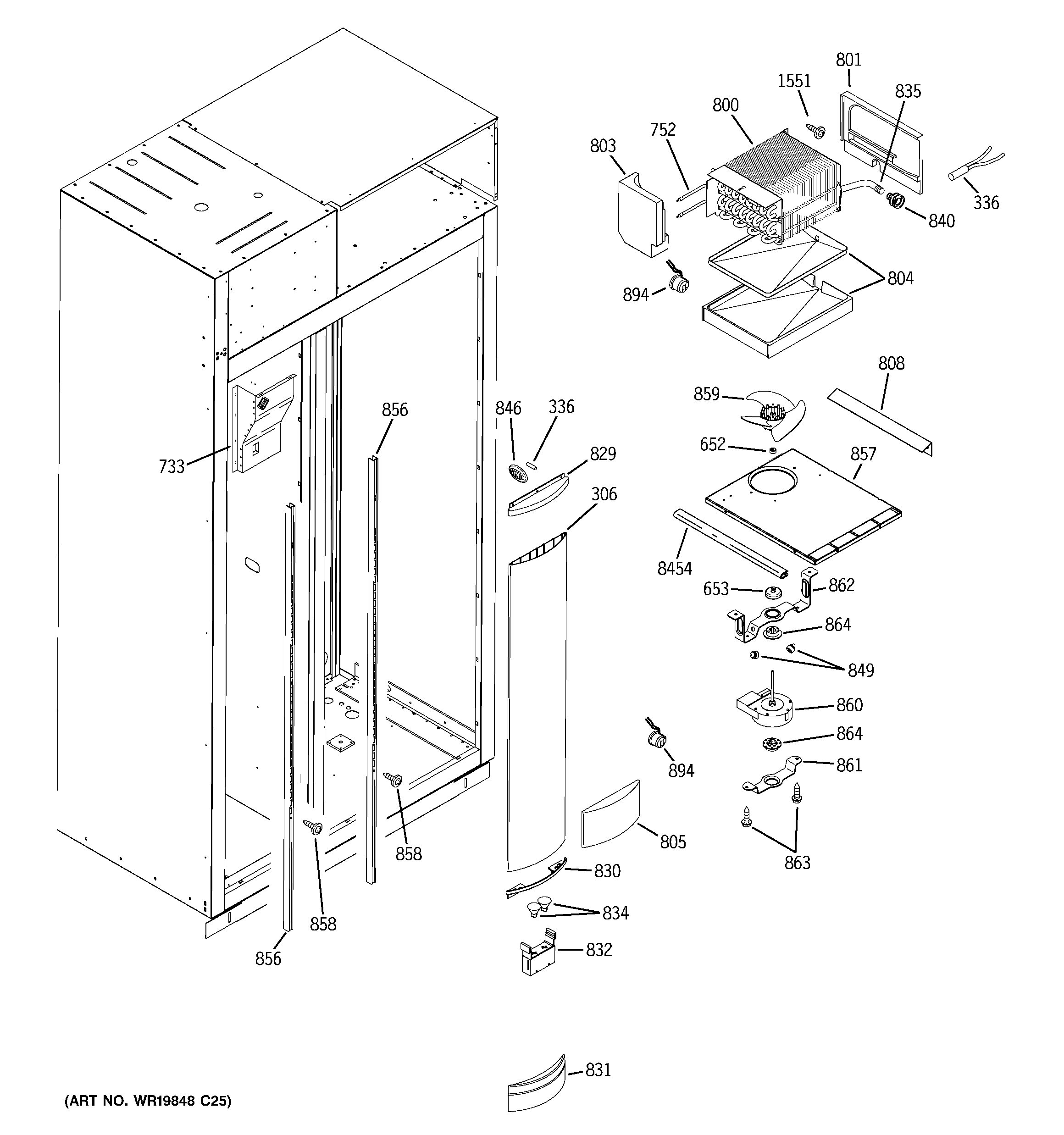

ZISP480DTASS FREEZER SECTION

Products

PositionProduct
306LIGHT COLUMN ASM
336WR55X10025 GE Refrigerator Temperature Sensor
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
733WR74X10103 GE Refrigerator Rear Duct
752WR51X322 GE Refrigerator Defrost Heater
800WR85X10039 GE Refrigerator Evaporator Assembly
801FF RETURN AIR BAFFLE
803GEN WR17X3039
804WR17X29775 GE Refrigerator Drain Pan and Heater
805REFLECTIVE FILM FF
808BRACKET QC DUCT
808RAIN HAT
829ENDCAP LIGHT COLUMN FZ
830ENDCAP LIGHT COLUMN BTM
831BULB HOUSING COVER
832WR02X11565 GE Refrigerator Bulb Housing Assembly
834WR02X11183 GE Refrigerator Halogen Bulb Light
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
840GEN WR02X10023
846WR02X10647 GE Refrigerator Grille Sensor
849BUMPER
856FZ SHELF TRACK
857WR17X12615 GE Refrigerator Housing Evaporator Bottom
858WR01X10051 GE 10-24 x 1" Phillips Head Tap
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894WR50X10035 GE Refrigerator Light Thermostat
1551WD2X295 GE Refrigerator Screw
8454WR38X10190 GE Refrigerator Edge Trim
