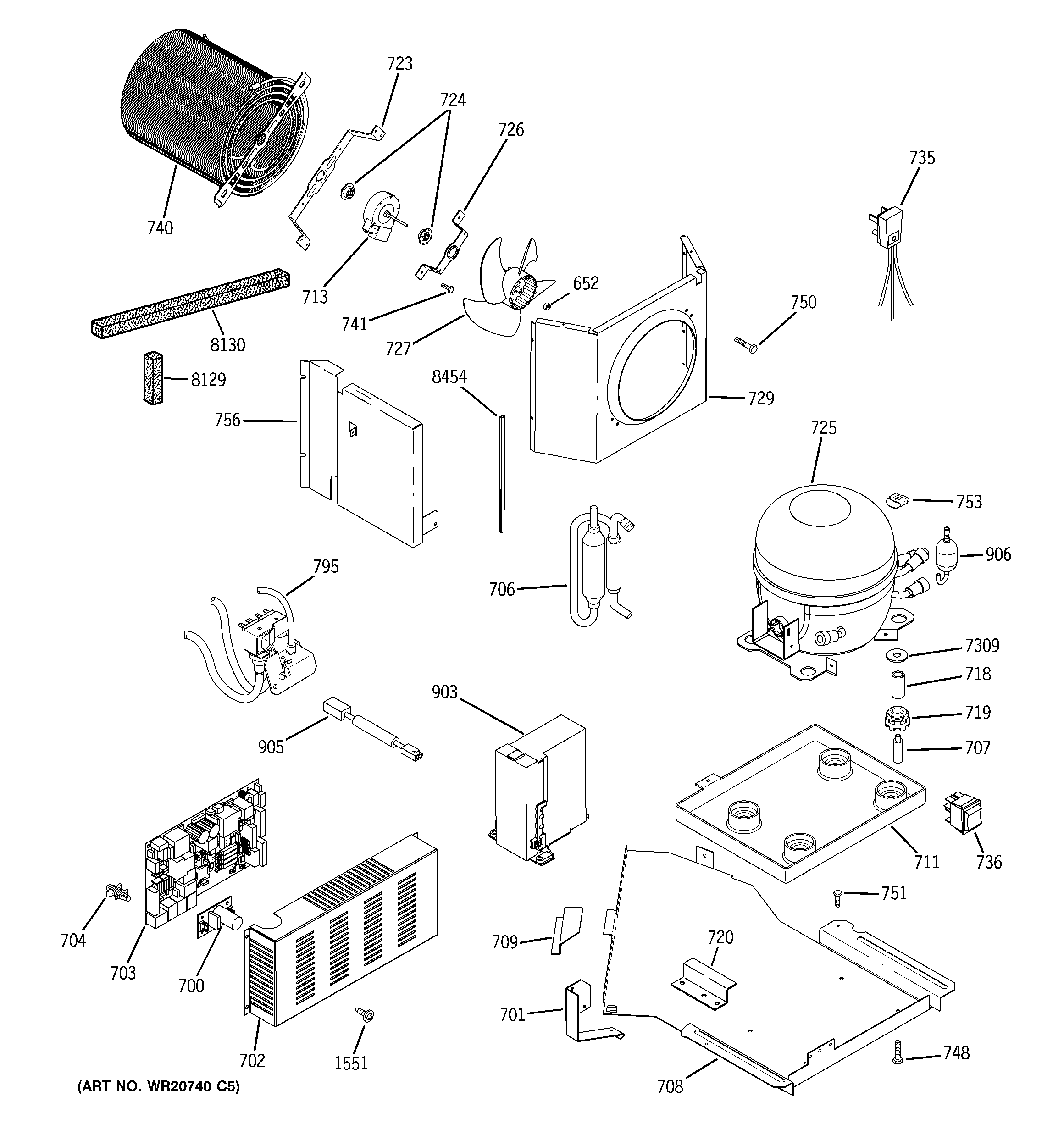

ZISP480DTASS SEALED SYSTEM & MOTHER BOARD

ZISP480DTASS SEALED SYSTEM & MOTHER BOARD

Written by

in

ZISP480DTASS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
652WR02X12149 GE Refrigerator Ring
700POWER SUPPLY PCB
701WR02X12198 GE Refrigerator Bracket Water Valve
702GEN WR02X12579
703WR55X11070 GE Refrigerator Main Control Board Assembly
704WR01X10301 GE Refrigerator Main Board Standoff
706WR86X25269 GE Refrigerator R134 Dryer
707WR1X1779 GE Refrigerator Stud Mounting Compressor
708GEN WR17X10687
709WR02X12569 GE Bracket System Pan
711WR17X11924 GE Refrigerator Stainless Steel Vaporizer Pan Kit
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
718WR01X10305 GE Refrigerator Steel Collar
719WR02X22869 GE Refrigerator Grommet
720WR02X11221 GE Refrigerator Retainer Pan System
723WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
724WR02X10520 GE Refrigerator Fan Motor Grommet
725COMPRESSOR VCC3 REPL. KI
726WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR23X10300 GE Refrigerator Power Cord Assembly
736WR49X10070 GE Refrigerator Master Light SW. Kit
740WR84X10022 GE Refrigerator Condenser Replacement Kit
741WZ5X158D GE Screw Package of 12
748GEN WH02X0940
750WR1X1826 GE Refrigerator Screw
751WR01X10302 GE Bolt 1/4-20 x 1.5"
753WR01X10044 GE Refrigerator 1/4-20 Hex Nut
756WR17X12529 GE Left Baffle
795WR57X33326 GE Refrigerator Water Inlet Valve
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
905WR23X10605 GE Communication Harness
906WR86X10038 GE Refrigerator Accumulator
1551WD2X295 GE Refrigerator Screw
7309WR01X10308 GE Flat Washer 3/8" x 7/8"
8129GEN WR14X10042
8130WR14X10043 GE Top Foam Baffle
8454WR38X10190 GE Refrigerator Edge Trim
