ZISP480DTBSS CASE PARTS

ZISP480DTBSS CASE PARTS

Written by

in

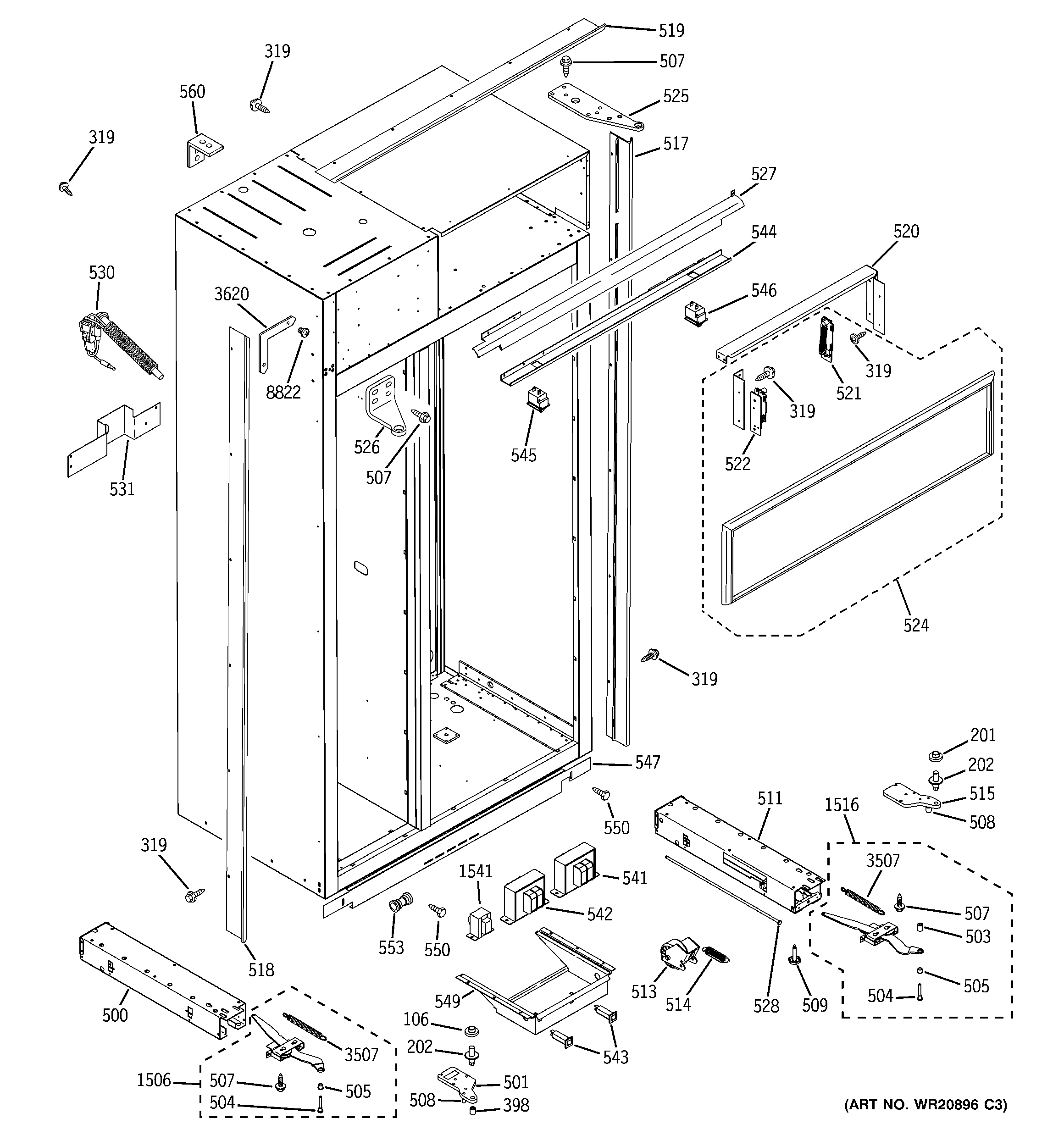

ZISP480DTBSS CASE PARTS

Products

PositionProduct
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
201WR02X10953 GE Refrigerator Bushing Hinge Bottom
202WR13X10239 GE Refrigerator Lower Hinge Pin Adjuster
319WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
398WR02X11231 GE Refrigerator Door Closure Spacer
500WR13X30112 GE Refrigerator Left Hand Base Channel
501WR13X10241 GE Refrigerator Lower SXS Hinge Case
503SPACER
504WR02X11207 GE Refrigerator Shoulder Bolt
505WR02X10951 GE Refrigerator Bushing Arm Nylon
507WR01X10177 GE Refrigerator Hinge Screw Door Bottom
508WR02X11209 GE Refrigerator Shear Pin
509LEVELING LEG
511WR13X30113 GE Refrigerator Right HandBase Channel
514WR02X11233 GE Wheel Spring
515WR13X23372 GE Refrigerator Bottom Case Hinge
517WR17X12831 GE Refrigerator Trim Case Right Hand Side
518WR17X11181 GE Refrigerator Case Trim
519GEN WR17X11352
520GEN WR13X10243
521WR13X10410 GE Refrigerator Grille Hinge Left Hand
522WR13X10411 GE Grill Right Hinge
524WR74X10346 GE Grill Assembly
525WR13X10656 GE Refrigerator Upper Hinge
526WR13X10246 GE Refrigerator Hinge SXS Case Upper
527GEN WR74X10102
528WR01X10256 GE Refrigerator Base Shaft
530WR49X10093 GE Refrigerator Fill Tube Kit
531WR02X12853 GE Refrigerator Fill Tube Cover Dispenser
541WR62X10029 GE Refrigerator Transformer
542WR62X10030 GE Refrigerator Light Transformer
543WR23X10269 GE Refrigerator 2 AMP Fuse
544GEN WR17X11183
545WR23X427 GE Refrigerator Freezer Light Switch
546WR23X37285 GE Light Switch
547WR74X10189 GE Refrigerator Stainless Steel Toekick
549TRANSFORMER TRAY
550WR01X10065 GE Screw
553WR02X24203 GE Refrigerator Connector Water Line
560WR01X10825 GE Refrigerator Anti-Tip Bracket
1506WR02X11208 GE Refrigerator Link Accelerator D02
1516WR02X11211 GE Refrigerator Link Actuator D02
1541WR62X26946 GE Refrigerator LED Transformer
3507WR02X12948 SPRING CLOSURE
3620WR02X11256 GE Refrigerator Top Case Trim Bracket
8822WH2X1211 GE Screw
