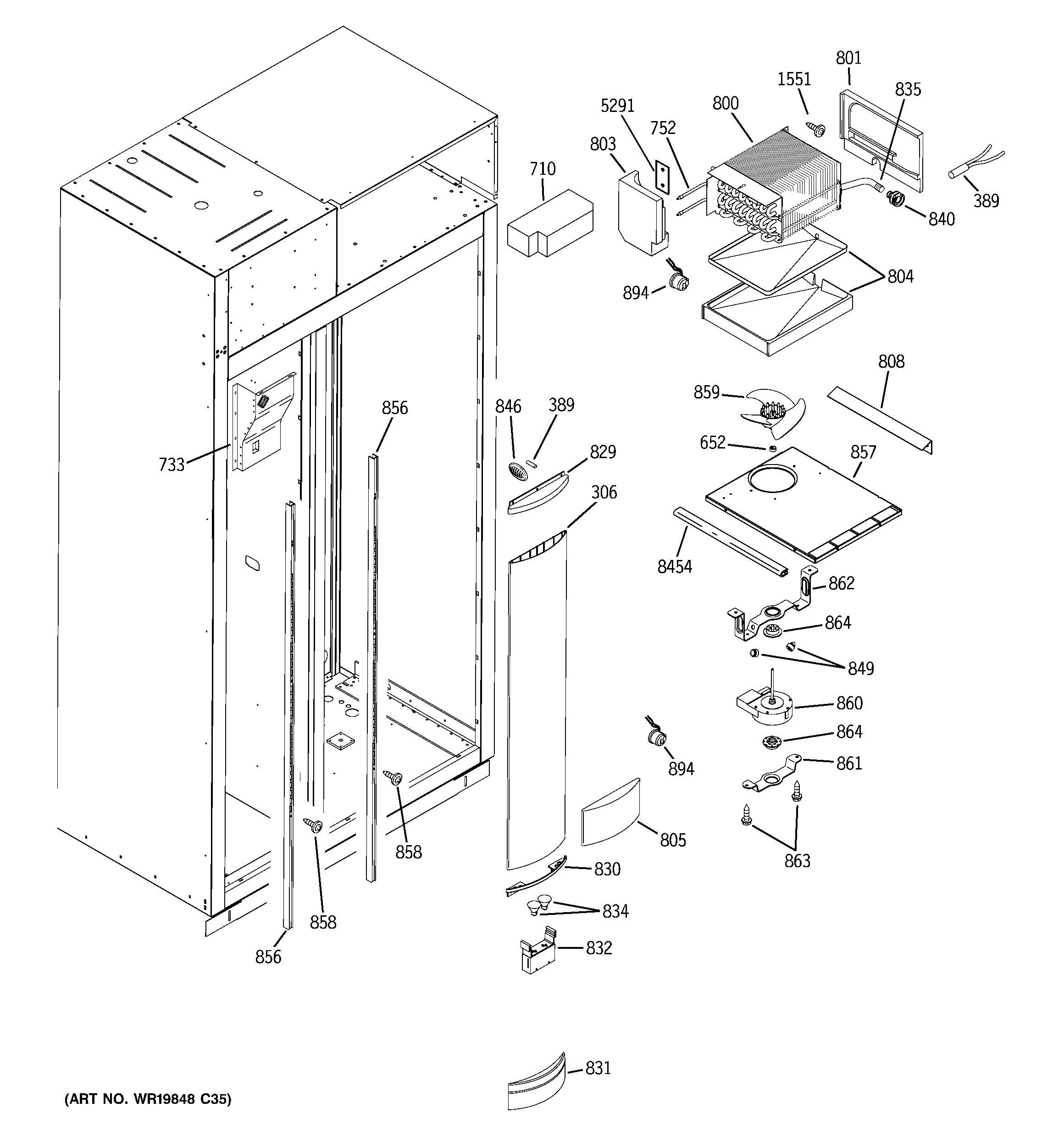

ZISP480DTBSS FREEZER SECTION

ZISP480DTBSS FREEZER SECTION

Written by

in

ZISP480DTBSS FREEZER SECTION

Products

PositionProduct
306LIGHT COLUMN SXS FF/FZ
389WR55X10025 GE Refrigerator Temperature Sensor
652WR02X12149 GE Refrigerator Ring
710WR17X11187 GE Refrigerator Foam Block Evaporator
733DUCT REAR ASM 48 DISP
752WR51X322 GE Refrigerator Defrost Heater
800WR85X10039 GE Refrigerator Evaporator Assembly
801FF RETURN AIR BAFFLE
803FOAM BLOCK
804WR17X29775 GE Refrigerator Drain Pan and Heater
805REFLECTIVE FILM FF
808BRACKET QC DUCT
829ENDCAP LIGHT COLUMN FZ
830ENDCAP LIGHT COLUMN BTM
831BULB HOUSING COVER
832WR02X11565 GE Refrigerator Bulb Housing Assembly
834WR02X11183 GE Refrigerator Halogen Bulb Light
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
846WR02X10647 GE Refrigerator Grille Sensor
849BUMPER
856FZ SHELF TRACK
857WR17X12615 GE Refrigerator Housing Evaporator Bottom
858WR01X10051 GE 10-24 x 1" Phillips Head Tap
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894WR50X10035 GE Refrigerator Light Thermostat
1551WR1X5645 GE Refrigerator Screw
5291WR2X8619 GE Refrigerator HTR Bracket
8454WR38X10190 GE Refrigerator Edge Trim
