ZISS360DNKSS FREEZER DOOR

ZISS360DNKSS FREEZER DOOR

Written by

in

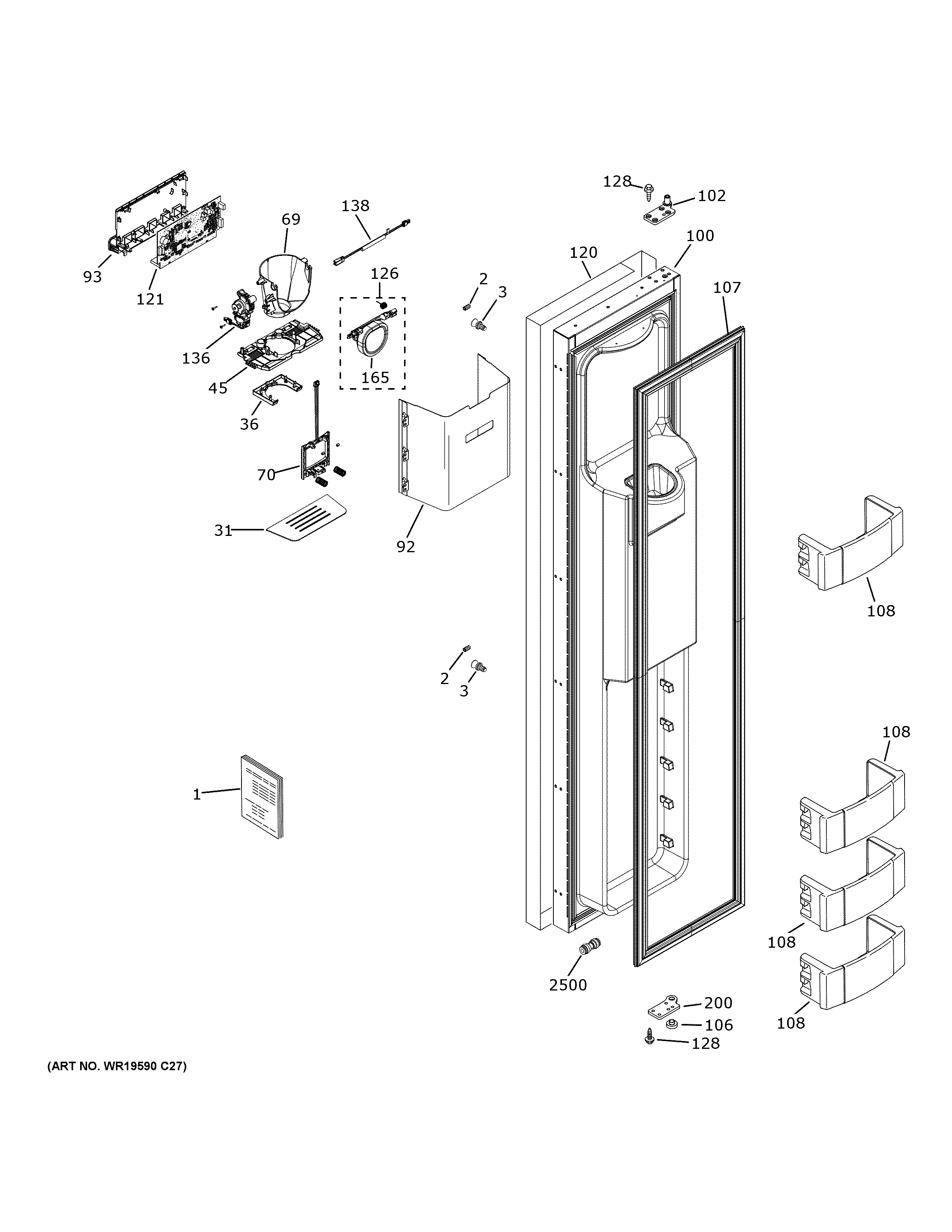

ZISS360DNKSS FREEZER DOOR

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
2WR01X27135 GE Refrigerator Screw Set
3WR01X11007 GE Refrigerator Fastener Door Handle
31DISPENSER DRIP TRAY MONOGRAM
36WR17X32640 GE Funnel Cover
45WR02X32708 GE Ice Funnel Bracket
69WR17X32683 GE Ice Maker Funnel
70WR17X35185 GE Refrigerator
92WR17X37547 GE Dispenser Recess
93WR17X32667 GE Refrigerator Monogram Capacitive Touch Display
100WR78X41585 GE Freezer 36/42 Dispenser Door
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25605 GE Refrigerator Door Bin Assembly 36/42
120WR78X32692 GE Refrigerator Stainless Steel Freezer Dispenser
121WR17X32712 GE Dispenser Control Board
126WR17X32659 GE Refrigerator Duct Door
128WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
136WR60X33005 GE Refrigerator Motor Duct Door
138WR55X32726 GE Duct Door Diode Harness
165WR17X32658 GE Refrigerator Duct Door
200WR13X10657 GE Refrigerator Bottom Door Hinge
2500WR02X32986 GE Refrigerator 5/16" Coupler with Check Valve
