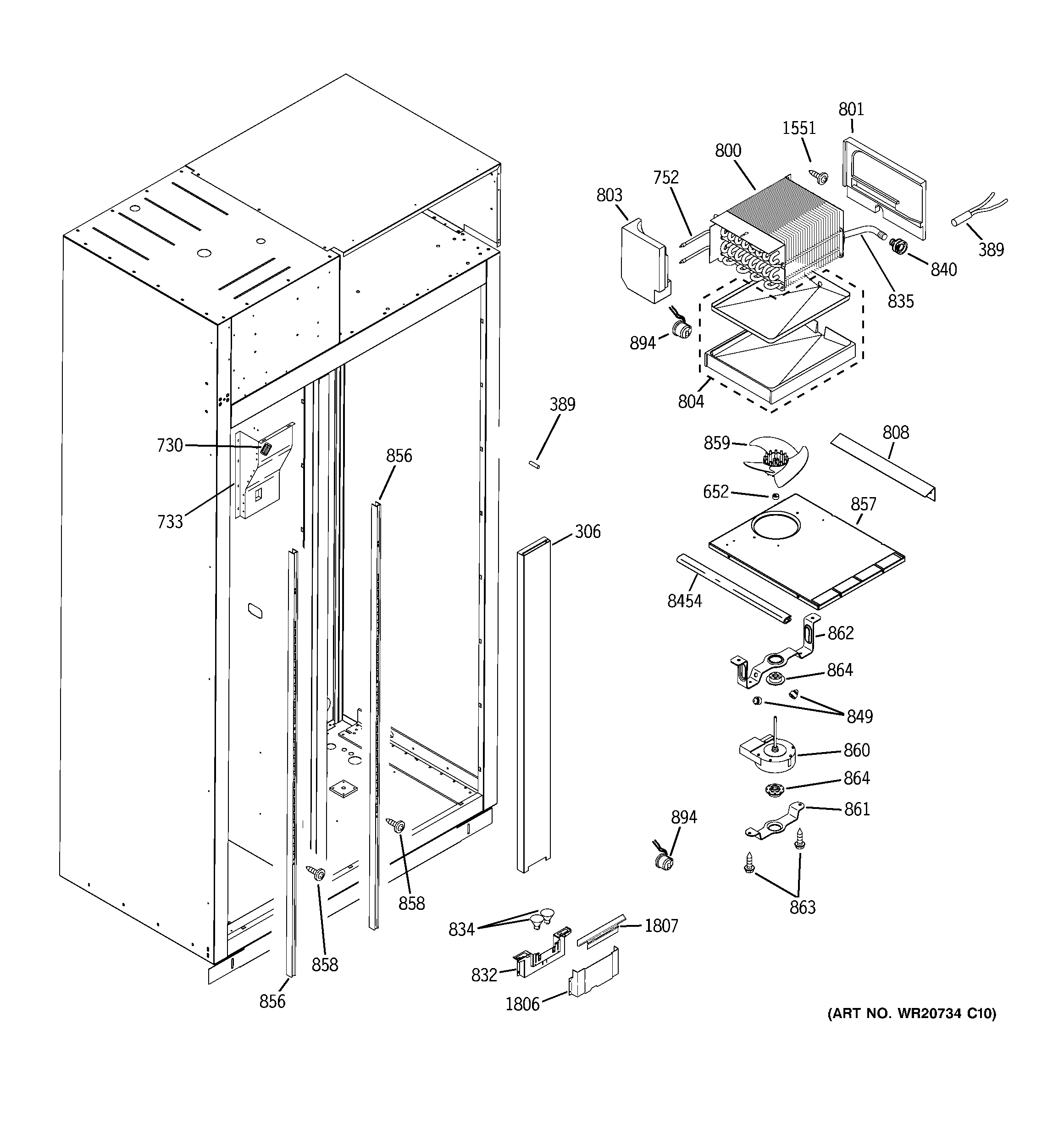

ZISS360DXASS FREEZER SECTION

ZISS360DXASS FREEZER SECTION

Written by

in

ZISS360DXASS FREEZER SECTION

Products

PositionProduct
306LIGHT COLUMN ASM 48FZ
389WR55X10025 GE Refrigerator Temperature Sensor
652WR02X12149 GE Refrigerator Ring
730GEN WR02X8629
733DUCT CVR FZ 36/42 D
752WR51X10111 GE Refrigerator Defrost Heater
800WR85X10116 GE Refrigerator SXS Evaporator
801WR17X12528 GE Refrigerator Return Baffle
803WR02X12856 GE Refrigerator Foam Block Evaporator
804WR17X29775 GE Refrigerator Drain Pan and Heater
808BRACKET QC DUCT
832BULB HOUSING ASM 36/42FZ
834WR02X11183 GE Refrigerator Halogen Bulb Light
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
840WR02X12062 GE Refrigerator Flapper & Valve Assembly
849BUMPER
856TRACK FZ SHELF
857WR17X12615 GE Refrigerator Housing Evaporator Bottom
858SCR 10-24 F PNP 1.25S
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894WR50X10092 GE Refrigerator Light Thermostat
1551WD2X295 GE Refrigerator Screw
1806COVER HARNESS SXS
1807CLIP CAP END
8454WR38X10190 GE Refrigerator Edge Trim
