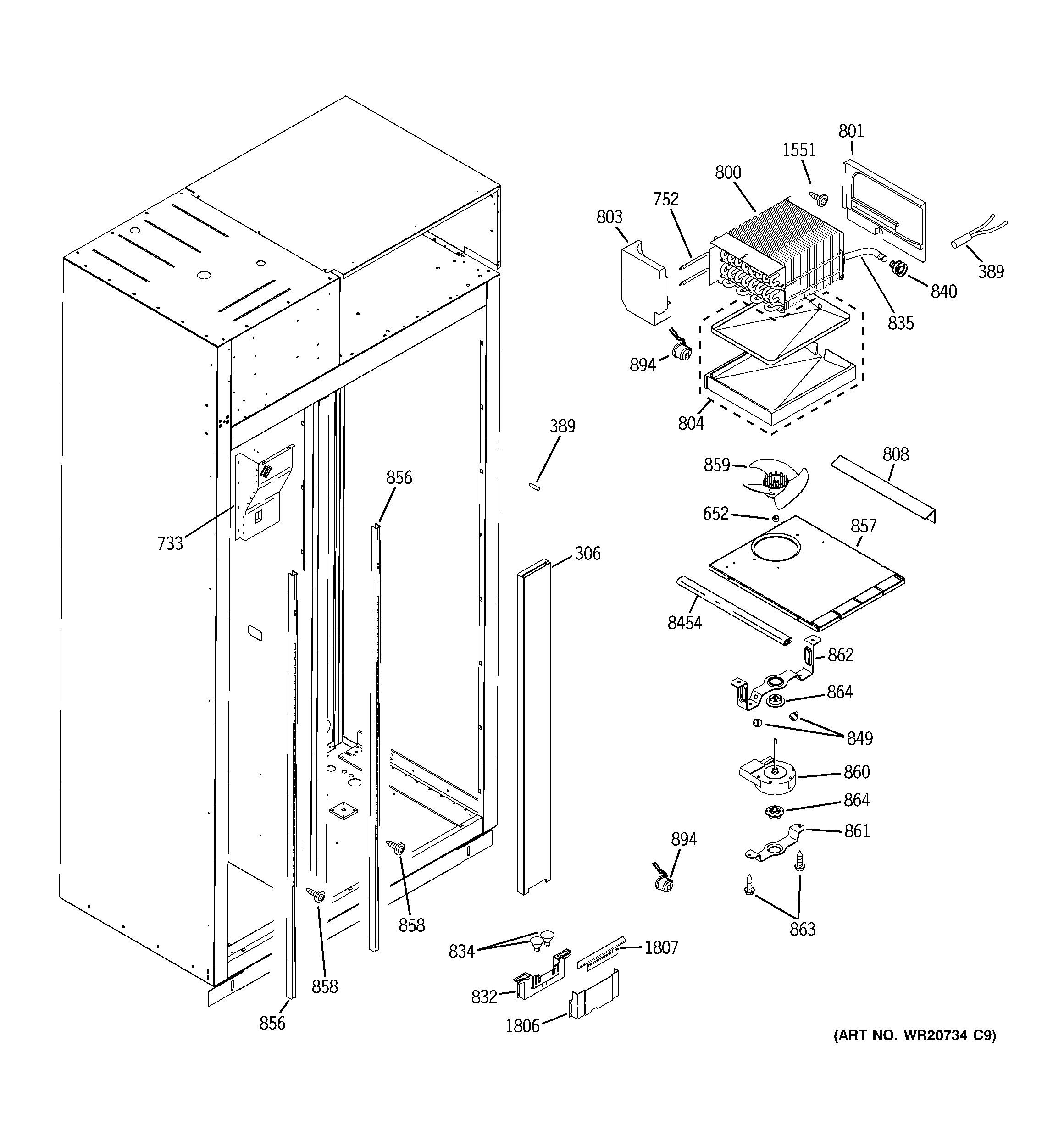

ZISS360DXBSS FREEZER SECTION

ZISS360DXBSS FREEZER SECTION

Written by

in

ZISS360DXBSS FREEZER SECTION

Products

PositionProduct
306LIGHT COLUMN ASM 36/42FZ
389WR55X10025 GE Refrigerator Temperature Sensor
652WR02X12149 GE Refrigerator Ring
733DUCT CVR FZ 36/42 D
752WR51X10111 GE Refrigerator Defrost Heater
800WR85X10116 GE Refrigerator SXS Evaporator
801WR17X12528 GE Refrigerator Return Baffle
803WR02X12856 GE Refrigerator Foam Block Evaporator
804WR17X29775 GE Refrigerator Drain Pan and Heater
808BRACKET QC DUCT
832BULB HOUSING ASM 36/42FZ
834WR02X11183 GE Refrigerator Halogen Bulb Light
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
849BUMPER
856TRACK FZ SHELF
858SCR 10-24 F PNP 1.25S
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894WR50X10092 GE Refrigerator Light Thermostat
1551WD2X295 GE Refrigerator Screw
1806CLIP CAP END
1807GEN WR02X13364
8454WR38X10190 GE Refrigerator Edge Trim
