ZISS360DXBSS FRESH FOOD SECTION

ZISS360DXBSS FRESH FOOD SECTION

Written by

in

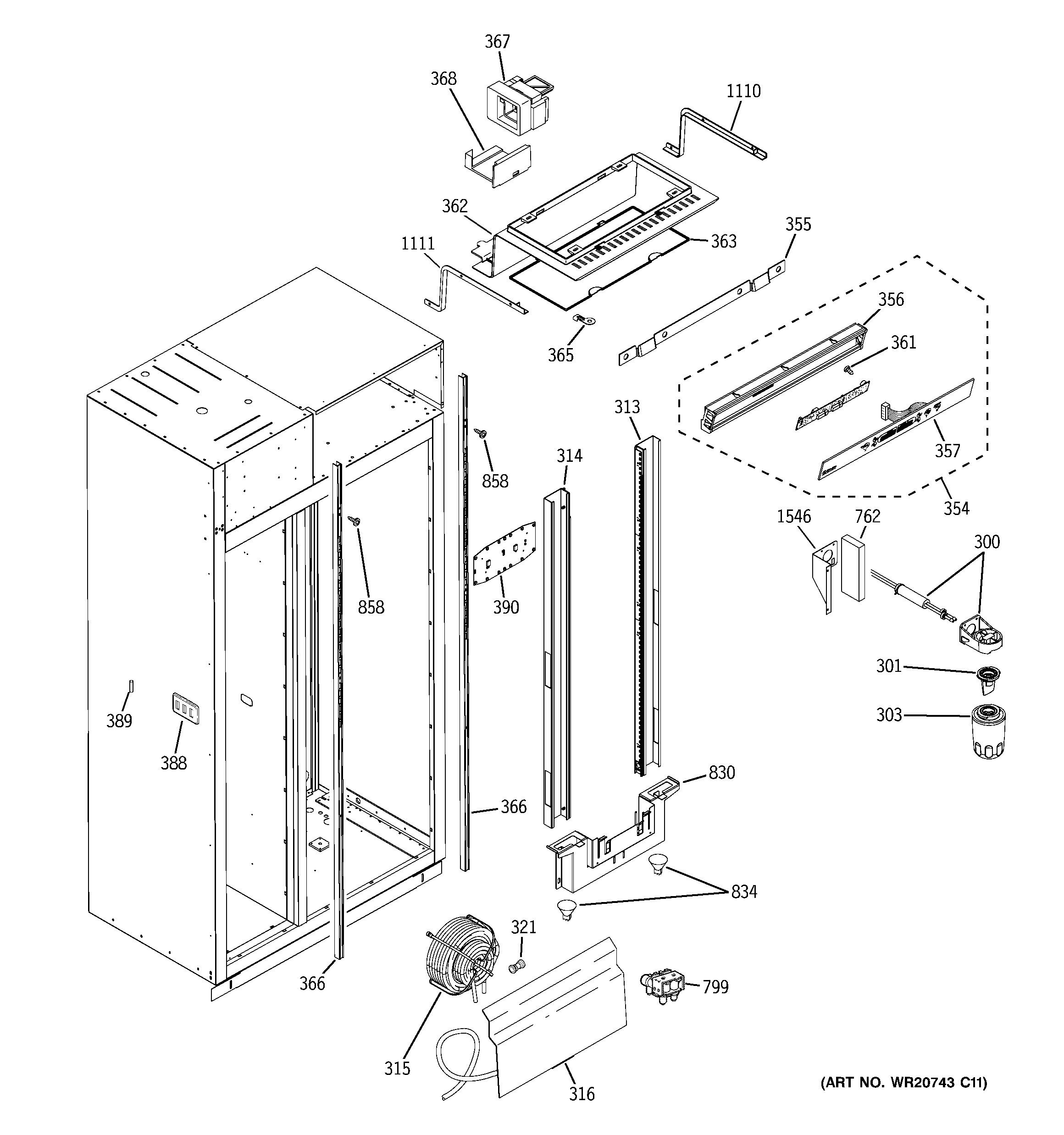

ZISS360DXBSS FRESH FOOD SECTION

Products

PositionProduct
300MWF MANIFOLD
301WR17X22070 GE Water Filter Bypass Plug
303MWFP GE Replacement Water Filter Pureline for Refrigerator
313GEN WR17X12532
314GEN WR02X13317
315WR17X12702 GE Refrigerator Water Tank Assembly
316WR02X13165 GE Water Tank Cover
355HMI HOLDER TAB 36
356WR74X10250 GE Refrigerator Housing Control
357WR55X10849 GE Refrigerator HMI Assembly
3614-40 X 1/4 PH SMS
362BRACKET CEILING
363WR02X12834 GE Refrigerator Ceiling Light Shield
365WR01X22266 GE Refrigerator Latch Light White (Pair)
366TRACK FF SHELF
367WR02X12832 GE Refrigerator Damper Foam Assembly 36
368KIT DAMPER MONOGRAM
388WR02X12839 GE Refrigerator Grille Sensor
389WR55X10025 GE Refrigerator Temperature Sensor
390TOP LED BOARD
762WR14X10296 GE Foam Strip Front
799WR57X10024 GE Water Inlet Valve
830BULB HOUSING ASM 36FF
834WR02X11183 GE Refrigerator Halogen Bulb Light
858SCR 10-24 F PNP 1.25S
1110WR01X10927 GE Right Hand Ceiling Trim Bracket
1111WR01X10928 GE Ceiling Trim Bracket LH
1546WR02X29777 GE Water Filter Bracket
