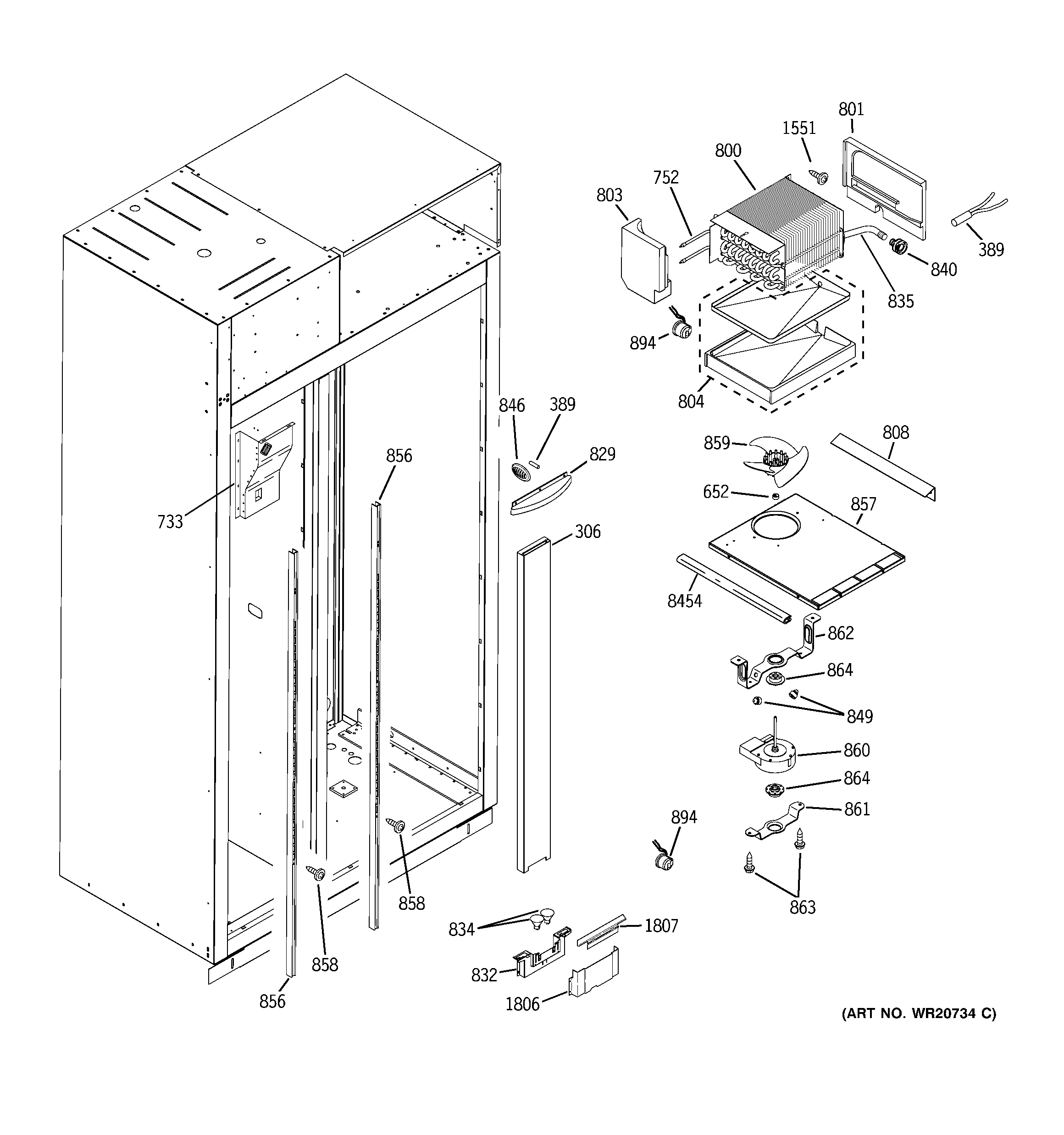

ZISS360NXASS FREEZER SECTION

Written by

Products

Position	Product
306	LIGHT COLUMN ASM 36/42FZ
389	WR55X10025 GE Refrigerator Temperature Sensor
652	WR02X12149 GE Refrigerator Ring
733	DUCT CVR FZ 36/42 ND
752	WR51X10111 GE Refrigerator Defrost Heater
800	WR85X10116 GE Refrigerator SXS Evaporator
801	WR17X12528 GE Refrigerator Return Baffle
803	WR02X12856 GE Refrigerator Foam Block Evaporator
804	WR17X29775 GE Refrigerator Drain Pan and Heater
808	BRACKET QC DUCT
832	BULB HOUSING ASM 36FF
834	WR02X11183 GE Refrigerator Halogen Bulb Light
835	WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
840	WR02X12062 GE Refrigerator Flapper & Valve Assembly
846	WR02X12839 GE Refrigerator Grille Sensor
849	BUMPER
856	TRACK FZ SHELF
857	WR17X12615 GE Refrigerator Housing Evaporator Bottom
858	SCR 10-24 F PNP 1.25S
859	EVAPORATOR FAN BLADE
860	WR60X10185 GE Refrigerator Evaporator Fan Motor
861	WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862	WR02X10653 GE Refrigerator Orifice Fan Bracket
863	WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864	WR02X12008 GE Refrigerator Evaporator Fan Grommet
894	WR50X10092 GE Refrigerator Light Thermostat
1806	CLIP CAP END
1807	GEN WR02X13364
8454	WR38X10190 GE Refrigerator Edge Trim
