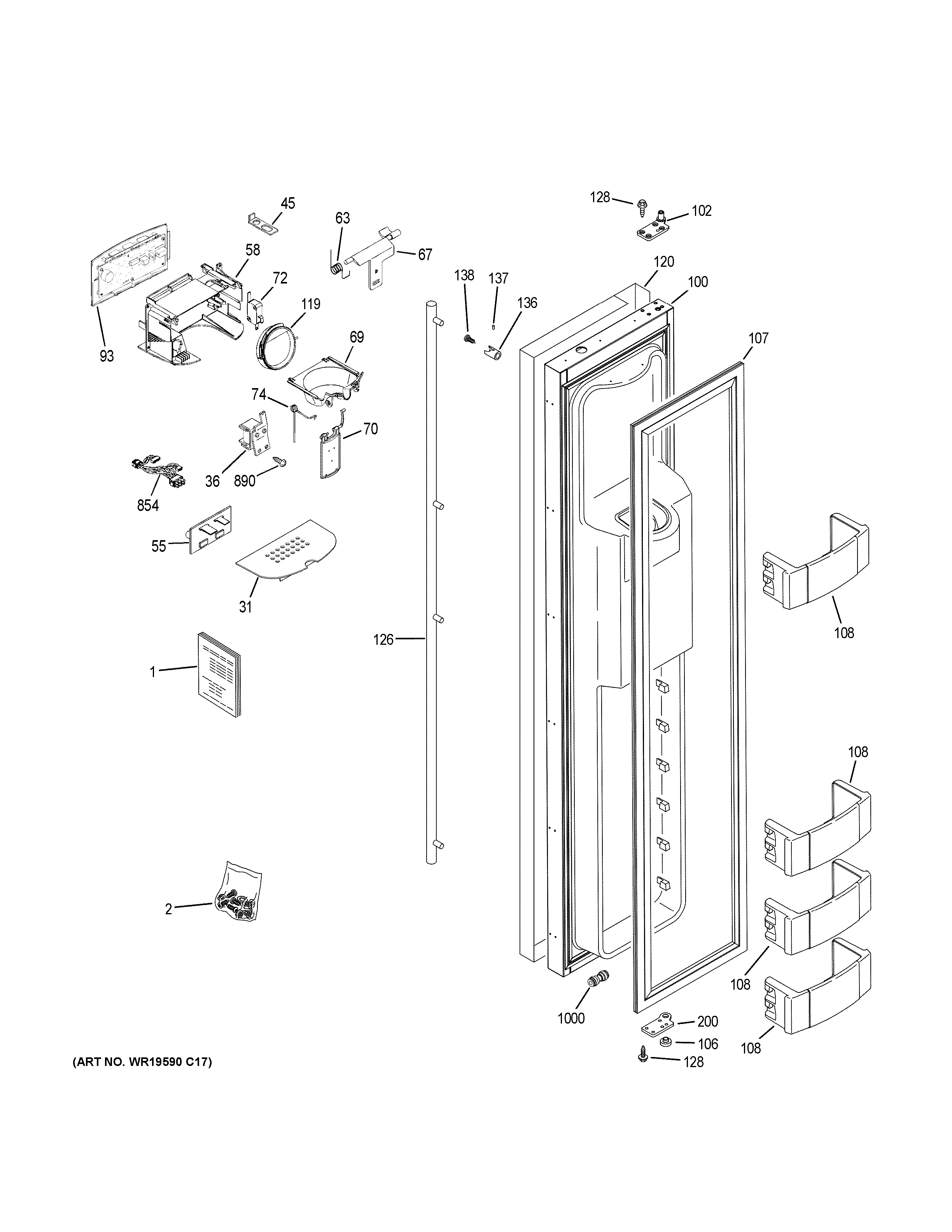

ZISS420DKBSS FREEZER DOOR

Products

Position	Product
1	PM INSTALL INSTRUCTIONS
1	PM MINI MANUAL
2	WR01X10304 GE Refrigerator Hardware Pack
31	WR17X23167 GE Refrigerator Grille Drip Dispenser
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X12771 GE Refrigerator Housing Shield Dispenser
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	WR17X23460 GE Refrigerator Dispenser Paddle
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
93	WR55X23461 GE Refrigerator Black Glass Touch Dispenser
100	WR78X30087 GE Refrigerator Freezer Door 36/42"
102	WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106	WR01X10297 GE Refrigerator Bottom Hinge Bushing
107	GASKET AND LABEL ASM SXS
108	WR71X25605 GE Refrigerator Door Bin Assembly 36/42
119	WR17X11653 GE Refrigerator Ice Door Flap Assembly
120	WR78X27008 GE Refrigerator Euro Dispenser Door Wrap
126	WR12X27601 GE Refrigerator Euro Side-by-Side Handle Kit
128	WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
136	WR12X27598 GE Refrigerator Euro Standoff Kit
137	WR01X10026 GE Refrigerator Screw Set
138	WR01X10057 GE Refrigerator Screw
200	WR13X10657 GE Refrigerator Bottom Door Hinge
854	HARNESS RECESS DISPENSER
890	WD2X295 GE Refrigerator Screw
1000	WR02X24203 GE Refrigerator Connector Water Line
