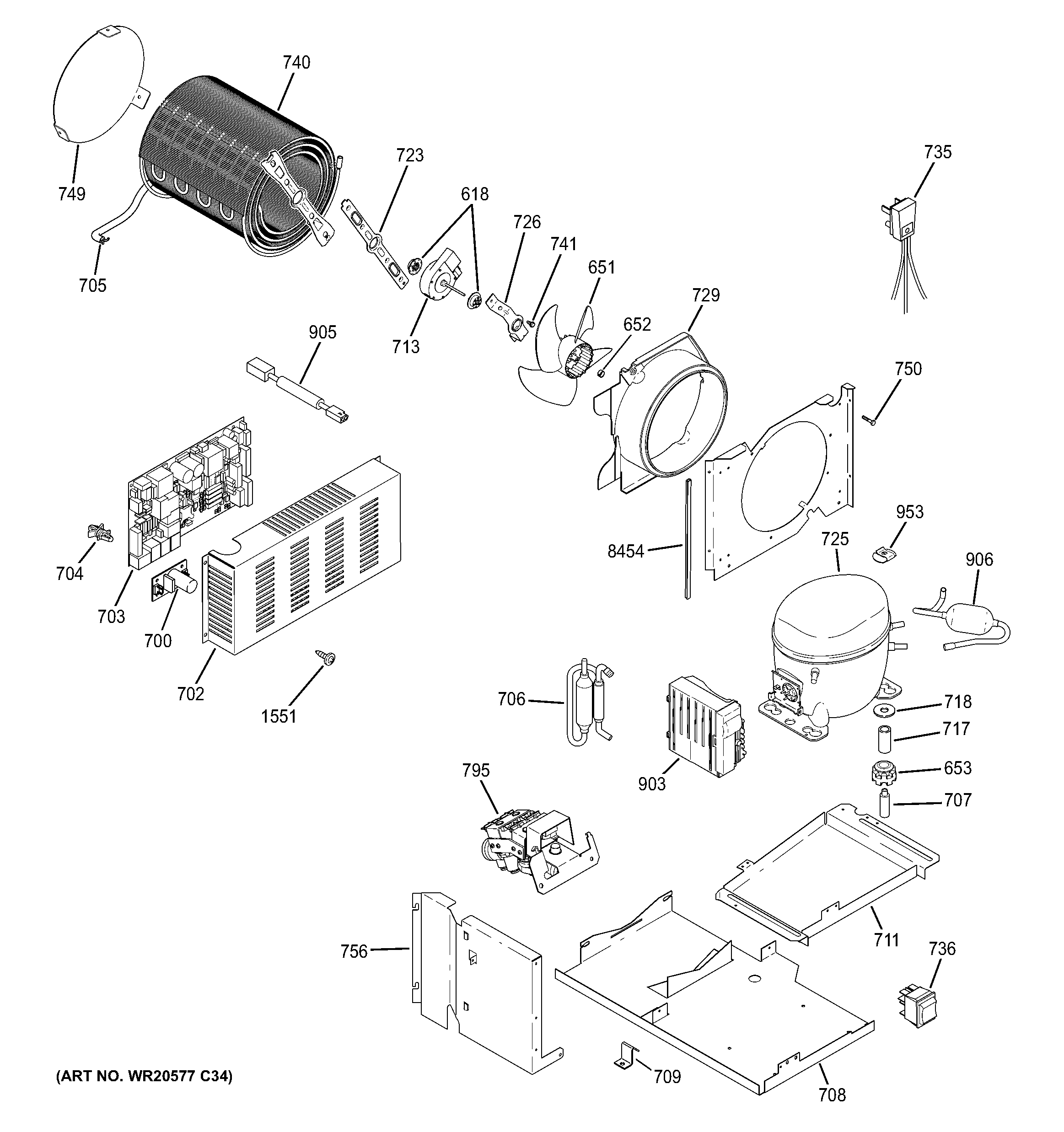

ZISS420DXASS SEALED SYSTEM & MOTHER BOARD

ZISS420DXASS SEALED SYSTEM & MOTHER BOARD

Written by

in

ZISS420DXASS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
618WR02X10520 GE Refrigerator Fan Motor Grommet
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
653WR02X22869 GE Refrigerator Grommet
700POWER SUPPLY PCB
702WR02X12829 GE Sxs Main Cover Board
703WR55X11070 GE Refrigerator Main Control Board Assembly
704WR01X10301 GE Refrigerator Main Board Standoff
705CAP SUCTION TUBE ASM
706WR86X25269 GE Refrigerator R134 Dryer
707STUD COMPRESSOR MTG
708WR17X12348 GE System Pan
709WR02X12569 GE Bracket System Pan
711WR17X11924 GE Refrigerator Stainless Steel Vaporizer Pan Kit
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
717WR01X10308 GE Flat Washer 3/8" x 7/8"
718WR01X10305 GE Refrigerator Steel Collar
723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725COMPRESSOR VCC3 REPL. KI
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR23X10300 GE Refrigerator Power Cord Assembly
736WR49X10070 GE Refrigerator Master Light SW. Kit
740WR84X10022 GE Refrigerator Condenser Replacement Kit
741WZ5X158D GE Screw Package of 12
756WR17X12529 GE Left Baffle
795BRACKET AND VALVE ASM
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
905WR23X29493 GE Ground Harness
906WR86X10038 GE Refrigerator Accumulator
953WR01X10044 GE Refrigerator 1/4-20 Hex Nut
8454WR38X10190 GE Refrigerator Edge Trim
