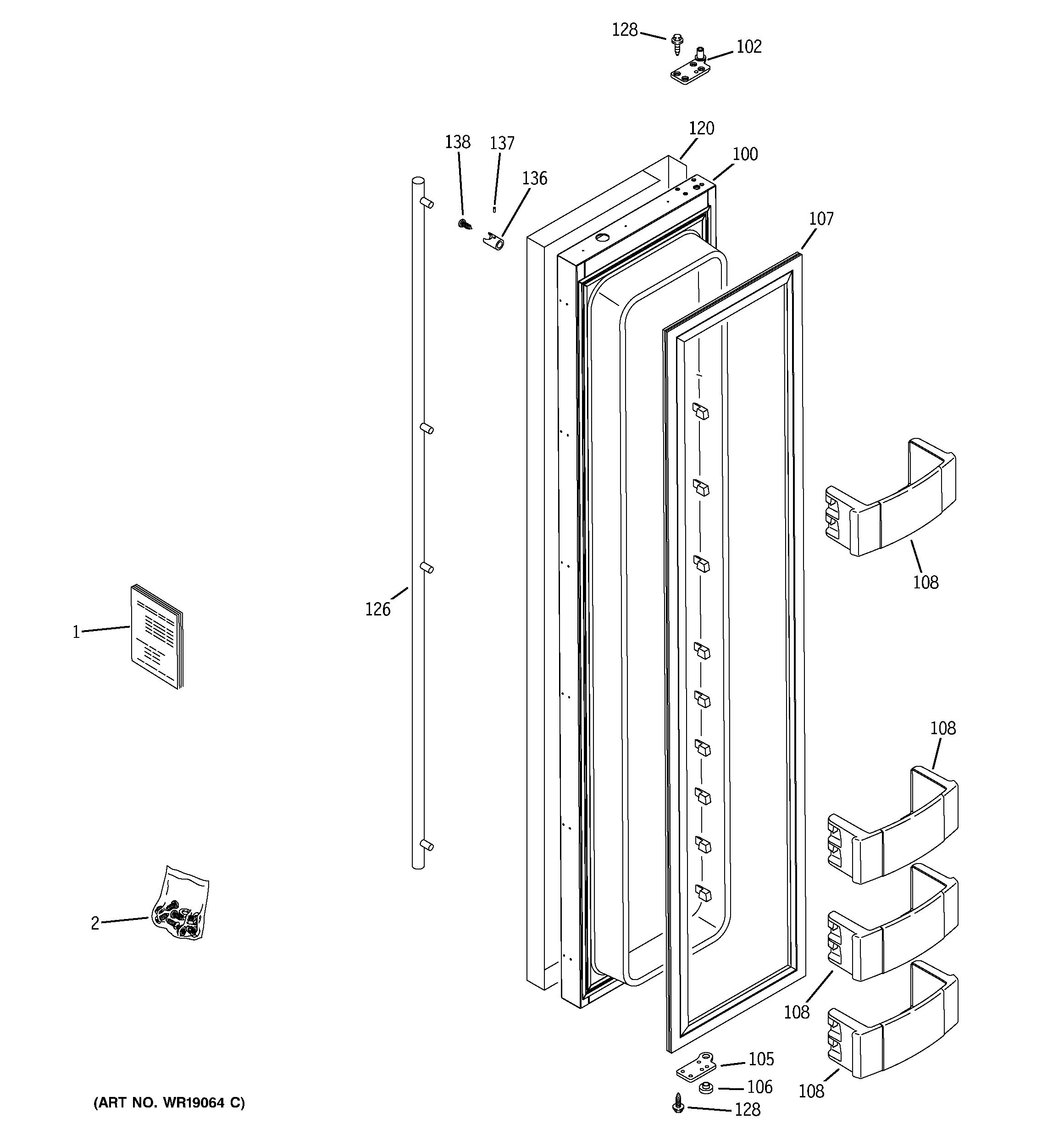

ZISS420NRKSS FREEZER DOOR

ZISS420NRKSS FREEZER DOOR

Written by

in

ZISS420NRKSS FREEZER DOOR

Products

PositionProduct
1GEN WR02X12571
1WR23X10607 GE Refrigerator SXS HMI Harness
1WR49X10021 GE Refrigerator Defrost Pan Heater
1WR23X10267 GE Refrigerator QC Harness
1WR17X12348 GE System Pan
1WR02X12568 GE Hold Down Bracket
1WR02X12569 GE Bracket System Pan
1THERMOSTAT CUTT-OFF
1WR02X11202 GE Refrigerator Hockey Puck with Lamp & HARN
2WR01X10304 GE Refrigerator Hardware Pack
100WR78X23592 GE Refrigerator 42" ND FI Pack Door Assembly
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
105WR13X10250 GE Refrigerator Bottom Door Hinge
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25605 GE Refrigerator Door Bin Assembly 36/42
120WR78X12747 GE Refrigerator Wrap Assembly SXS Euro
126WR12X27601 GE Refrigerator Euro Side-by-Side Handle Kit
128WR1X1754D GE Refrigerator Screw Package
136WR12X27598 GE Refrigerator Euro Standoff Kit
137WR01X10026 GE Refrigerator Screw Set
138WR01X10057 GE Refrigerator Screw
