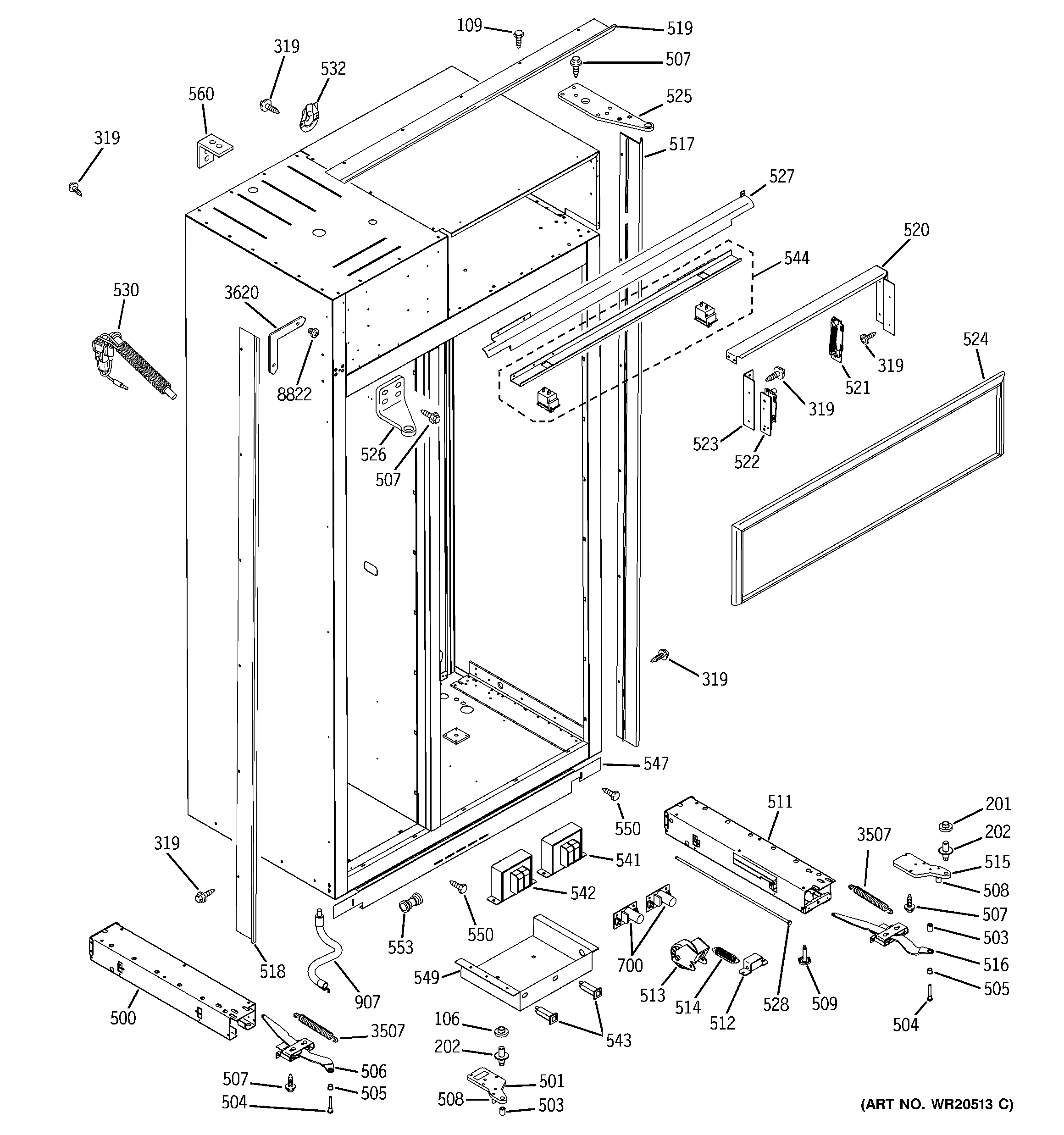

ZISS42GDXASS CASE PARTS

ZISS42GDXASS CASE PARTS

Written by

in

ZISS42GDXASS CASE PARTS

Products

PositionProduct
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
109WR01X10303 GE Refrigerator Handle Trim Screw
201WR02X10953 GE Refrigerator Bushing Hinge Bottom
202GEN WR02X8629
202WR13X10239 GE Refrigerator Lower Hinge Pin Adjuster
500WR13X30112 GE Refrigerator Left Hand Base Channel
501WR13X10241 GE Refrigerator Lower SXS Hinge Case
503SPACER
503WR02X11231 GE Refrigerator Door Closure Spacer
504WR02X11207 GE Refrigerator Shoulder Bolt
505WR02X10951 GE Refrigerator Bushing Arm Nylon
507WR01X10177 GE Refrigerator Hinge Screw Door Bottom
508WR02X11209 GE Refrigerator Shear Pin
509LEVELING LEG
511WR13X30113 GE Refrigerator Right HandBase Channel
514WR02X11233 GE Wheel Spring
515WR13X23372 GE Refrigerator Bottom Case Hinge
517WR17X12831 GE Refrigerator Trim Case Right Hand Side
519WR17X11353 GE Refrigerator Case Trim Top
523GEN WR13X10244
524GEN WR02X13090
525WR13X10656 GE Refrigerator Upper Hinge
527WR74X10112 GE Refrigerator Eyebrow Switch Cover
530WR49X10093 GE Refrigerator Fill Tube Kit
532WR02X12853 GE Refrigerator Fill Tube Cover Dispenser
541GEN WR62X10076
542GEN WR62X10077
543GEN WR01X10889
544GEN WR17X12727
549GEN WR17X12725
553WR02X24203 GE Refrigerator Connector Water Line
560WR01X10825 GE Refrigerator Anti-Tip Bracket
700POWER SUPPLY PCB
3507WR02X12948 SPRING CLOSURE
3620WR02X11256 GE Refrigerator Top Case Trim Bracket
8822WH2X1211 GE Screw
