ZISS42GDXASS FREEZER DOOR

ZISS42GDXASS FREEZER DOOR

Written by

in

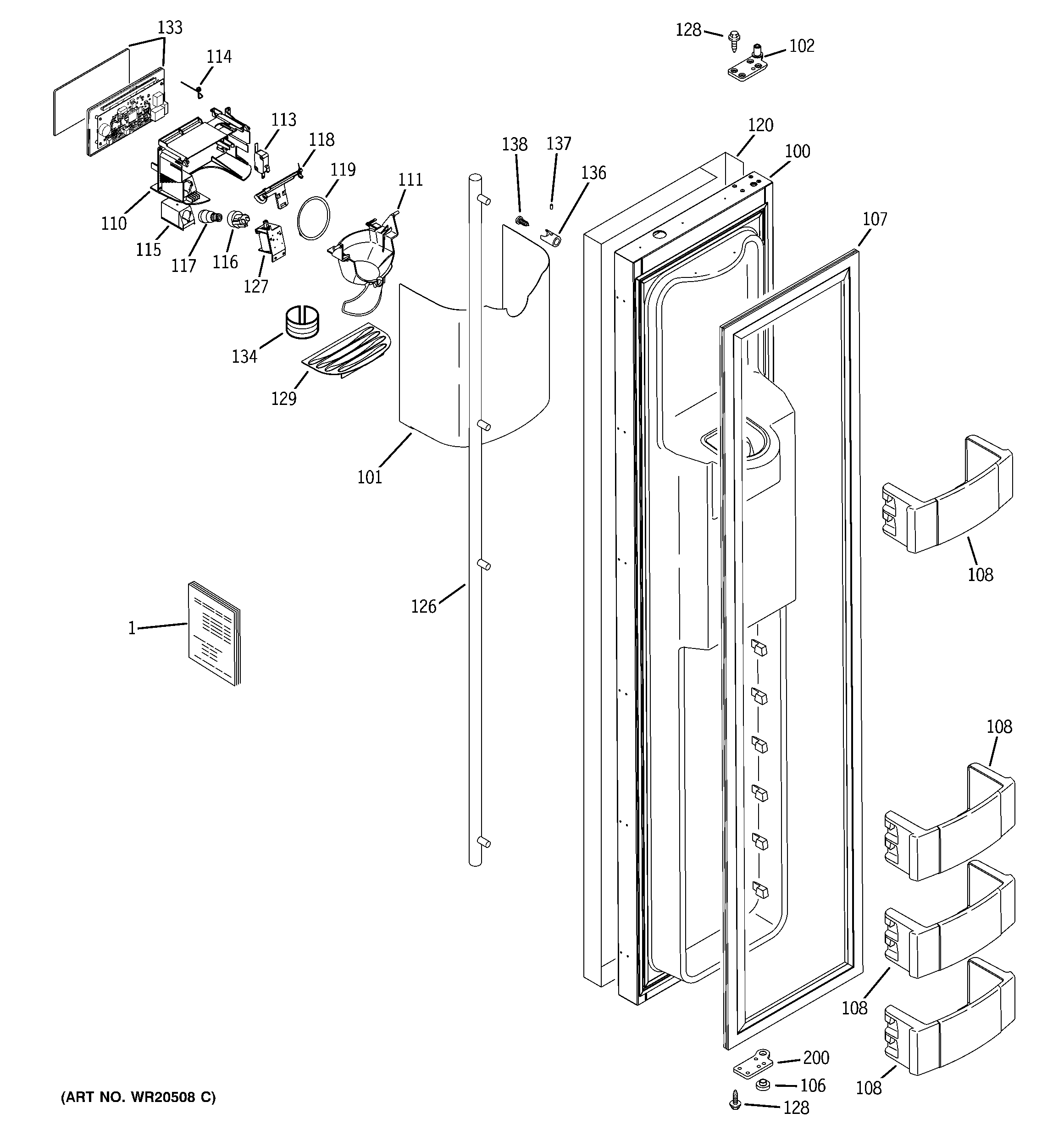

ZISS42GDXASS FREEZER DOOR

Products

PositionProduct
1GEN WR02X12868
1GEN WR02X12571
1WR02X12568 GE Hold Down Bracket
1WR02X12569 GE Bracket System Pan
100WR78X12196 GE Refrigerator Door Complete Service
101GEN WR17X12719
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25605 GE Refrigerator Door Bin Assembly 36/42
110WR17X11170 GE Refrigerator Housing Shield Dispenser
111WR17X11267 GE Refrigerator Ice Dispenser Funnel
113WR23X10783 GE Refrigerator Dispenser Micro Switch
114GEN WR02X10584
115WR02X10670 GE Refrigerator Reflector Light
116WR2X9561 GE Refrigerator Lamp Socket
117WR01X37886 GE Refrigerator Dispenser Light
118WR17X10706 GE Refrigerator Door Crank Recess
120GEN WR12X10955
127WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
129GEN WR17X12718
133WR55X23461 GE Refrigerator Black Glass Touch Dispenser
134WR01X10019 GE Refrigerator Screw 6-10 PL FLP 1/2 S
134WR49X10076 GE Refrigerator FUNL EXTN BK
136GEN WR02X10062
137WR01X10026 GE Refrigerator Screw Set
138WR01X10057 GE Refrigerator Screw
200WR13X10657 GE Refrigerator Bottom Door Hinge
