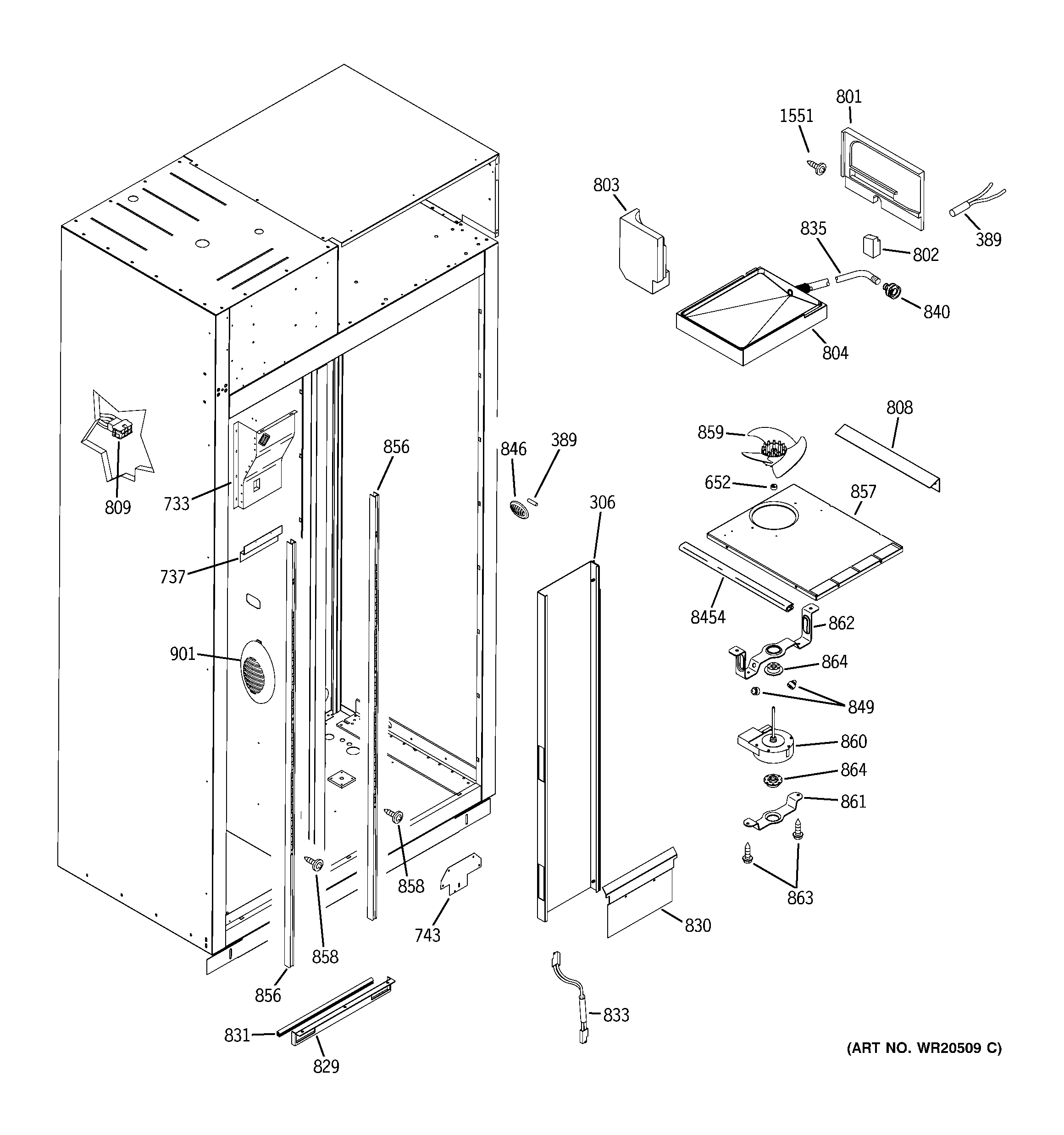

ZISS42GDXASS FREEZER SECTION

ZISS42GDXASS FREEZER SECTION

Written by

in

ZISS42GDXASS FREEZER SECTION

Products

PositionProduct
306GEN WR17X12720
652WR02X12149 GE Refrigerator Ring
733DUCT CVR FZ 36/42 D
737COVER DISP
801WR17X12528 GE Refrigerator Return Baffle
803WR02X12856 GE Refrigerator Foam Block Evaporator
804GEN WR17X12722
808BRACKET QC DUCT
8096 PIN CON AMP 1-480705-0
829TOP END CAP-36 & 42
830GEN WR17X12721
831GEN WR38X10442
833GEN WR23X10646
846WR02X10647 GE Refrigerator Grille Sensor
849BUMPER
856TRACK FZ SHELF
858SCR 10-24 F PNP 1.25S
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X10322 GE Refrigerator Dust Cap B02
862GEN WB01X1178
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
8454WR38X10190 GE Refrigerator Edge Trim
