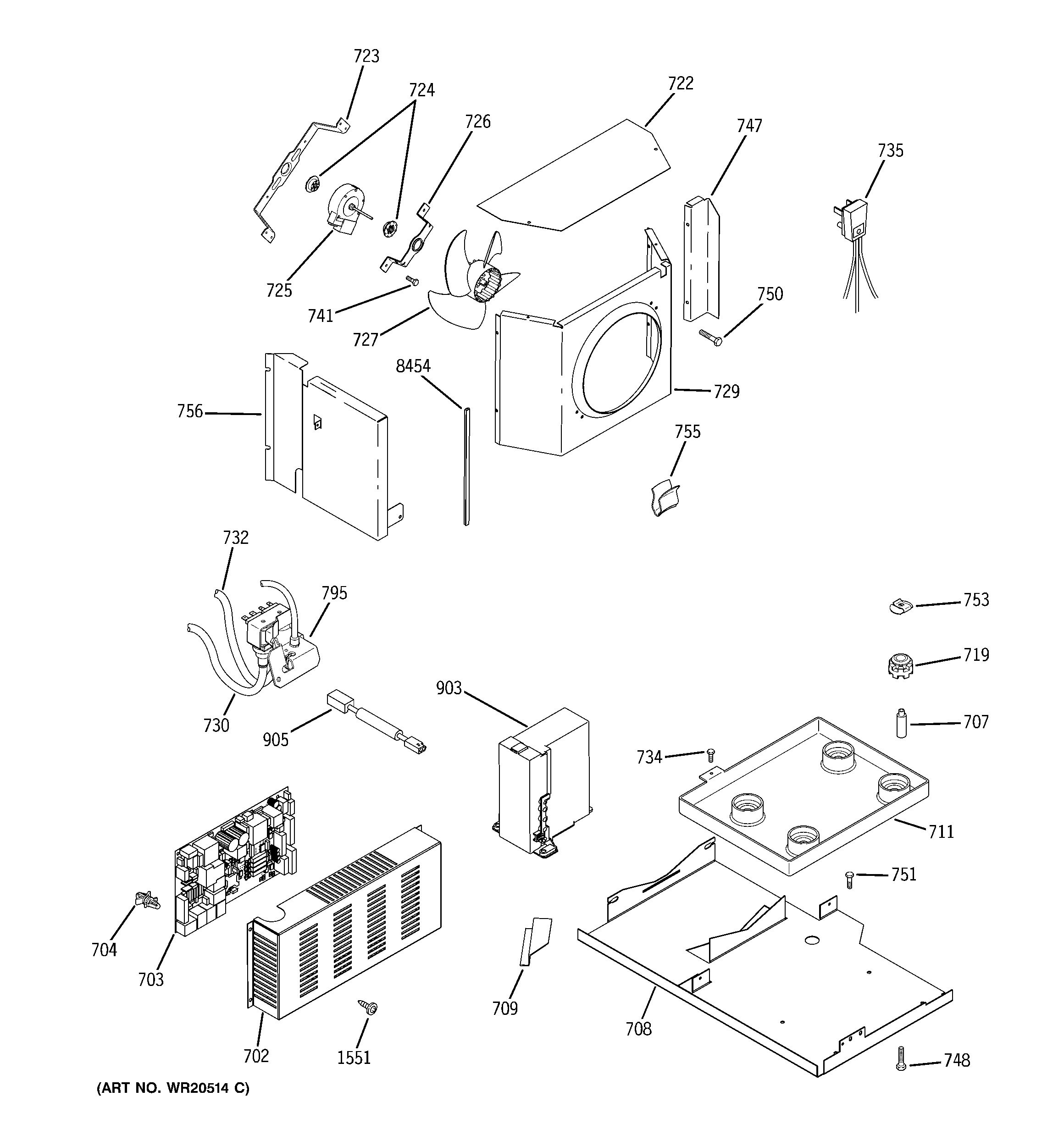

ZISS42GDXASS MACHINE COMPARTMENT

ZISS42GDXASS MACHINE COMPARTMENT

Written by

in

ZISS42GDXASS MACHINE COMPARTMENT

Products

PositionProduct
702GEN WR02X13131
703GEN WR55X10934
704WR01X10301 GE Refrigerator Main Board Standoff
707STUD COMPRESSOR MTG
708WR17X12348 GE System Pan
711WR17X11924 GE Refrigerator Stainless Steel Vaporizer Pan Kit
725WR60X10209 GE Refrigerator DC Condenser Fan Motor
726WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735GEN WR23X10655
741WZ5X158D GE Screw Package of 12
750WR1X1826 GE Refrigerator Screw
751WR01X10302 GE Bolt 1/4-20 x 1.5"
756WR17X12529 GE Left Baffle
795WR02X10370 GE Refrigerator Water Valve Bracket
795BRACKET AND VALVE ASM
903WR49X10283 GE Refrigerator Inverter Kit with Jumpers
8454WR38X10190 GE Refrigerator Edge Trim
