ZISS480DKBSS FREEZER DOOR

ZISS480DKBSS FREEZER DOOR

Written by

in

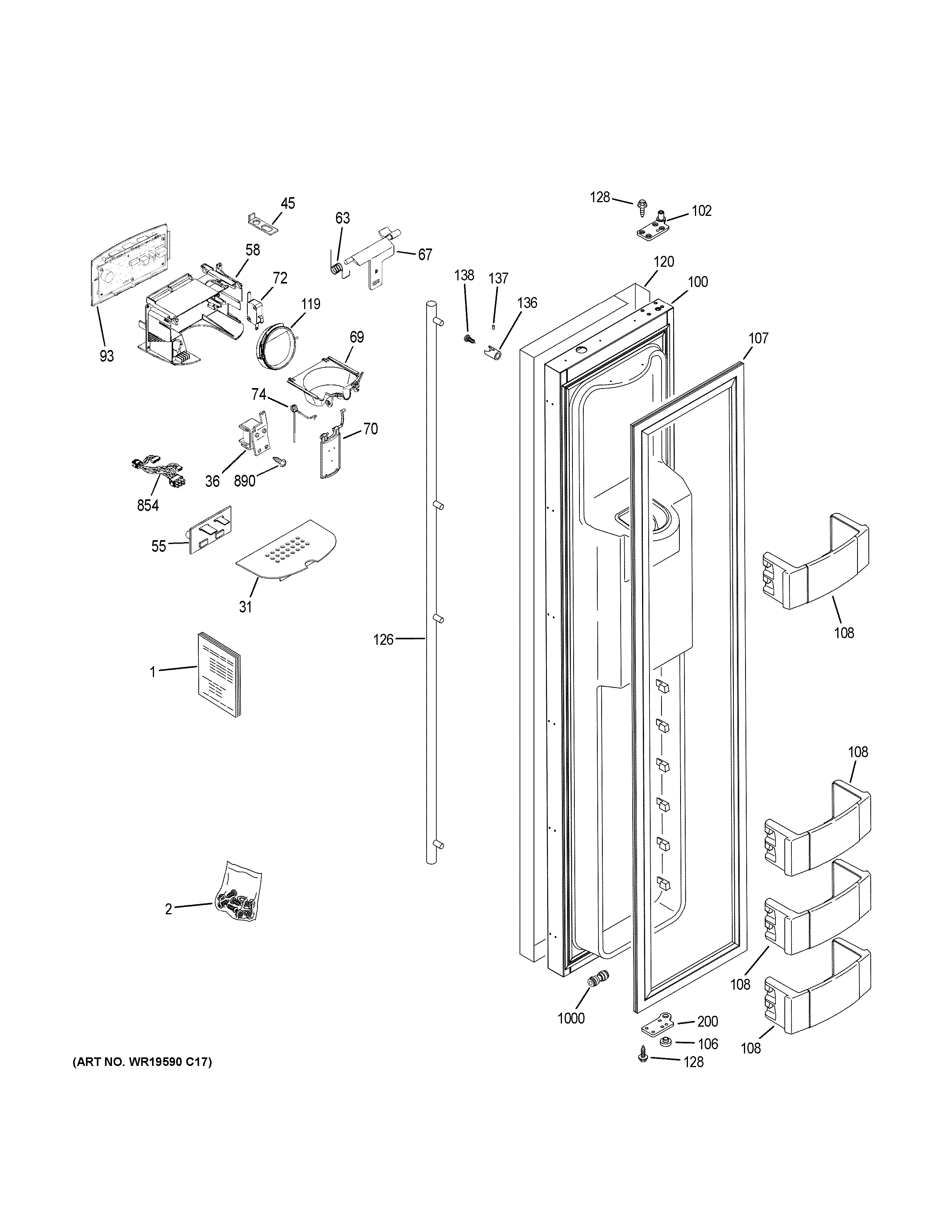

ZISS480DKBSS FREEZER DOOR

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL
2WR01X10304 GE Refrigerator Hardware Pack
31WR17X23167 GE Refrigerator Grille Drip Dispenser
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58WR17X12771 GE Refrigerator Housing Shield Dispenser
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X12120 GE Refrigerator Ice Dispenser Funnel
70WR17X23460 GE Refrigerator Dispenser Paddle
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
93WR55X23461 GE Refrigerator Black Glass Touch Dispenser
100WR78X30089 GE Refrigerator 48" Freezer Door
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25604 GE Refrigerator Door Bin Assembly
119WR17X11653 GE Refrigerator Ice Door Flap Assembly
120WR78X27009 GE Freezer 48" Euro Disp Door Wrap
126WR12X27601 GE Refrigerator Euro Side-by-Side Handle Kit
128WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
136WR12X27598 GE Refrigerator Euro Standoff Kit
137WR01X10026 GE Refrigerator Screw Set
138WR01X10057 GE Refrigerator Screw
200WR13X10657 GE Refrigerator Bottom Door Hinge
854HARNESS RECESS DISPENSER
890WD2X295 GE Refrigerator Screw
1000WR02X24203 GE Refrigerator Connector Water Line
