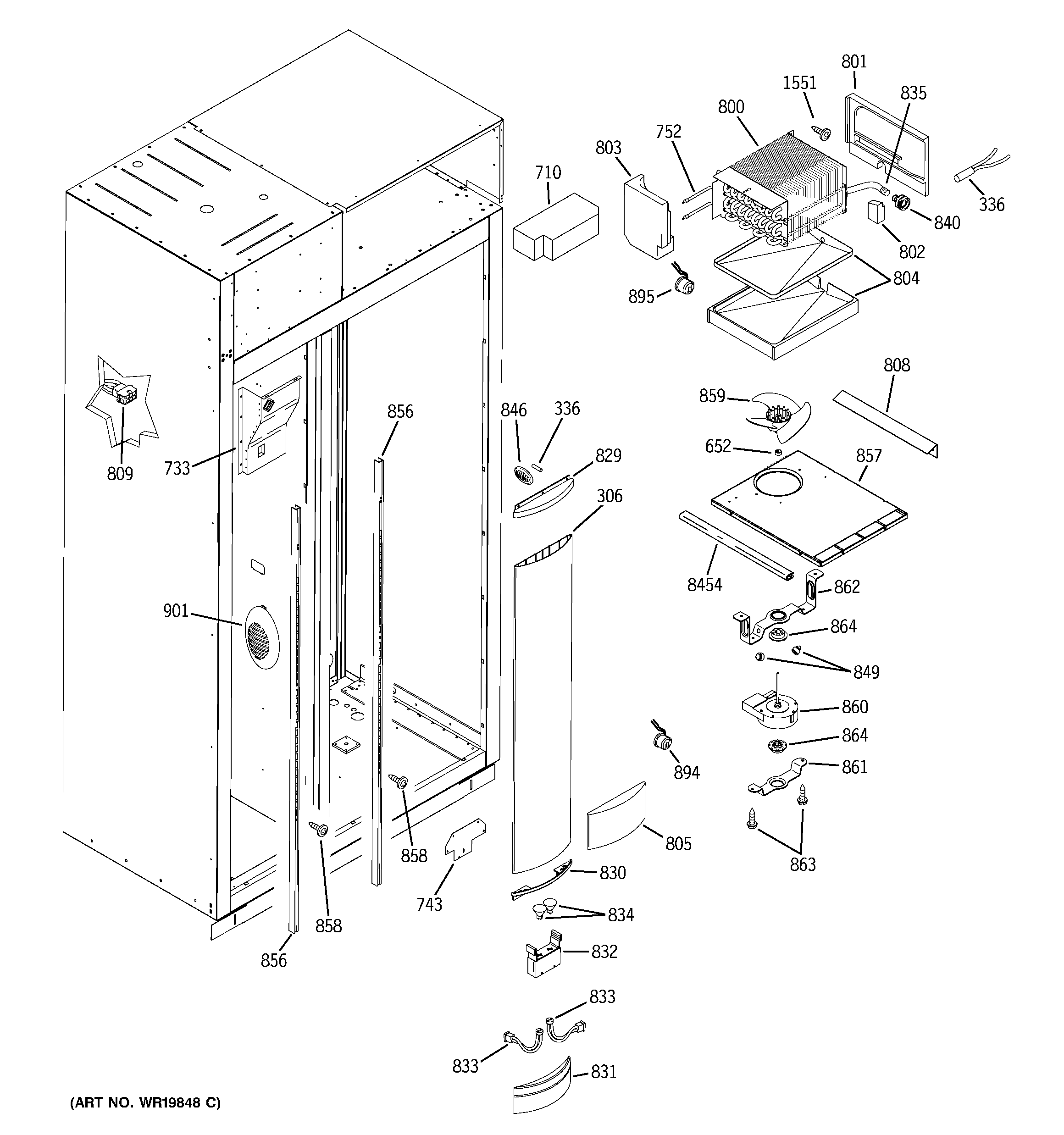

ZISS480DRGSS FREEZER SECTION

ZISS480DRGSS FREEZER SECTION

Written by

in

ZISS480DRGSS FREEZER SECTION

Products

PositionProduct
306LIGHT COLUMN ASM
336WR55X10025 GE Refrigerator Temperature Sensor
652RING COMPRESSION
710WR17X11187 GE Refrigerator Foam Block Evaporator
733WR74X10103 GE Refrigerator Rear Duct
743WR02X11565 GE Refrigerator Bulb Housing Assembly
752WR51X322 GE Refrigerator Defrost Heater
800WR84X10038 GE Refrigerator Evaporator Assembly with Heater
801FF RETURN AIR BAFFLE
802ELUT BLOCK
803FOAM BLOCK
804WR49X10021 GE Refrigerator Defrost Pan Heater
805REFLECTIVE FILM FF
808RAIN HAT
809AMP J10 CONNECTOR
829ENDCAP LIGHT COLUMN FZ
830ENDCAP LIGHT COLUMN BTM
831BULB HOUSING COVER
834WR02X11183 GE Refrigerator Halogen Bulb Light
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
840WR02X12062 GE Refrigerator Flapper & Valve Assembly
846WR02X10647 GE Refrigerator Grille Sensor
846THERMISTOR GRILL KIT- AL
849BUMPER
856FZ SHELF TRACK
857WR17X11206 GE Refrigerator Evaporator Fan and Ice Cover
858WR01X10051 GE 10-24 x 1" Phillips Head Tap
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X10764 GE Refrigerator Evaporator Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894WR50X10035 GE Refrigerator Light Thermostat
895THERMOSTAT CUTT-OFF
901WR71X10325 GE Refrigerator Air Diffuser
1551WR1X5645 GE Refrigerator Screw
8454WR38X10190 GE Refrigerator Edge Trim
