ZISS480NKCSS FREEZER DOOR

ZISS480NKCSS FREEZER DOOR

Written by

in

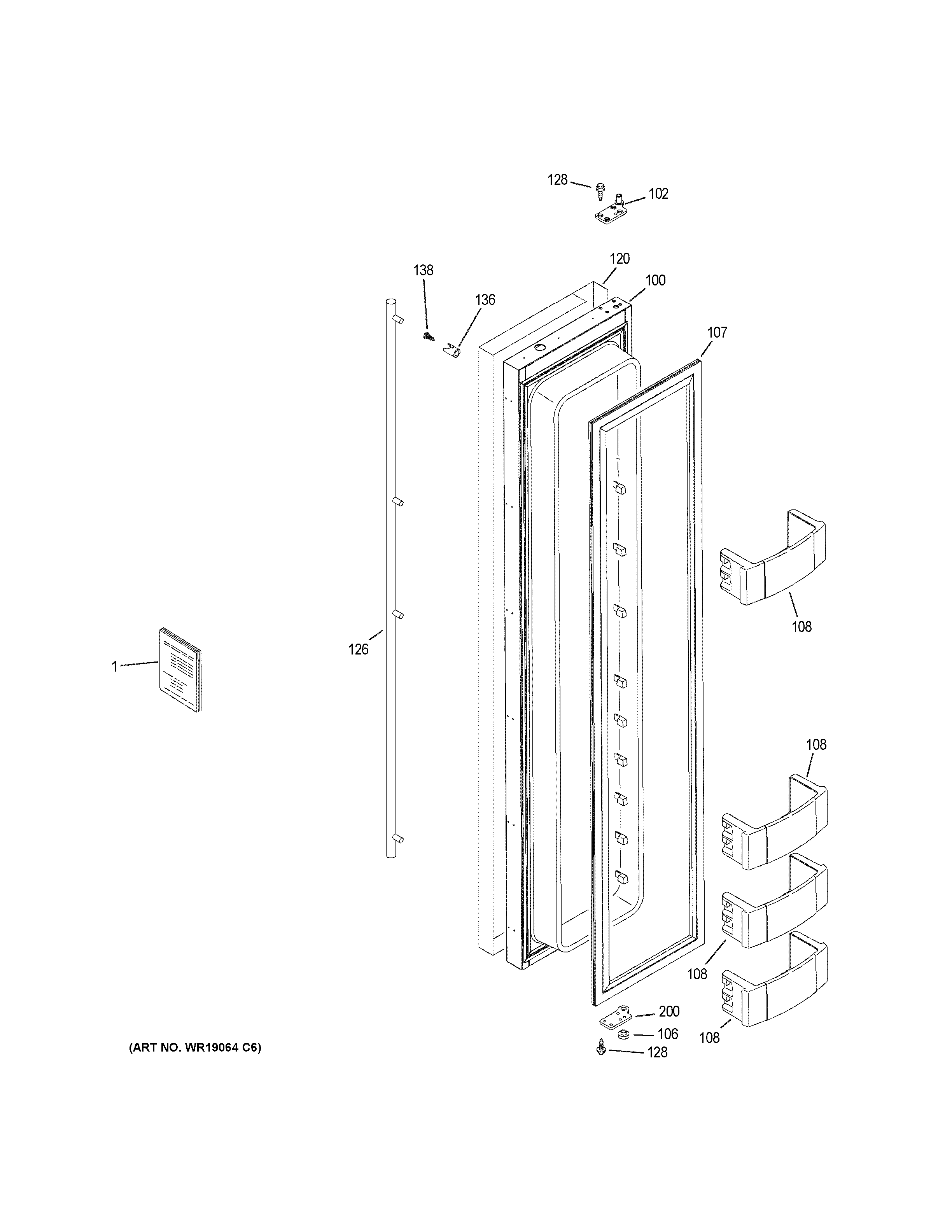

ZISS480NKCSS FREEZER DOOR

Products

PositionProduct
1PM MINI MANUAL
1PM INSTALL INSTRUCTIONS
100WR78X23594 GE Refrigerator Door Assembly 48 ND FI Pack
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25604 GE Refrigerator Door Bin Assembly
120WR78X27011 GE Refrigerator 48" Euro Non-Dispenser Door Wrap
126WR12X29415 GE Refrigerator Euro Handle
128WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
136WR12X27598 GE Refrigerator Euro Standoff Kit
138WB01T10095 GE Oven Screw 10-32 HWH I 13/16
200WR13X10657 GE Refrigerator Bottom Door Hinge
