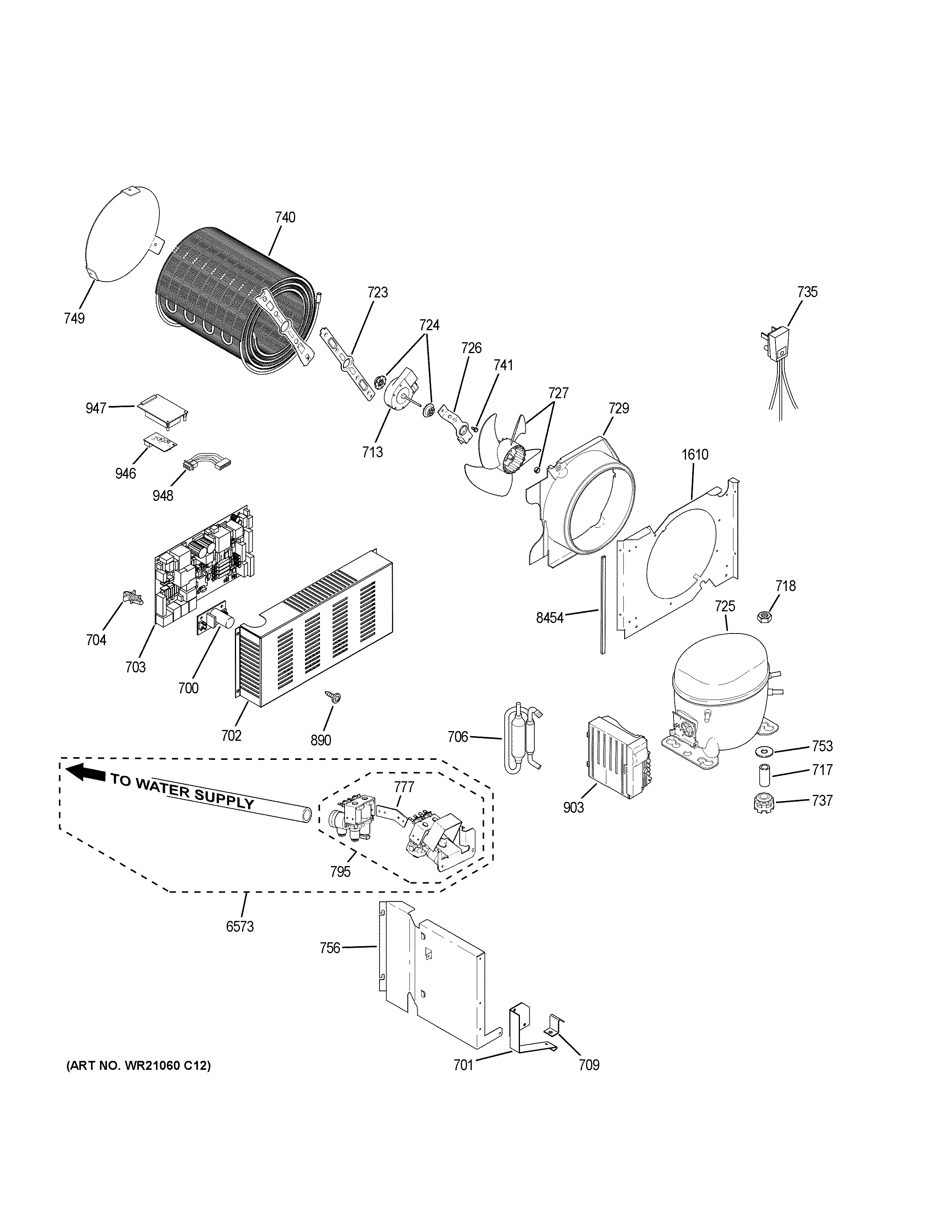

ZISS480NKCSS MACHINE COMPARTMENT

ZISS480NKCSS MACHINE COMPARTMENT

Written by

in

ZISS480NKCSS MACHINE COMPARTMENT

Products

PositionProduct
700POWER SUPPLY PCB
701WR02X12198 GE Refrigerator Bracket Water Valve
702WR02X29774 GE Refrigerator Main Board Cover
703REFRIGERATOR MAIN CONTROL BOAR
704WR02X29169 GE Main Board Standoff
706WR86X25269 GE Refrigerator R134 Dryer
709WR02X12569 GE Bracket System Pan
713WR60X10209 GE Refrigerator DC Condenser Fan Motor
717WR01X10305 GE Refrigerator Steel Collar
718WR01X10044 GE Refrigerator 1/4-20 Hex Nut
723WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
724WR02X10520 GE Refrigerator Fan Motor Grommet
725WR87X24135 GE Refrigerator Compressor Service Kit CU1
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729WR17X35527 GE Refrigerator Condenser Fan Shroud
735WR55X29405 GE Refrigerator Power Cord
737WR02X22869 GE Refrigerator Grommet
740WR84X10022 GE Refrigerator Condenser Replacement Kit
741WZ5X158D GE Screw Package of 12
749WR17X13159 GE Refrigerator Baffle Condenser Air
753WR01X10308 GE Flat Washer 3/8" x 7/8"
756BAFFLE LH
777WR02X10370 GE Refrigerator Water Valve Bracket
795BRACKET AND VALVE ASM
890WD2X295 GE Refrigerator Screw
903WR87X29409 GE Refrigerator Inverter Compressor Control Board
946WR55X34645 GE Refrigerator Wifi and Humidity Board
947WR02X26794 GE Refrigerator Housing with WiFi
948WR55X26908 GE Refrigerator WiFi Jumper Harness
1610COND BAFFLE
6573WR17X22063 GE Microwave MRO Tube Assembly
8454WR38X10190 GE Refrigerator Edge Trim
