ZISS480NNBSS FREEZER SECTION

ZISS480NNBSS FREEZER SECTION

Written by

in

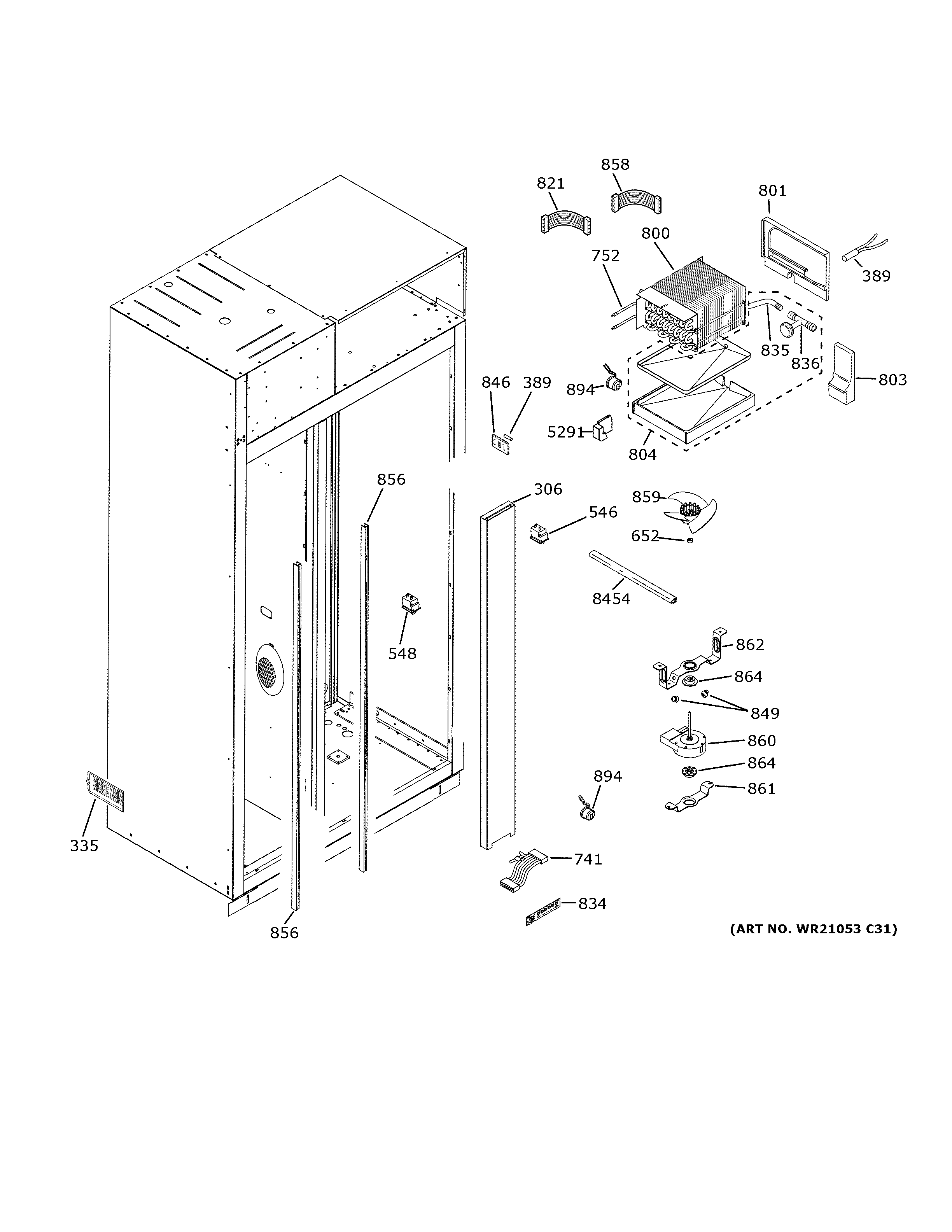

ZISS480NNBSS FREEZER SECTION

Products

PositionProduct
306LIGHT GUIDE 48" FZR
335WR02X21077 GE Duct Grill
389WR55X10025 GE Refrigerator Temperature Sensor
546WR23X32649 GE Refrigerator Light Switch
548WR23X32618 GE Refrigerator Light Switch
652WR02X12149 GE Refrigerator Ring
741LED JUMPER HARNESS
752WR09X32669 GE Refrigerator Defrost Heater
800WR87X33627 GE Refrigerator Evaporator
801WR02X32725 GE Return Baffle
803WR02X12857 GE Refrigerator Foam Block Evaporator
80448" DRAIN PAN AND EVAPORATOR C
821WR55X32689 GE Evaporator Harness DC
834WR55X32730 GE Refrigerator Tower LED
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
836WR01X29412 GE Refrigerator Drain Vacuum Body
846WR02X12839 GE Refrigerator Grille Sensor
849BUMPER
856TRACK FZ SHELF
858WR55X32625 GE Evaporator Harness Assembly
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894THERMOSTAT CUTT-OFF
5291WR02X32704 GE Baffle Foam
8454WR38X10190 GE Refrigerator Edge Trim
