ZISS480NNGSS FREEZER DOOR

ZISS480NNGSS FREEZER DOOR

Written by

in

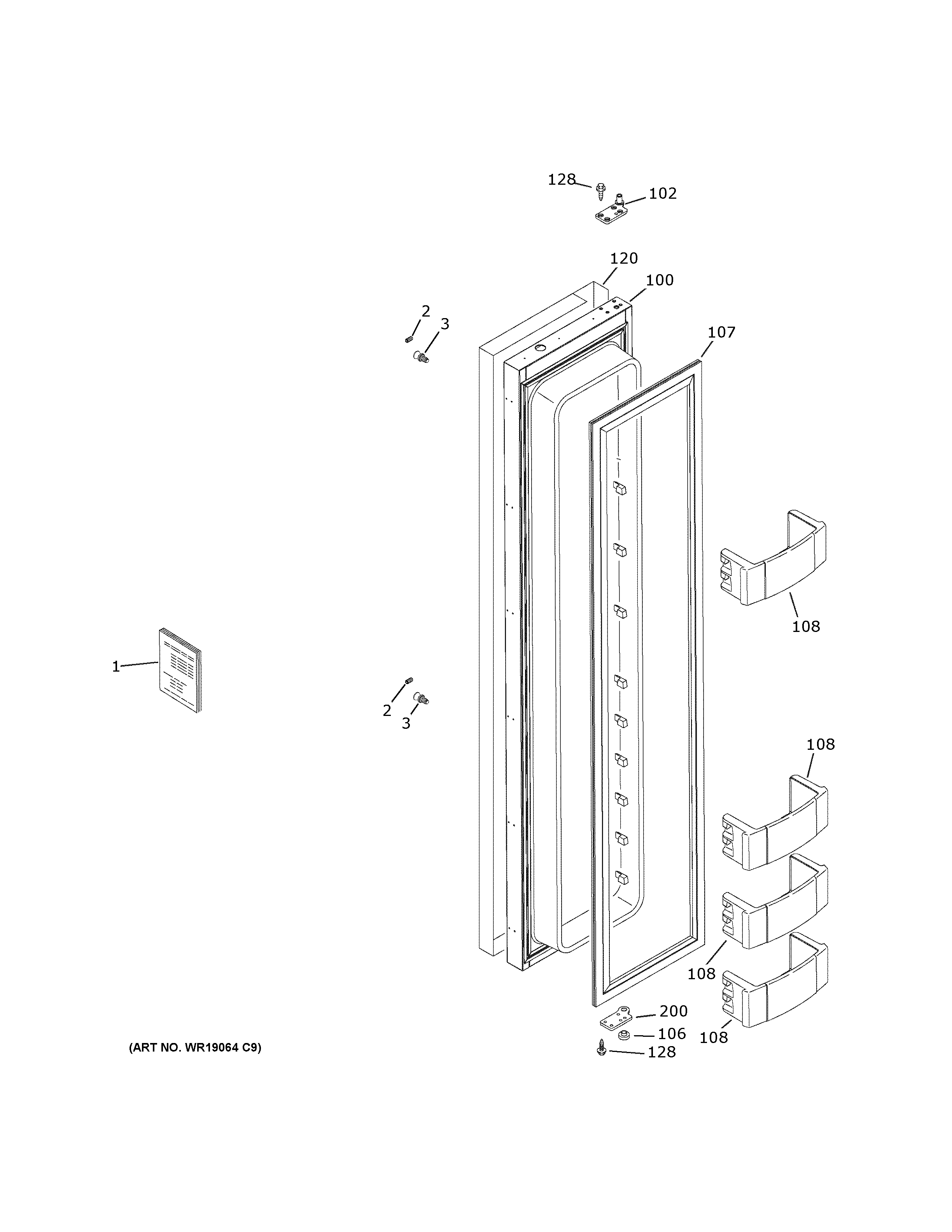

ZISS480NNGSS FREEZER DOOR

Products

PositionProduct
1PM INSTALL INSTRUCTIONS
1PM MINI MANUAL AND WIRING
2WR01X27135 GE Refrigerator Screw Set
3WR01X11007 GE Refrigerator Fastener Door Handle
100FREEZER NON DISPENSER DOOR 48"
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25604 GE Refrigerator Door Bin Assembly
120WR78X32632 GE Freezer Door Wrap 48 Stainless
128WR01X21024 GE Refrigerator Screw 1/4-20 TT BHT .87
200WR13X10657 GE Refrigerator Bottom Door Hinge
