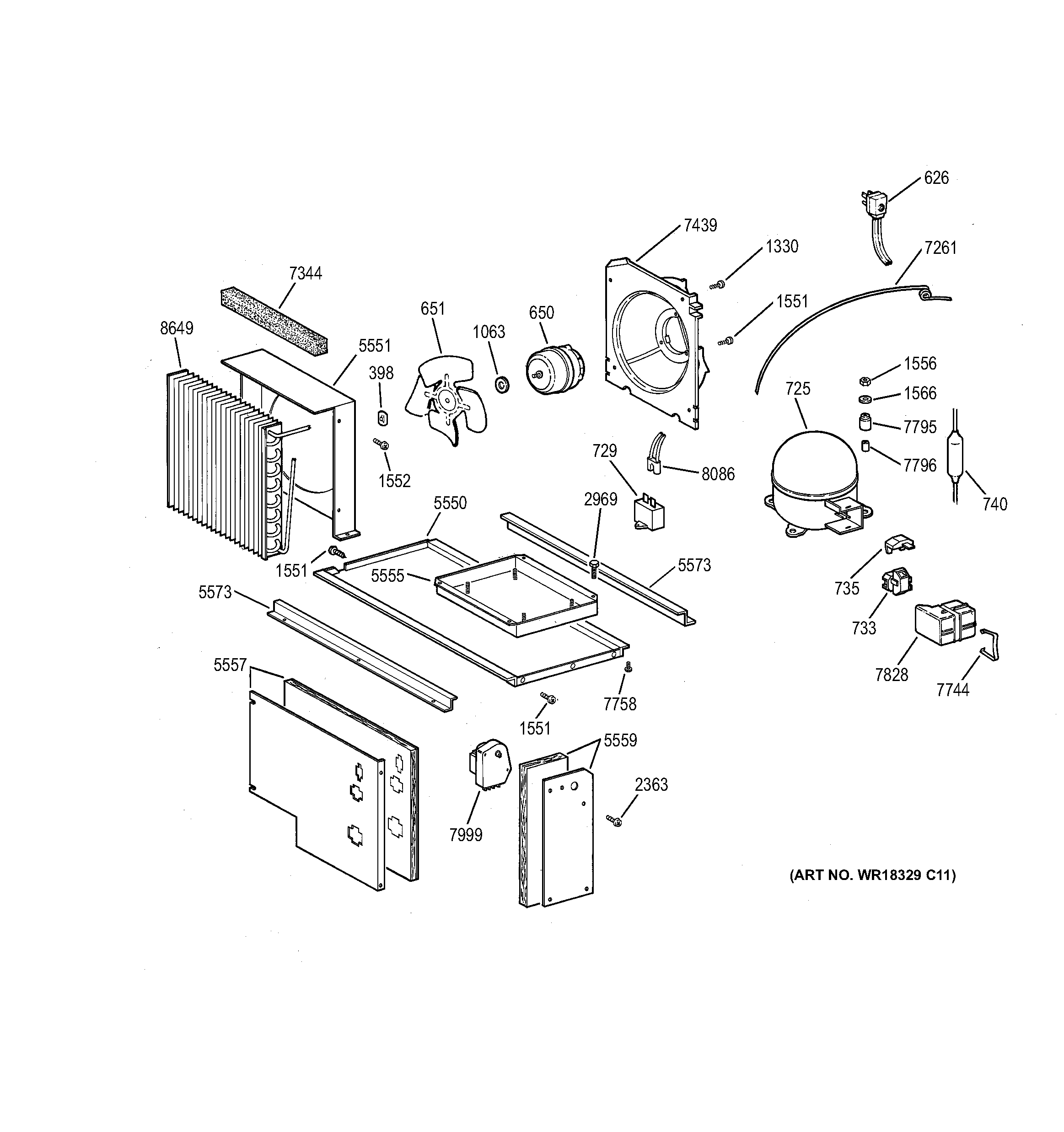

ZISS48NCASS MACHINE COMPARTMENT

ZISS48NCASS MACHINE COMPARTMENT

Written by

in

ZISS48NCASS MACHINE COMPARTMENT

Products

PositionProduct
398GEN WR01X1715
626WR23X10300 GE Refrigerator Power Cord Assembly
650WR60X187 GE Refrigerator Condenser Fan Motor
651GEN WR60X0167
725WR87X10226 GE Refrigerator Compressor Kit EGYS90
729WR55X24065 GE Refrigerator Kit Capacitor 15 UF
733GEN WR07X0253
735GEN WR08X0157
740WR86X25269 GE Refrigerator R134 Dryer
1063GEN WR01X1833
1330SCR 8-32 TT PT 3/8
1551WR1X5645 GE Refrigerator Screw
1552GEN WR29X5175
1556NUT COMP
1566GEN WR01X5649
2363WR1X5684 GE Screw
2969BOLT
5550GEN WR17X3041
5551WR17X3048 GE Refrigerator Condenser Shroud
5555GEN WR17X3043
5557GEN WR17X3044
5559WR17X3045 GE Refrigerator Front Baffle with FG
5573WR2X8610 GE Bracket
7261SUCTION & CAPILLARY TUBE
7344WR17X3046 GE Clamp 1/4"
7439WR17X3047 GE Refrigerator Fan Orifice
7744CLAMP RELAY COVER
7758GEN WR01X1840
7795GEN WR02X7238
7796STEEL COLLAR
7828COVER RELAY
7999WR9X502 GE Refrigerator Defrost Timer
8086GEN WR23X0474
8649WR84X212 GE Refrigerator Condenser
