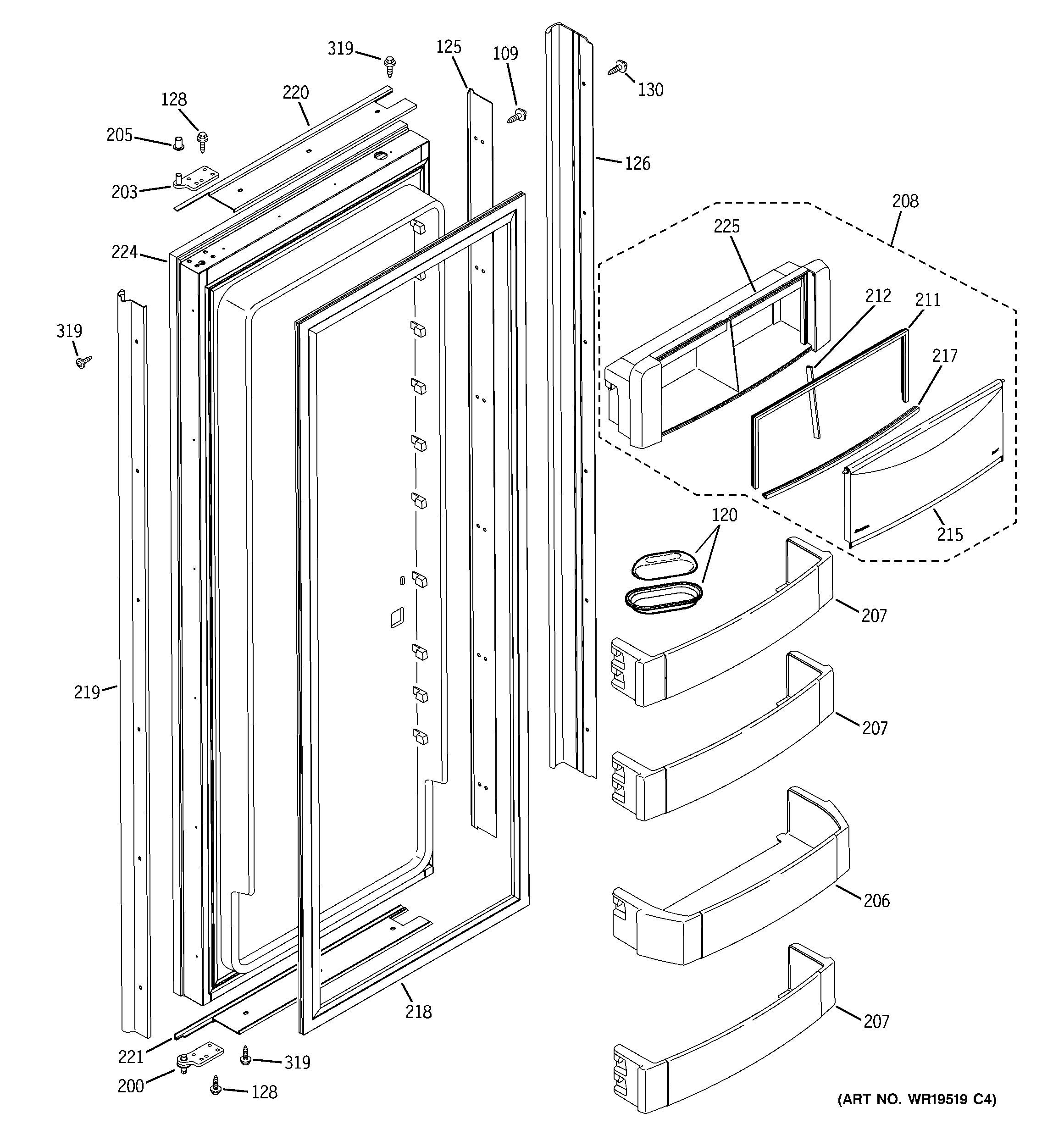

ZISW360DXA FRESH FOOD DOOR

Products

PositionProduct
109WR01X10303 GE Refrigerator Handle Trim Screw
125WR12X10526 GE Refrigerator Handle O/S1
126WR38X10271 GE Refrigerator Handle Trim
128WR1X1754D GE Refrigerator Screw Package
130WR1X2130 GE Refrigerator Screw
200WR13X10657 GE Refrigerator Bottom Door Hinge
203WR13X25052 GE Refrigerator Top Right Hand Door Hinge Assembly
205WR02X10954 GE Refrigerator Bushing Hinge Top
206WR71X25590 GE Refrigerator Gallon Bin Assembly
207WR71X25604 GE Refrigerator Door Bin Assembly
208WR71X33506 GE Refrigerator 36" Dairy Bin
211GEN WR14X10141
212WR14X10132 GE Dairy Bin Center Gasket
215WR22X10036 GE Refrigerator Dairy Bin Door with Trim
217WR24X10113 GE Refrigerator Dairy Bottom Gasket
218WH01X10704 GE Wire Tie
218GASKET AND LABEL ASM SXS
219WR38X10272 GE Refrigerator Side Door Trim
220WR38X10334 GE Refrigerator Top Door Trim
221WR38X10335 GE Refrigerator Bottom Door Trim
224WR78X21427 GE Refrigerator Door Foam Assembly
225GEN WR14X10142
319WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
