ZISW360DXA QUICK CHILL

ZISW360DXA QUICK CHILL

Written by

in

ZISW360DXA QUICK CHILL

Products

PositionProduct

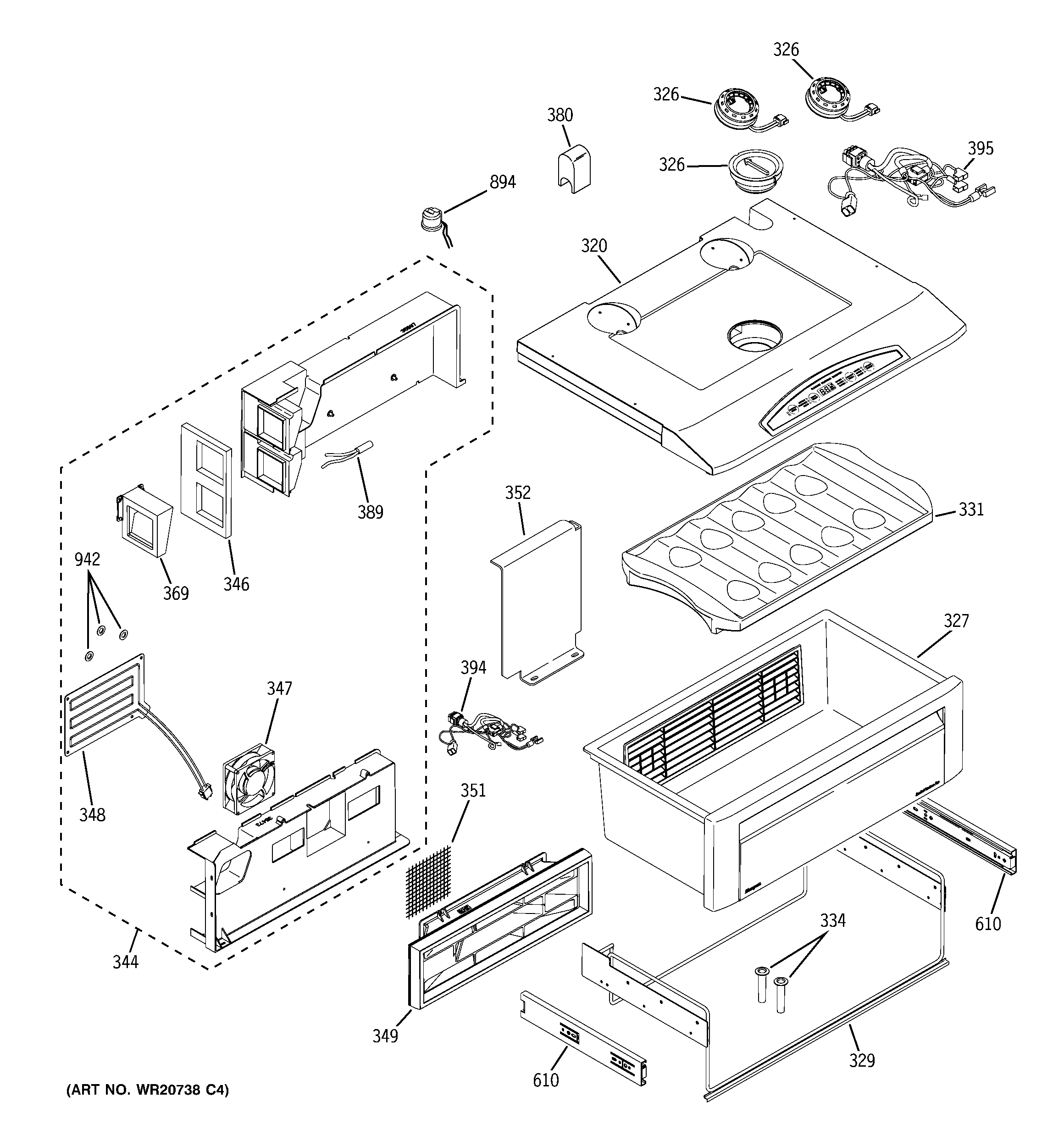

320WR32X10924 GE Refrigerator QC Mullion Assembly 36
326WR02X11198 GE Refrigerator Halogen QC Lamp Assembly
327WR32X26076 GE Refrigerator Pan Quick Chill Assembly 36"
329WR71X10443 GE Vegetable Wire Frame
331GEN WR17X11221
334WR2X8472 GE Refrigerator Vent Tube
344WR31X10023 GE Refrigerator Air Handler Assembly QC
346WR60X10116 GE Refrigerator QC Damper Seal
347WR17X13035 GE Refrigerator QC Fan Harness
348WR51X10098 GE Refrigerator Heater THAW 36/42/48
349WR31X10024 GE Refrigerator Diffuser Case Assembly
351WR01X10298 GE Wire Mesh Qc Housing
352GEN WR01X10312
369DAMPER ASM D
380WR02X13054 GE Refrigerator Water Line Cover
389WR55X10025 GE Refrigerator Temperature Sensor
394WR23X10267 GE Refrigerator QC Harness
395HARNESS QC LIGHTS
610WR72X10191 GE Refrigerator Slide Assembly 10"
894WR50X10092 GE Refrigerator Light Thermostat
942WR01X10239 GE Refrigerator Chill Washer Retainer
