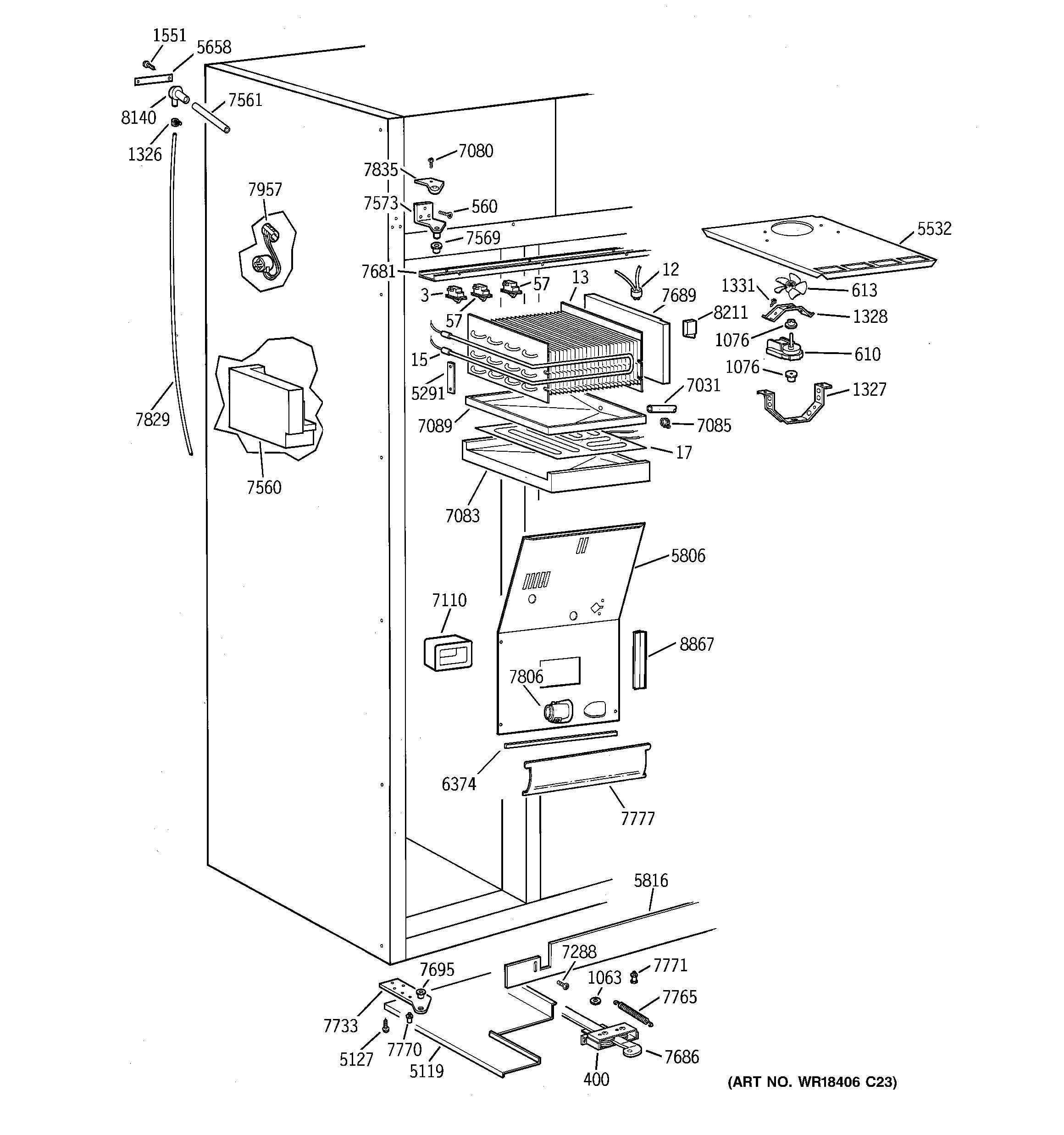

ZISW36DCB FREEZER SECTION

ZISW36DCB FREEZER SECTION

Written by

in

ZISW36DCB FREEZER SECTION

Products

Position	Product
3	WR23X37285 GE Light Switch
12	DEFROST THERMOSTAT
13	EVAPORATOR
15	WR51X322 GE Refrigerator Defrost Heater
17	WR49X10021 GE Refrigerator Defrost Pan Heater
57	SWITCH-CRADLE-WATER SIDE
371	GEN WR17X3300
400	CLOSURE FZ DOOR
454	GEN WR72X0284
455	GEN WR72X0285
560	WR1X1754D GE Refrigerator Screw Package
610	GEN WR60X0182
613	WR60X123 GE Fan Blade Black
777	WR02X10370 GE Refrigerator Water Valve Bracket
795	WR57X10023 GE Water Inlet Valve
797	WR23X10108 GE Refrigerator Harness
798	WR57X10026 GE Refrigerator Water Inlet Valve
799	WR57X10024 GE Water Inlet Valve
1063	WASHER COND MTR
1076	GEN WR02X7391
1326	WR1X5278 GE Refrigerator Cable Clamp
1327	BRACKET FAN REAR
1328	BRACKET FAN FRONT
1331	SCREW BRKT. EVAP. FAN
1551	WR1X5645 GE Refrigerator Screw
2843	WR1X2130 GE Refrigerator Screw
5118	WR02X10426 GE Refrigerator Copper Tube
5119	GEN WR17X10526
5127	WR01X10177 GE Refrigerator Hinge Screw Door Bottom
5136	GEN WR02X10425
5291	WR2X8619 GE Refrigerator HTR Bracket
5532	GEN WR17X3036
5586	GEN WR13X0670
5627	GEN WR02X8604
5651	GEN WR71X2668
5658	WR2X8613 GE Refrigerator Strap
5791	GEN WR74X0245
5806	GEN WR74X10002
5816	GEN WR74X0267
5824	GEN WR02X9490
5859	GEN WR74X10001
6374	GEN WR38X1824
7031	GEN WR17X10686
7080	GEN WR01X1933
7083	WR17X10688 GE Refrigerator Baffle Evaporator Foam
7085	GEN WR01X10185
7089	GEN WR17X10687
7110	GEN WR02X8975
7271	GEN WR01X5635
7288	SCREW TOEKICK MTG
7560	GEN WR17X3039
7561	WR2X8612 GE Refrigerator Fill Tube
7569	GEN WR02X8587
7573	GEN WR13X0640
7681	GEN WR17X3902
7686	GEN WR02X8926
7689	BAFFLE EVAP
7695	BUSHING BTM HINGE
7702	SHELF CANT FZ
7733	GEN WR13X0641
7749	BOLT ADJ HINGE-BASE
7760	BARREL NUT
7763	WR1X5690 GE Refrigerator Handle Screw
7765	GEN WR02X8804
7770	WR02X11209 GE Refrigerator Shear Pin
7771	GEN WR01X1839
7774	GEN WR02X10445
7775	GEN WR02X10446
7777	SHIELD FZ LIGHT
7806	GEN WR02X8928
7829	WR17X11349 GE Refrigerator Plastic Tube
7835	WR13X10080 GE Refrigerator Hinge Cover Left Hand
7957	GEN WR51X0216
8011	GEN WR17X3443
8012	GEN WR49X0360
8013	GEN WR02X8972
8140	WR2X8474 GE Fill Tube
8211	GEN WR02X9301
8306	WR72X268 GE Refrigerator Slide with Bearings
8312	GEN WR21X0205
8628	GEN WR02X9450
8651	GEN WR02X9425
8867	GEN WR14X10001
