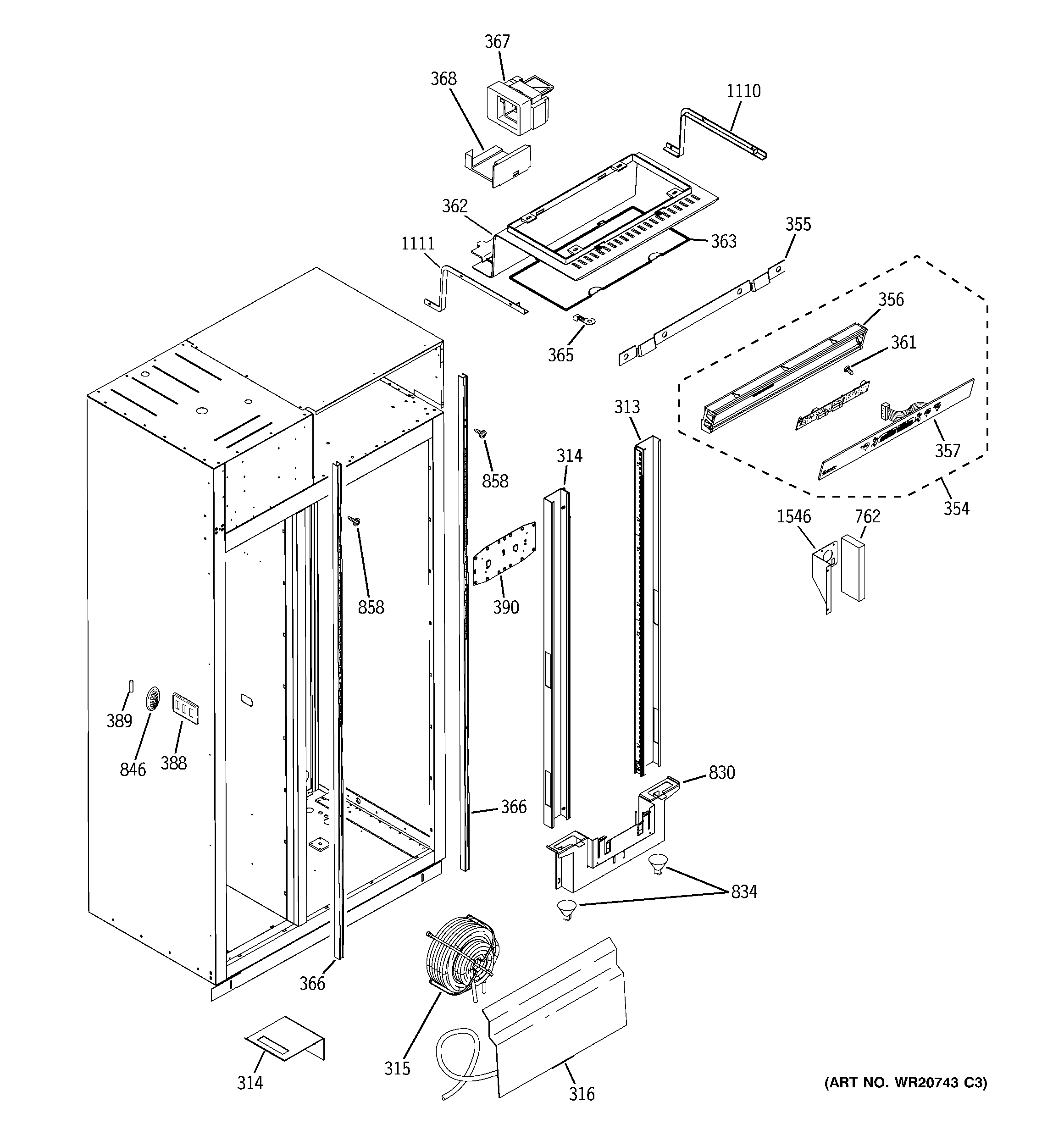

ZISW420DXA FRESH FOOD SECTION

ZISW420DXA FRESH FOOD SECTION

Written by

in

ZISW420DXA FRESH FOOD SECTION

Products

PositionProduct
313AIR TOWER FF 42/48
314WR02X13141 GE Foam Airtower Assembly
315WR17X12702 GE Refrigerator Water Tank Assembly
316WR02X13153 GE Water Tank Cover
355HMI TAB HOLDER 48/42
356WR31X10022 GE Refrigerator Temp Control Housing
357WR55X10851 GE Refrigerator HMI Assembly
3614-40 X 1/4 PH SMS
362WR17X11212 GE Ceiling Light Bracket
363WR02X12851 GE Refrigerator Ceiling Light Shield
365WR01X22266 GE Refrigerator Latch Light White (Pair)
366TRACK FF SHELF
367WR02X12860 GE Refrigerator Damper Foam Assembly 42
388WR02X12839 GE Refrigerator Grille Sensor
389WR55X10025 GE Refrigerator Temperature Sensor
390TOP LED BOARD
762WR14X10296 GE Foam Strip Front
834WR02X11183 GE Refrigerator Halogen Bulb Light
846WR02X10647 GE Refrigerator Grille Sensor
858SCR 10-24 F PNP 1.25S
1110WR01X10927 GE Right Hand Ceiling Trim Bracket
1111WR01X10928 GE Ceiling Trim Bracket LH
1546WR02X29777 GE Water Filter Bracket
