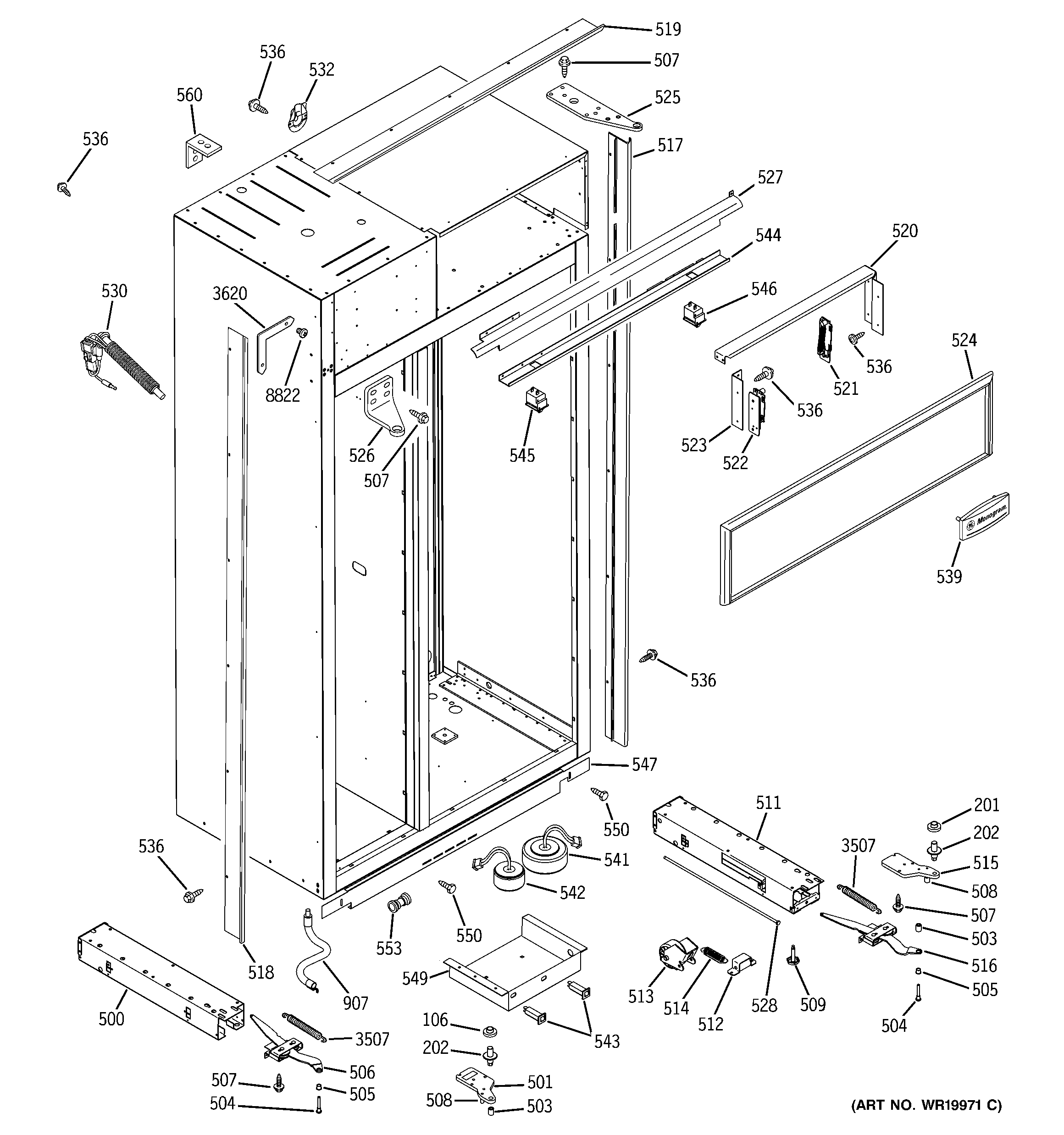

ZISW480DRI CASE PARTS

ZISW480DRI CASE PARTS

Written by

in

ZISW480DRI CASE PARTS

Products

PositionProduct
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
201WR02X10953 GE Refrigerator Bushing Hinge Bottom
202WR13X10239 GE Refrigerator Lower Hinge Pin Adjuster
500WR13X30112 GE Refrigerator Left Hand Base Channel
501WR13X10241 GE Refrigerator Lower SXS Hinge Case
503WR02X11231 GE Refrigerator Door Closure Spacer
504WR02X11207 GE Refrigerator Shoulder Bolt
505WR02X10951 GE Refrigerator Bushing Arm Nylon
506WR02X11208 GE Refrigerator Link Accelerator D02
507WR01X10177 GE Refrigerator Hinge Screw Door Bottom
508WR02X11209 GE Refrigerator Shear Pin
509LEVELING LEG
511WR13X30113 GE Refrigerator Right HandBase Channel
512WR02X11210 GE Refrigerator Front Roller Assembly
513WR2X8377 GE Refrigerator Wheel Assembly
514WR02X11233 GE Wheel Spring
515WR13X23372 GE Refrigerator Bottom Case Hinge
516WR02X11211 GE Refrigerator Link Actuator D02
517WR17X12831 GE Refrigerator Trim Case Right Hand Side
518WR17X11181 GE Refrigerator Case Trim
519GEN WR17X11352
520GEN WR13X10243
521WR13X10204 GE Refrigerator Left Grille Hinge Assembly
522WR13X10691 GE Refrigerator Grille Hinge Left Stainless Steel
523GEN WR13X10244
524WR74X10290 GE Refrigerator Grille Panel Assembly
525GEN WR13X10245
526WR13X10246 GE Refrigerator Hinge SXS Case Upper
527GEN WR74X10102
528WR01X10256 GE Refrigerator Base Shaft
530WR49X10093 GE Refrigerator Fill Tube Kit
532WR17X13124 GE Refrigerator Water Line Cover
536WR1X2130 GE Refrigerator Screw
539WB02X10831 GE Monogram Logo
541WR62X10029 GE Refrigerator Transformer
542WR62X10030 GE Refrigerator Light Transformer
543WR23X10269 GE Refrigerator 2 AMP Fuse
544GEN WR17X11183
545FREEZER LIGHT SWITCH
546WR23X37285 GE Light Switch
547WR74X10296 GE Toe Kick
549TRANSFORMER TRAY
550WR01X10065 GE Screw
553WR02X24203 GE Refrigerator Connector Water Line
560GEN WR01X11130
907GEN WR02X11842
3507WR02X12948 SPRING CLOSURE
3620WR02X11256 GE Refrigerator Top Case Trim Bracket
8822WH2X1211 GE Screw
