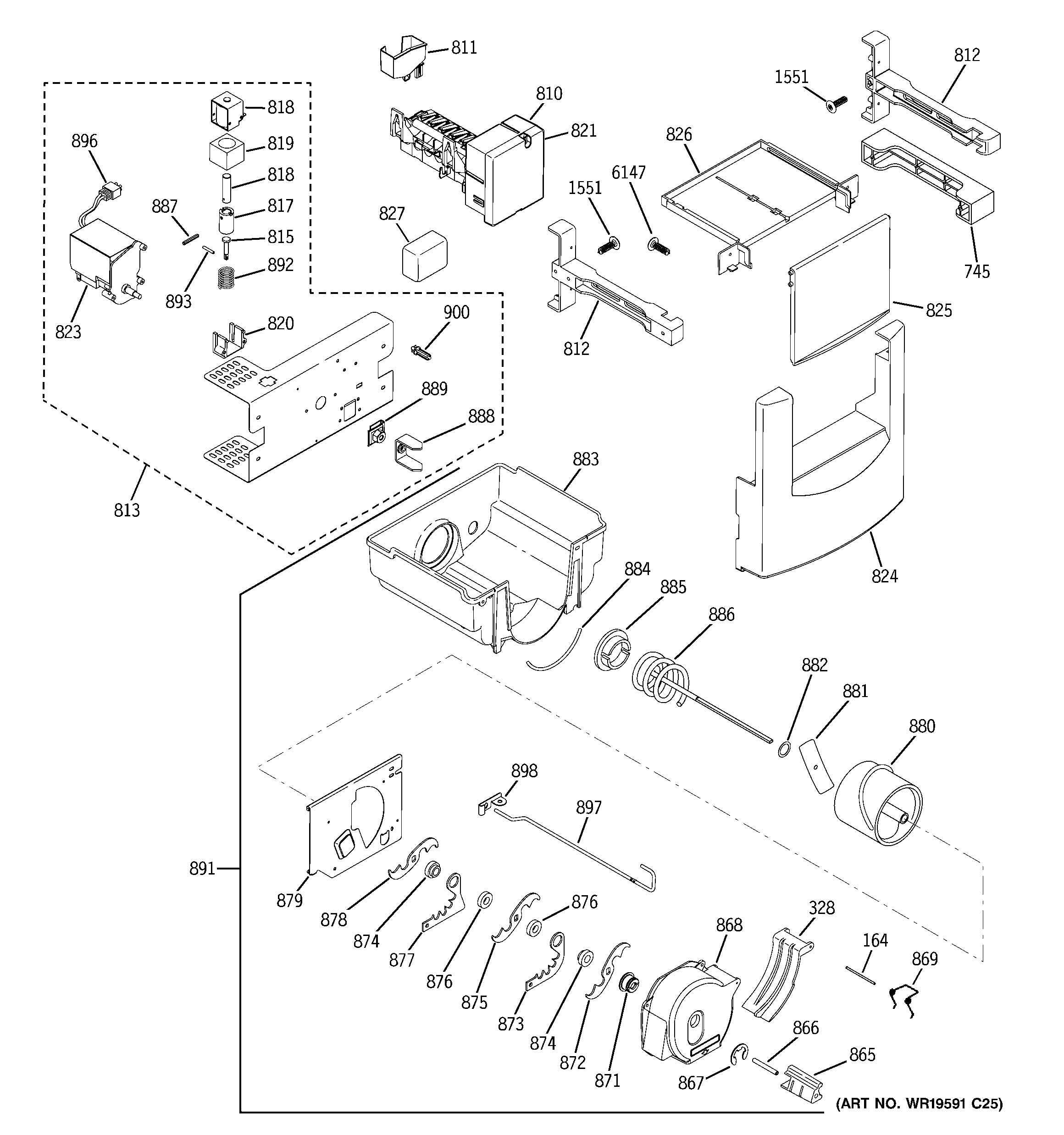

ZISW480DXA ICE MAKER & DISPENSER

ZISW480DXA ICE MAKER & DISPENSER

Written by

in

ZISW480DXA ICE MAKER & DISPENSER

Products

PositionProduct
164WR2X4143 GE Refrigerator Pivot
328WR17X12794 GE Refrigerator Deflector Ice Dispenser
745WR17X11190 GE Refrigerator Shelf Spacer 48
810WR30X10093 GE Refrigerator Ice Maker
811WR29X10092 GE Refrigerator Ice Maker Fill Cup
812WR72X10103 GE Refrigerator Bucket Slide
813WR17X29747 GE Refrigerator Auger Motor Assembly 48"
820WR2X7309 GE Refrigerator Solenoid Cushion
821WR29X10082 GE Ice Maker Cover
823WR60X10262 GE Refrigerator Motor Crusher Dispenser
824WR17X11198 GE Refrigerator Front Ice Bin
825WR17X12547 GE Refrigerator Ice Bin Door
826WR71X10420 GE Refrigerator Ice Bin Door Track
827WR02X13454 GE Cover Air Motor
865WR02X13319 GE Dispenser Blade Rest
866GEN WR02X4141
867WR1X1367D GE Refrigerator Return Package 12
868WR17X12821 GE Housing Crusher Dispenser
869GEN WR02X4561
871WR01X10925 GE Front Dispense Nut
872WR17X1361 GE Refrigerator Blades Moving Display
873GEN WR17X1009
874GEN WR02X4139
875WR17X1362 GE Refrigerator Middle Blade
876WR2X4138 GE Refrigerator Spacer
877WR17X2058 GE Refrigerator Dispenser Blade
878WR17X1363 GE Refrigerator Blades Moving Display
879WR17X12822 GE Refrigerator Plate Front Dispenser
880WR17X4207 GE Refrigerator Front Helix
881WR02X13320 GE Refrigerator Dispenser Blade
882GEN WR01X1366
883WR30X322 GE Refrigerator Bucket Dispenser
884WR2X7905 GE Refrigerator Bucket Seal
885WR02X13321 GE Drive Cup
886WR17X10044 GE Refrigerator Auger Helix Display
888WR02X11937 GE Refrigerator Drive Auger Dispenser
889GEN WR01X1547
891WR30X32633 GE Refrigerator Ice Bucket
892WR62X26536 GE Refrigerator Armature Kit
893WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
896WR23X10682 GE Harness Assembly
897WR17X11411 GE Refrigerator Wire Actuator Dispenser
898WR02X13322 GE Wire Retainer Actuator
900SUPPORT TWIST 9119-01-99
1551WD2X295 GE Refrigerator Screw
6147WR1X1591 GE Refrigerator Screw
