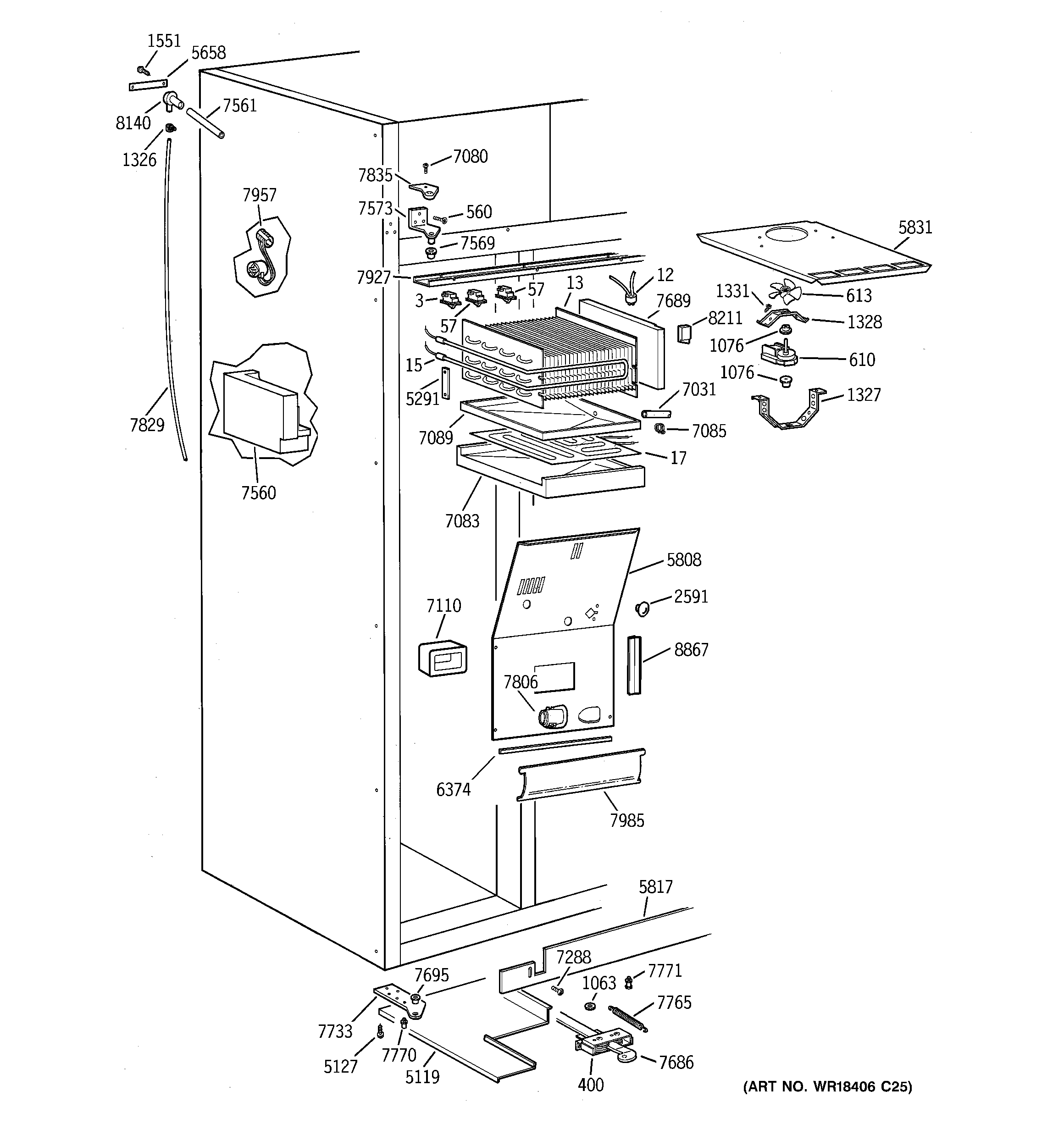

ZISW48DCB FREEZER SECTION

ZISW48DCB FREEZER SECTION

Written by

in

ZISW48DCB FREEZER SECTION

Products

PositionProduct
3WR23X37285 GE Light Switch
12DEFROST THERMOSTAT
13EVAPORATOR
15WR51X322 GE Refrigerator Defrost Heater
17WR49X10021 GE Refrigerator Defrost Pan Heater
57SWITCH-CRADLE-WATER SIDE
371GEN WR17X3300
400CLOSURE FZ DOOR
454GEN WR72X0284
455GEN WR72X0285
560WR1X1754D GE Refrigerator Screw Package
610GEN WR60X0182
613WR60X123 GE Fan Blade Black
777WR02X10370 GE Refrigerator Water Valve Bracket
795WR57X10023 GE Water Inlet Valve
797WR23X10108 GE Refrigerator Harness
798WR57X10026 GE Refrigerator Water Inlet Valve
799WR57X10024 GE Water Inlet Valve
1063GEN WR01X1833
1076GEN WR02X7391
1326WR1X5278 GE Refrigerator Cable Clamp
1327BRACKET FAN REAR
1328BRACKET FAN FRONT
1331SCREW BRKT. EVAP. FAN
1551WR1X5645 GE Refrigerator Screw
2591GEN WR01X1932
2843WR1X2130 GE Refrigerator Screw
5118WR02X10426 GE Refrigerator Copper Tube
5119GEN WR17X10526
5127WR01X10177 GE Refrigerator Hinge Screw Door Bottom
5136GEN WR02X10425
5291WR2X8619 GE Refrigerator HTR Bracket
5586GEN WR13X0670
5627GEN WR02X8604
5652FRZ BASKET FRONT ASM
5658WR2X8613 GE Refrigerator Strap
5788GEN WR01X1975
5789GEN WR01X1976
5790GEN WR74X0246
5808GEN WR17X10012
5817GEN WR74X0237
5826GEN WR02X9487
5831EVAP. HOUSING BTM
5861GRILLE PANEL ASM 48
6374TRIM
7031GEN WR17X10686
7080GEN WR01X1933
7083WR17X10688 GE Refrigerator Baffle Evaporator Foam
7085GEN WR01X10185
7089GEN WR17X10687
7110GEN WR14X0450
7271GEN WR01X5635
7288SCREW TOEKICK MTG
7560GEN WR17X3039
7561WR2X8612 GE Refrigerator Fill Tube
7569GEN WR02X8587
7573GEN WR13X0640
7686GEN WR02X8926
7689BAFFLE EVAP
7695BUSHING BTM HINGE
7717SHELF FZ
7733GEN WR13X0641
7749BOLT ADJ HINGE-BASE
7760BARREL NUT
7763WR1X5690 GE Refrigerator Handle Screw
7765GEN WR02X8804
7770WR02X11209 GE Refrigerator Shear Pin
7771GEN WR01X1839
7774GEN WR02X10445
7775GEN WR02X10446
7806GEN WR02X8928
7829WR17X11349 GE Refrigerator Plastic Tube
7835WR13X10080 GE Refrigerator Hinge Cover Left Hand
7927GEN WR17X3896
7957GEN WR51X0369
7985GEN WR17X3441
8009GEN WR17X3655
8011GEN WR17X3443
8012GEN WR49X0360
8140WR2X8474 GE Fill Tube
8211GEN WR02X9301
8306WR72X268 GE Refrigerator Slide with Bearings
8313GEN WR21X0206
8630GEN WR02X9449
8653GEN WR02X9427
8867GEN WR14X10001
