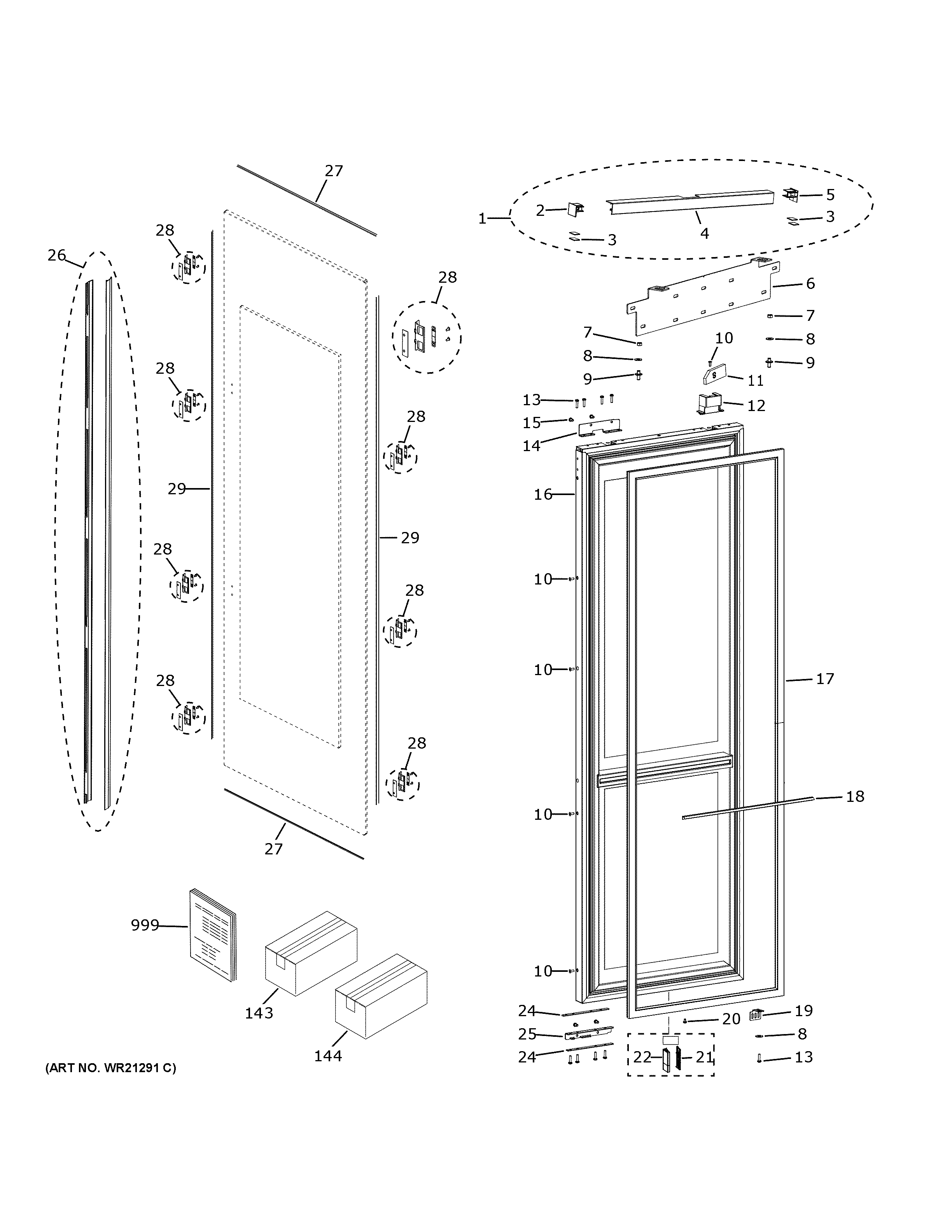

| 1 | TOP DOOR COVER ASSEMBLY |
| 2 | RIGHT TOP DOOR COVER END CAP |
| 3 | LOCK TABS |
| 4 | TOP DOOR COVER |
| 5 | LEFT TOP DOOR COVER END CAP |
| 6 | BRACKET PANEL DOOR RS24 PC |
| 7 | HEX NUT M8 |
| 8 | WASHER M8X21X1.6 |
| 9 | BOLT |
| 10 | SCREW M5X12 |
| 11 | DOOR MAGNET SWITCH |
| 12 | DOOR MAGNET BRACKET |
| 13 | SCREW MC M5X20 |
| 14 | RIGHT TOP HINGE BRACKET |
| 15 | SCREW MC M6X10 |
| 16 | DOOR & GASKET ASSEMBLY |
| 17 | GASKET |
| 18 | DOOR SEAL DIVIDER |
| 19 | DOOR STOP |
| 20 | SCREW 8X16 |
| 21 | DIVIDER FLOW CAP |
| 22 | DIVIDER MOUNT ASSEMBLY |
| 24 | BOTTOM SPACER |
| 25 | RIGHT BOTTOM HINGE BRACKET |
| 26 | DOOR TRIM KIT |
| 27 | GLASS DOOR PANEL TRIM - SHORT |
| 28 | DOOR PANEL BRACKET KIT |
| 29 | GLASS DOOR PANEL TRIM - LONG |
| 143 | INSTALLATION HAREWARE KIT |
| 144 | LEFTHAND REVERSABLE HINGE KIT |
| 999 | PRINTED AND ONLINEMINI MANUAL AND WIRING |
| 999 | PRINTED AND ONLINEOWNERS MANUAL |
