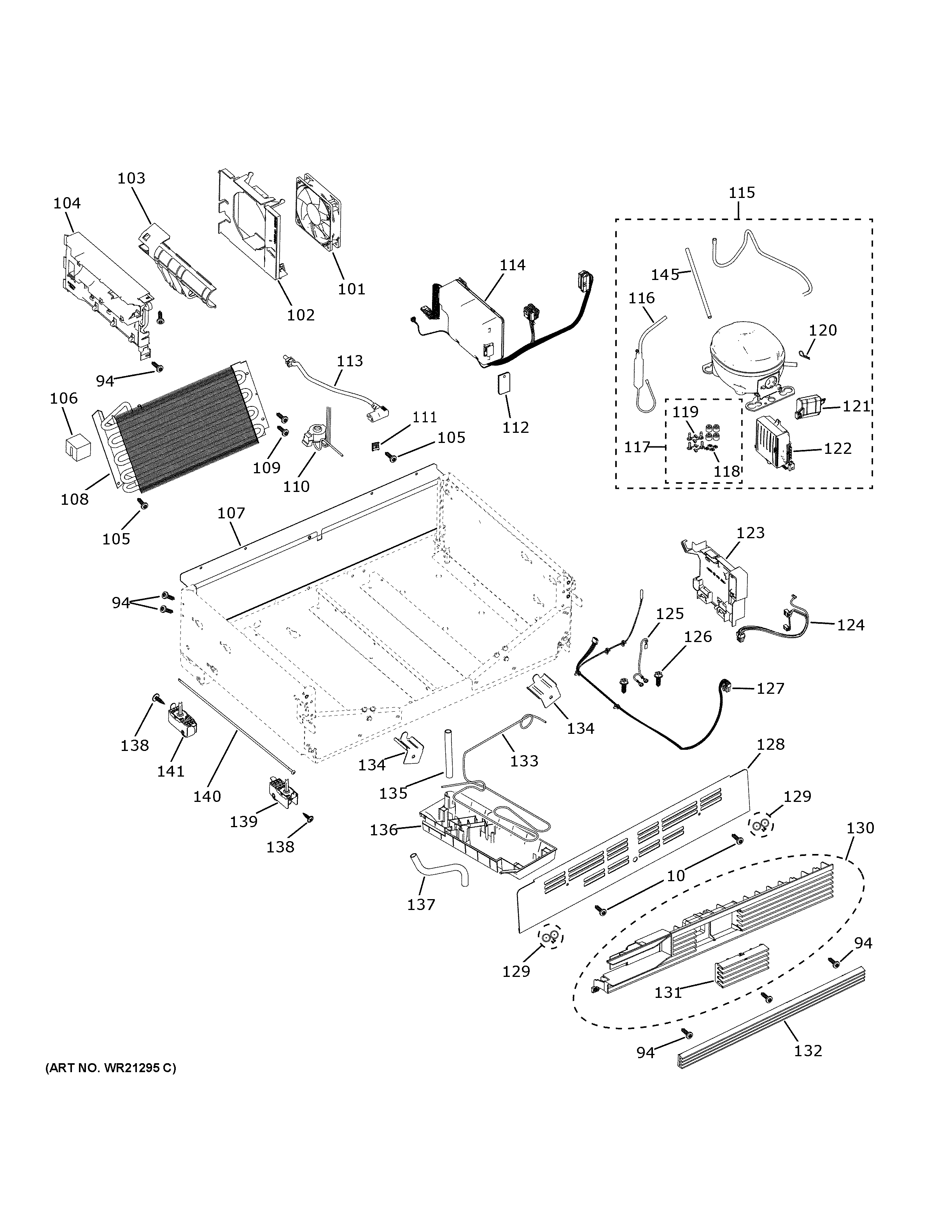

ZIW241NBWBII MACHINE COMPARTMENT

Products

Position	Product
10	SCREW M5X12
94	WIFI AND BLUETOOTH MODULE WITH ENCLOSURE
101	CONDENSER FAN
102	CONDENSER FAN BRACKET
103	FILTER MANIFOLD COVER
104	FILTER MANIFOLD HOLDER
105	SCREW
106	GROMMET
107	MACHINE COVER
108	CONDENSER
109	SCREW
110	3-WAY VALVE
111	CLIP
112	COMMUNICATION PORT COVER
113	POWER CORD HARNESS
114	MAIN CONTROL BOARD ASSEMBLY
115	COMPRESSOR KIT
116	DRIER FILTER
117	COMPRESSOR MOUNTING KIT
118	COMPRESSOR MOUNTING CLIP
119	COMPRESSOR MOUNTING STUD
120	COVER CLIP
121	COMPRESSOR TERMINAL COVER
122	INVERTER
123	INVERTER BRACKET
124	INVERTER HARNESS
125	GROUNDING WIRE HARNESS
126	SCREW
127	VALVE SENSOR HARNESS
128	TOEKICK PLATE
129	TOEKICK PLATE MAGNET KIT
130	RIGHTHAND FIXED GRILLE ASSEMBLY
131	FILTER GRILLE COVER
132	FRONT GRILLE
133	DISCHARGE TUBE
134	TOEKICK PLATE BRACKET
135	LOWER DRAIN TUBE
136	DRAIN PAN
137	UPPER DRAIN TUBE
138	SCREW
139	FRONT LEVELING LEG & ROLLER
140	LEVELING LEG ADJUSTMENT ROD
141	REAR LEVELING LEG & ROLLER
145	PROCESS TUBE
