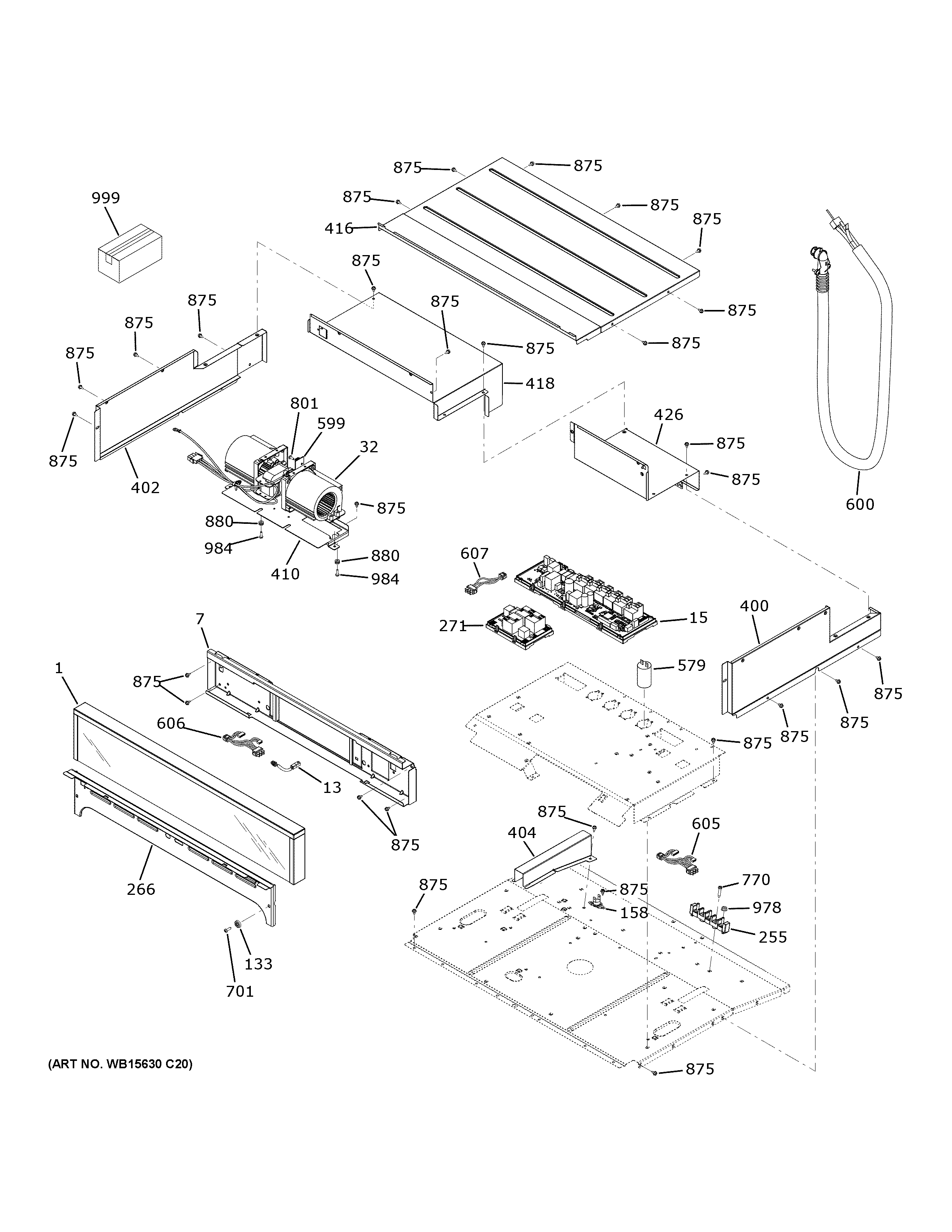

ZKD90DPSN2SS CONTROL PANELadmin2025-04-26T10:56:39+00:00ZKD90DPSN2SS CONTROL PANEL ProductsPositionProduct1STAINLESS CONTROL PANEL7WB07X32470 GE Control Panel Mounting BRack13WB18X30704 GE Jumper15CONTROL RC17 (FLASHED)32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper158WB24X35587 GE Limit Switch255WB17K10001 GE Oven Block Terminal266WB07X33065 GE Upper Vent Trim271WB27X33083 GE Relay Board and Frame Assembly400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34T10159 GE Oven Top Front Cover418TOP REAR COVER426COVER WIRE REAR579WB27T10662 GE Oven Capacitor599WB27T11463 GE Oven Fan Sensor Board600WB18T10574 GE Oven Wire Conduit Assembly600WB18X33486 GE Conduit Wire Assembly605WB49X35794 GE Double Oven Main Harness606WB18X32919 GE COM Wire Harness607WB18X33082 GE Harness Wire Latch701WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM INSTALL INSTRUCTIONS999PM MINI MANUAL AND WIRING999PM OWNERS MANUAL999INSTRUCTION INSTALL
