ZKD90DPSN4SS UPPER OVEN

ZKD90DPSN4SS UPPER OVEN

Written by

in

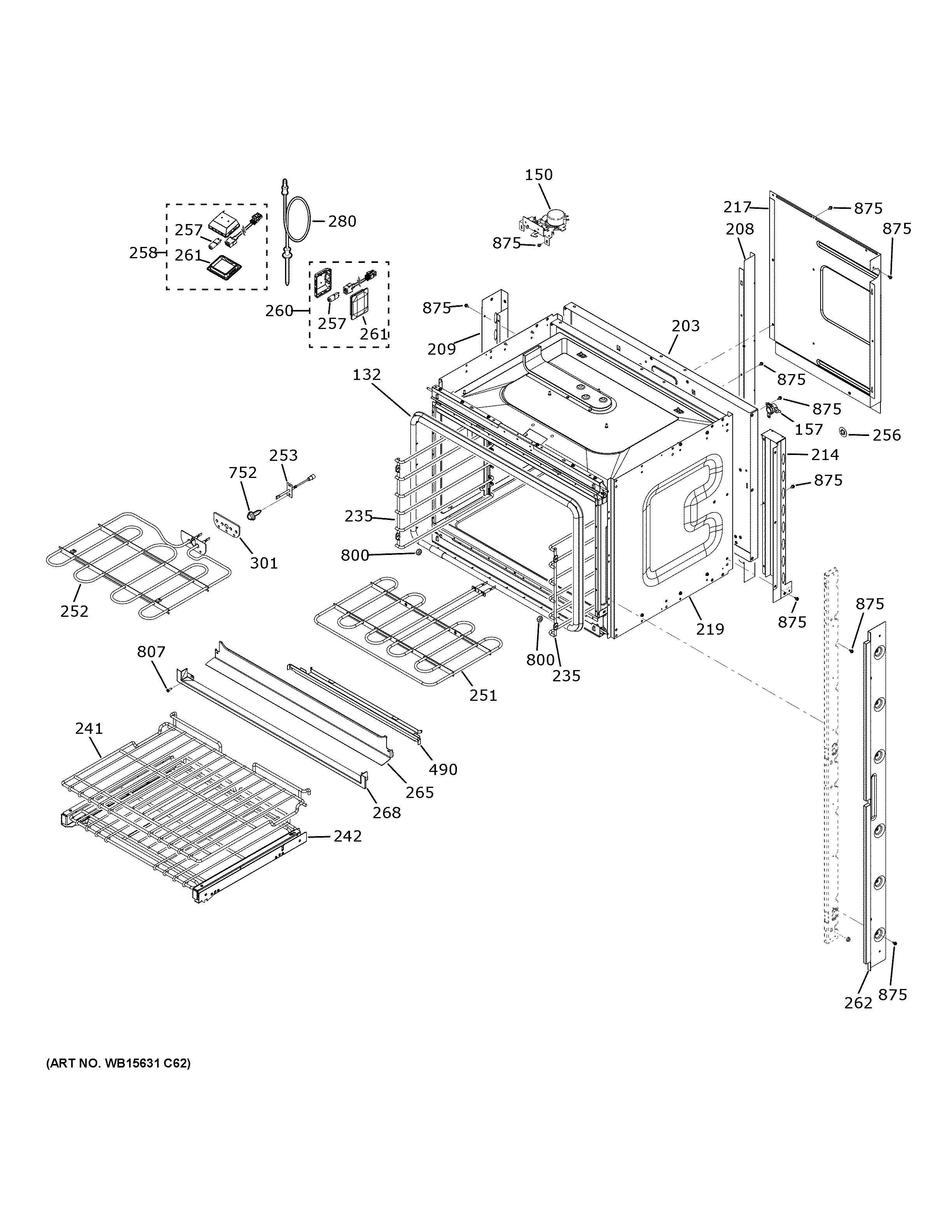

ZKD90DPSN4SS UPPER OVEN

Products

PositionProduct
132WB35X34867 GE Oven Door Gasket
150LATCH ASM
157HIGH LIMIT SWITCH
203RETAINER INSULATION BACK
208WB34T10140 GE Oven Double Divider Air
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
235WB48X21766 GE Oven Guide Rack Left
235WB48X21765 GE Oven Right Guide Rack
241RACK FLAT 27"
242WB48X34700 GE Oven Rack Slide Assembly 27"
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31223 GE Oven Halogen Lamp Assembly
260WB25X31221 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262WB07X34906 GE Stainless Trim Vertical Side
265WB07X21777 GE Oven Lower Trim Vent
268WB07X33163 GE Bottom Trim Assembly Stainless Steel
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
490WB55T10195 GE Oven Hidden Bake Cover
752WB01X21742 GE Screw
800WB01X21270 GE Oven Rack Guide Nut
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
