ZKD910BB3BB WARMING DRAWER ASSEMBLY

ZKD910BB3BB WARMING DRAWER ASSEMBLY

Written by

in

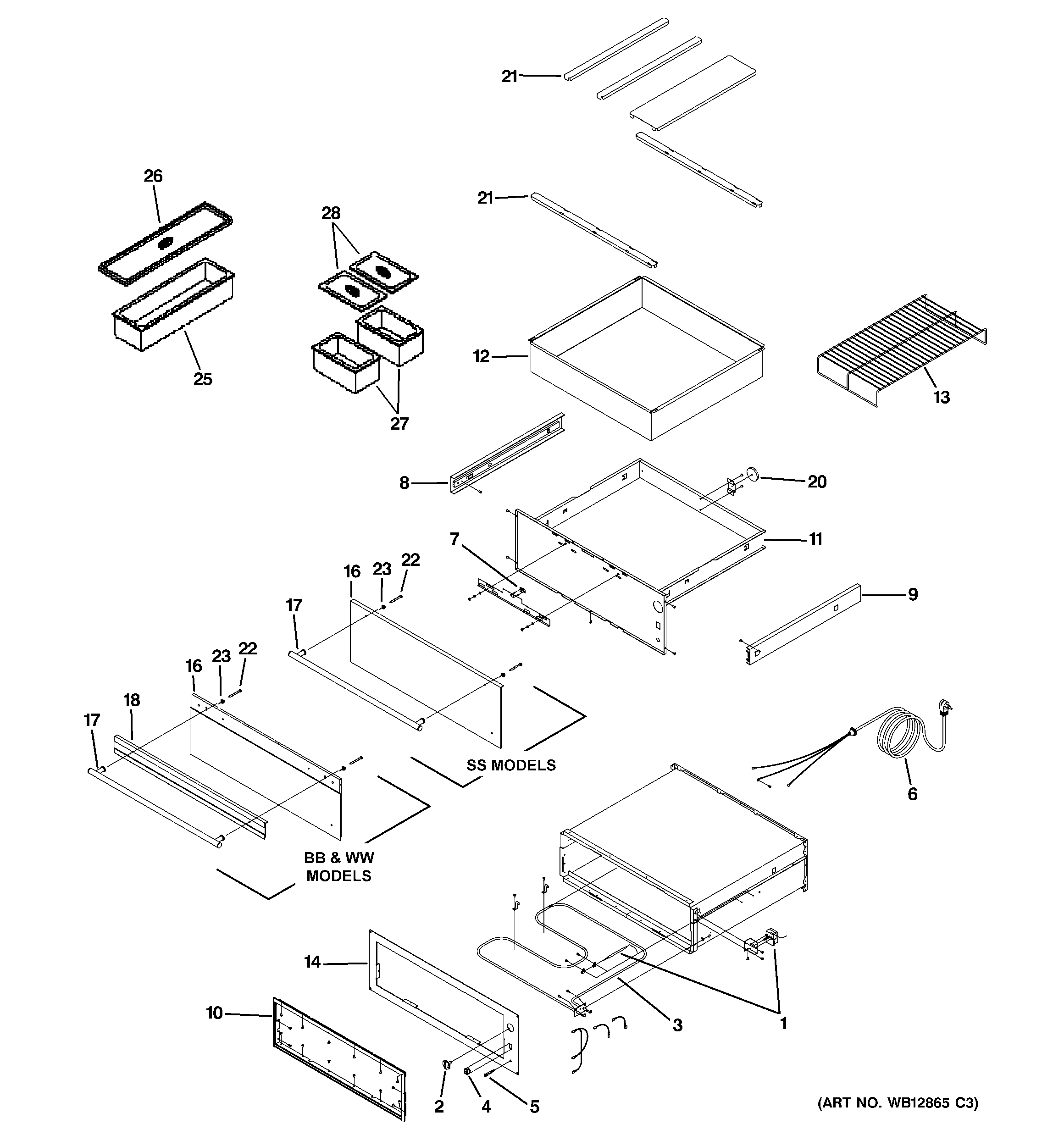

ZKD910BB3BB WARMING DRAWER ASSEMBLY

Products

PositionProduct
1THERMOSTAT
2GEN WB03X10060
3WB44X10029 GE Oven Heating Element
4GEN WB24X10036
5WB02X10587 GE Oven Lamp Indicator
6GEN WB02X10588
7KNOB, VENT SLIDE
8GEN WB02X10589
9GEN WB02X10590
10GEN WB02X10591
11GEN WB58X10003
12WB58X10004 GE Drawer Pan 27 Inch
13WB48X10045 GE Wire Rack
14WB56X10118 GE 27" Face Panel
16GEN WB55X10501
17GEN WB15X10032
18GEN WB07X10224
20WB02X10592 GE Magnet Closed Detent
21WB64X10031 GE 27" Rail Kit Svce Assembly
22WB01X10288 GE 1/4"-28 x 3/4" Bolthex Head
23GEN WB01X10289
25WB49X10158 GE Half Pan
26WB49X10159 GE Half Pan Cover
27WB49X10160 GE Quarter Pan
28WB49X10161 GE Quarter Pan Cover
