ZKD910BF3BB WARMING DRAWER

ZKD910BF3BB WARMING DRAWER

Written by

in

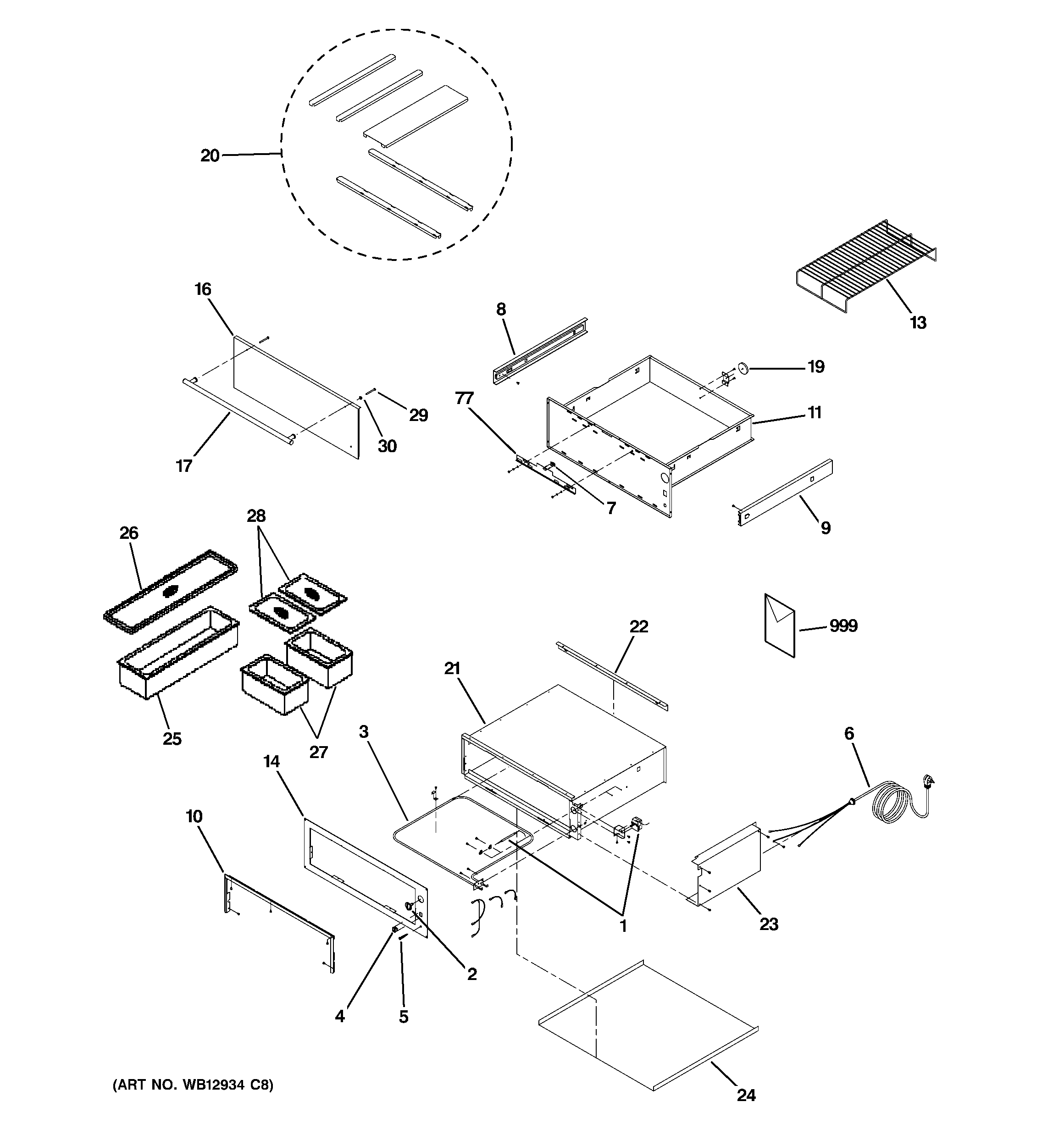

ZKD910BF3BB WARMING DRAWER

Products

PositionProduct
1THERMOSTAT
2GEN WB03X10060
3WB44X10029 GE Oven Heating Element
4GEN WB24X10036
5WB02X10587 GE Oven Lamp Indicator
6GEN WB02X10588
7KNOB, VENT SLIDE
8GEN WB39X10014
9GEN WB39X10015
10GASKET SEAL 27" ASS'Y
11GEN WB58X10021
13WB48X10045 GE Wire Rack
14WB56X10118 GE 27" Face Panel
16GEN WB55X10824
17GEN WB15T10053
19WB02X10592 GE Magnet Closed Detent
20WB64X10031 GE 27" Rail Kit Svce Assembly
21GEN WB63X10046
22GEN WB02X11010
23GEN WB02X11007
24GEN WB02X11009
25WB49X10158 GE Half Pan
26WB49X10159 GE Half Pan Cover
27WB49X10160 GE Quarter Pan
28WB49X10161 GE Quarter Pan Cover
29WB01X10288 GE 1/4"-28 x 3/4" Bolthex Head
30GEN WB01X10289
77GEN WB06X10692
999GEN 49-80301
