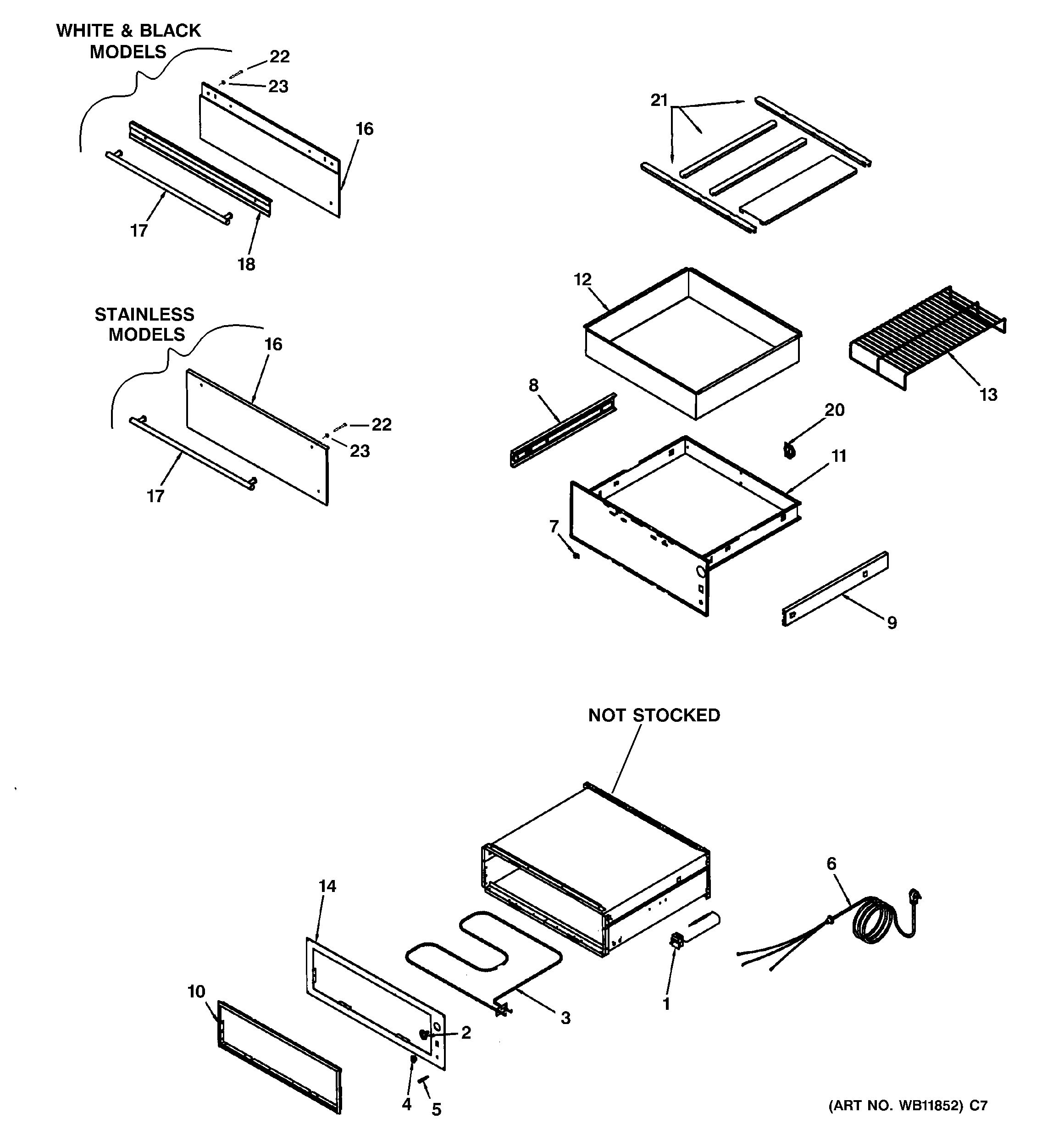

ZKD910WB2WW WARMING DRAWER ASSEMBLY

Products

PositionProduct
1THERMOSTAT
2GEN WB03X10060
3WB44X10029 GE Oven Heating Element
4GEN WB24X10036
5GEN WB02X10819
6GEN WB02X10588
7KNOB, VENT SLIDE
8GEN WB02X10589
9GEN WB02X10590
10GEN WB02X10591
11GEN WB58X10003
12WB58X10004 GE Drawer Pan 27 Inch
13WB48X10045 GE Wire Rack
14GEN WB56X10251
16GEN WB55X10503
17GEN WB15X10030
18GEN WB07X10223
20WB02X10592 GE Magnet Closed Detent
21WB64X10031 GE 27" Rail Kit Svce Assembly
22WB01X10288 GE 1/4"-28 x 3/4" Bolthex Head
23GEN WB01X10289
