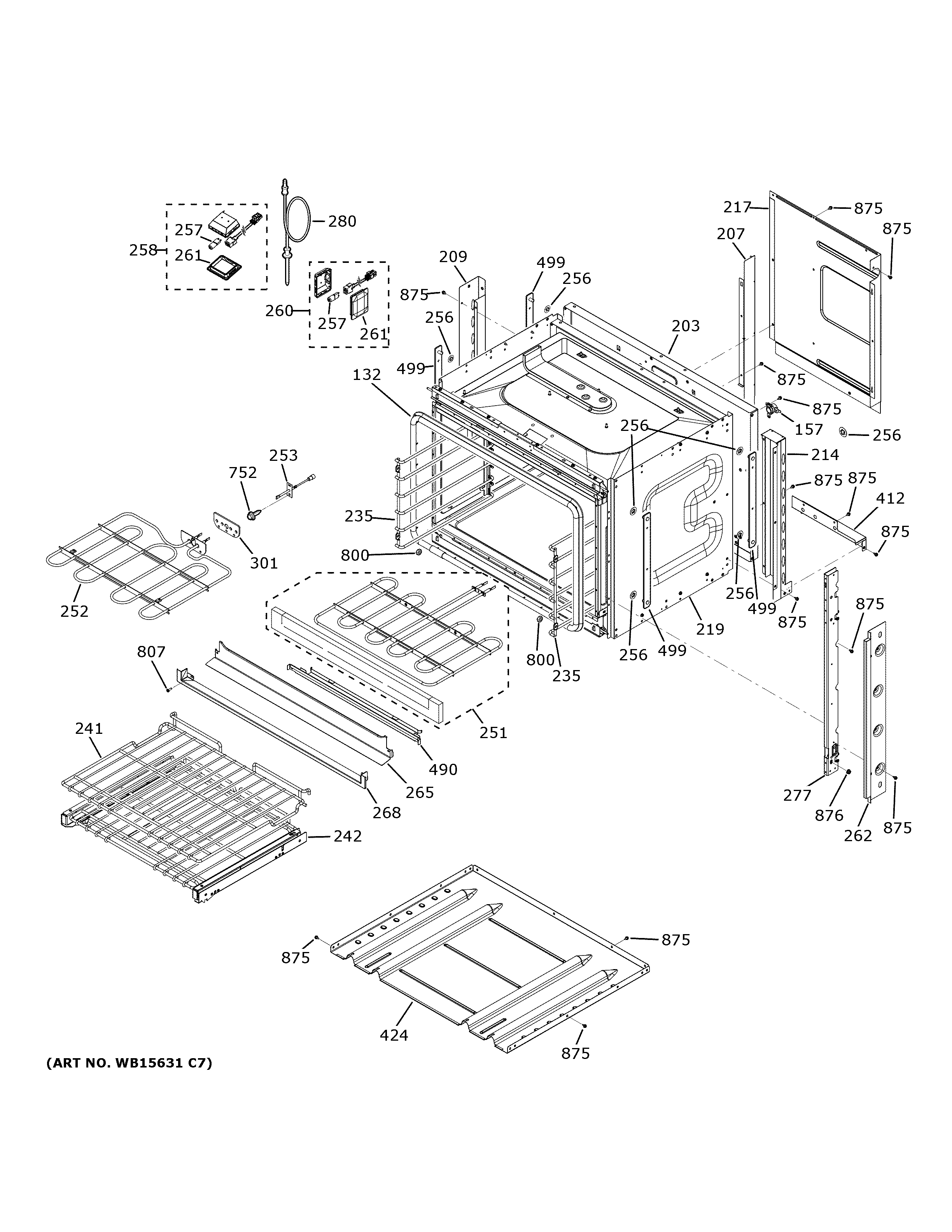

ZKS90DSSN1SS BODY PARTS

ZKS90DSSN1SS BODY PARTS

Written by

in

ZKS90DSSN1SS BODY PARTS

Products

PositionProduct
132WB35X34867 GE Oven Door Gasket
157HIGH LIMIT SWITCH
203RETAINER INSULATION BACK
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10135 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
235WB48X21766 GE Oven Guide Rack Left
235WB48X21765 GE Oven Right Guide Rack
241RACK FLAT 27"
242WB48X34700 GE Oven Rack Slide Assembly 27"
251WB44X21668 GE Oven Bake Element
252WB44T10124 GE Oven Broil Element Assembly
253SENSOR ASM
256WB01T10107 GE Oven Bolt Retainer
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31223 GE Oven Halogen Lamp Assembly
260WB25X31221 GE Oven Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262STAINLESS TRIM VERT SIDE (SWO)
265WB07T10807 GE Oven Lower Black Trim Vent
268WB07X33163 GE Bottom Trim Assembly Stainless Steel
277WB07T10750 GE Oven Right Vertical Brace
277WB07T10751 GE Oven Vertical Left Brace Black
280WB20T10024 GE Oven Thermistor Probe
301WB35X21972 GE Broil Element Gasket
412COVER DUCT
424WB34T10155 GE Oven Bottom Air Duct Cover
490WB55T10195 GE Oven Hidden Bake Cover
499WB34X30789 GE Cavity Brace Assembly
752WB01X21742 GE Screw
800WB01X21270 GE Oven Rack Guide Nut
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
876LOCK NUT
