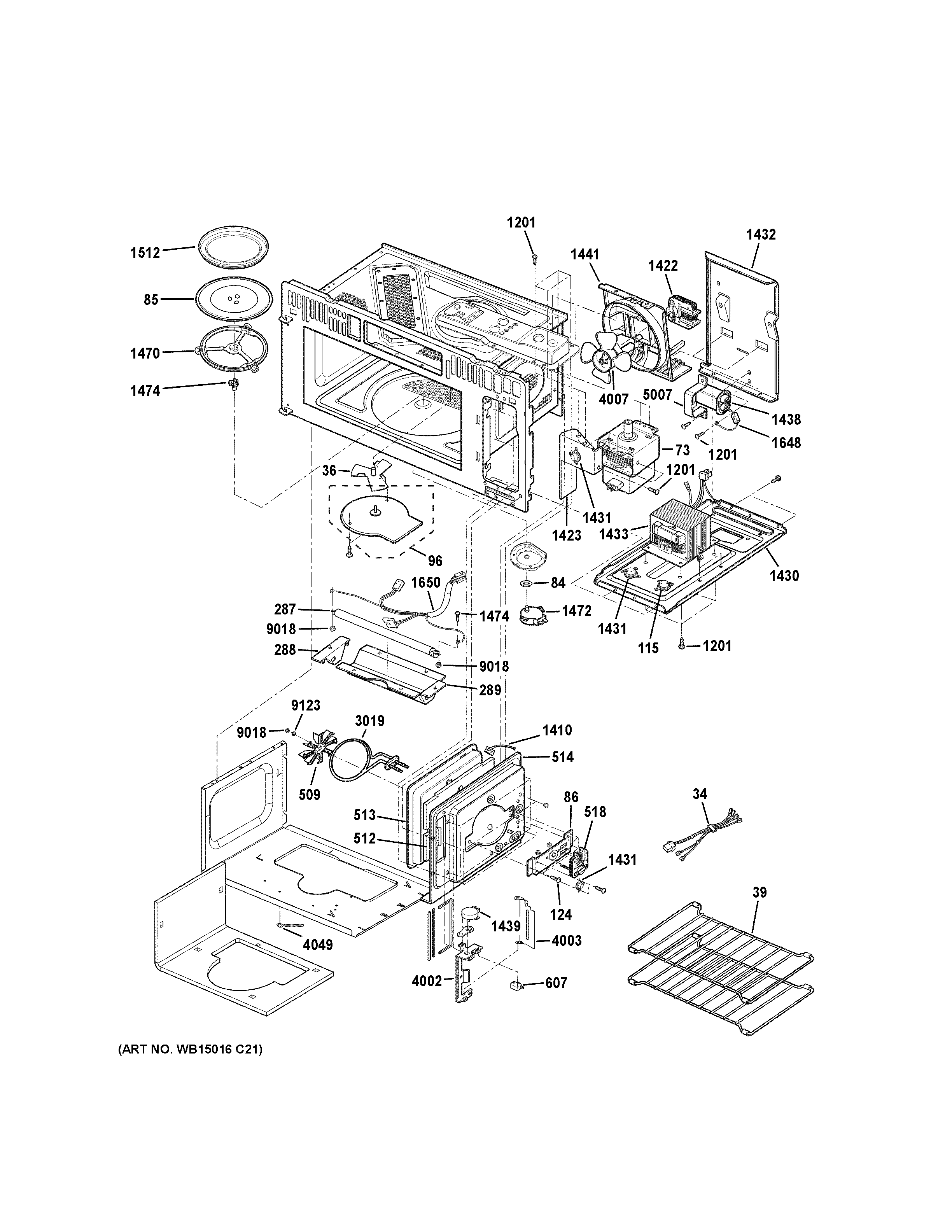

ZSA1202J4SS INTERIOR PARTS (1)

ZSA1202J4SS INTERIOR PARTS (1)

Written by

in

ZSA1202J4SS INTERIOR PARTS (1)

Products

PositionProduct
34WB18X10294 GE Oven Harness
36WB02X32731 GE Fan Stirrer Assembly
39WB48X10064 GE Oven Shelf
73WB27X44106 GE Magnetron
84GASKET
85WB49X10176 GE Oven Glass Tray
86WB56X32723 GE Heater Side Plate
96WB02X32719 GE Oven Microwave Stirrer Fan Cover Assembly
115WB27X11034 GE Oven Thermostat
124SCREW TAPPING,TRUSS HEAD
287WB44X41528 GE Miraclon Heater
288BRACKET,HEATER"
289REFLECTOR
509WB02X32727 GE Fan
512WB06X10664 GE Microwave Glass Wool
513WB02X32726 GE Chamber
514INSULATOR
518WB26X10270 GE Oven Circulation Motor
607WB24X25397 GE Oven Interlock Monitor Switch
1201WB02X10745 GE Binding Head Screw
1410WB18X10287 GE Oven NTC Thermistor
1422WB26X10247 GE Oven AC Fan Motor
1423WB38X10096 GE Oven Air Guide
1430GEN WB39X10029
1431WB20X10048 GE Oven Thermostat
1432WB34X32729 GE Air Guide
1433WB20X10047 GE Oven High Voltage Transformer
1438WB27X11031 GE Oven HV Capacitor
1439WB26X10248 GE Oven Synchronous AC Motor
1441WB39X32800 GE Oven Suction Guide
1470WB06X10834 GE Oven Ring Assembly
1472WB26X10193 GE Oven Turntable Motor
1474WB02X11503 GE Oven Turntable Shaft
1512WB49X10240 GE Oven Range Cooking Tray
1648DIODE-CABLE
1650WB18X32730 GE Harness Assembly Single
3019WB44X10046 GE Oven Heater Sheath
4002GEN WB02X11235
4003WB34X35371 GE Damper Bracket
4007WB38X10005 GE Oven Fan Blade
4049HOLDER WIRE
5007WB02X32593 GE Bracket Capacitor
9018WB1X1520 GE Oven Hexagon Nut
