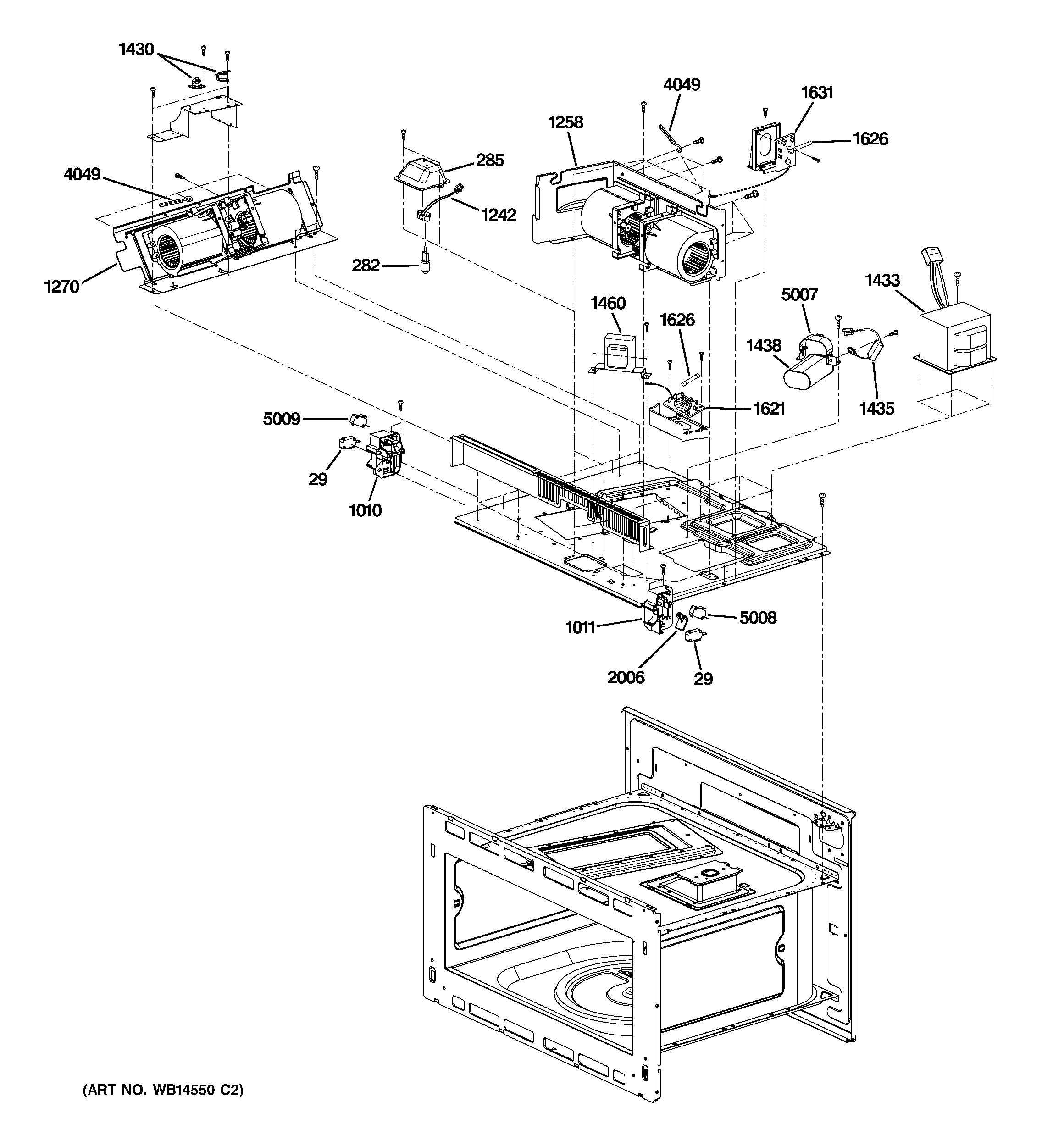

ZSC2202NSS01 INSULATOR PARTS (1)

ZSC2202NSS01 INSULATOR PARTS (1)

Written by

in

ZSC2202NSS01 INSULATOR PARTS (1)

Products

PositionProduct
29PRIMARY INTERLOCK SWITCH
282WB01X10239 GE Halogen Lamp 20W 12V G4 Base
285WB02X11319 GE Microwave Light Cover
1010WB10X32573 GE Oven Left Hand Latch Board
1011WB10X32577 GE Oven Right Hand Latch Board
1242WB06X10726 GE Oven Holder Assembly
1258WB26X10182 GE Oven Circular Circulation Motor
1270WB27X11017 GE Oven Ventilation Fan Motor
1430WB20X10048 GE Oven Thermostat
1433TRANSFORMER HIGH VOLTAGE
1435DIODE-CABLE
1438WB27X11033 GE Oven High Voltage Capacitor
1460GEN WB20X10021
1621FILTER ASM NOISE
1626WB27X10928 GE Oven Line Fuse
1631SURGE BOARD
2006WB02X32588 GE Oven Lever
4049HOLDER WIRE
5007WB02X32593 GE Bracket Capacitor
5008WB24X25397 GE Oven Interlock Monitor Switch
5009WB24X10172 GE Oven Micro Switch
