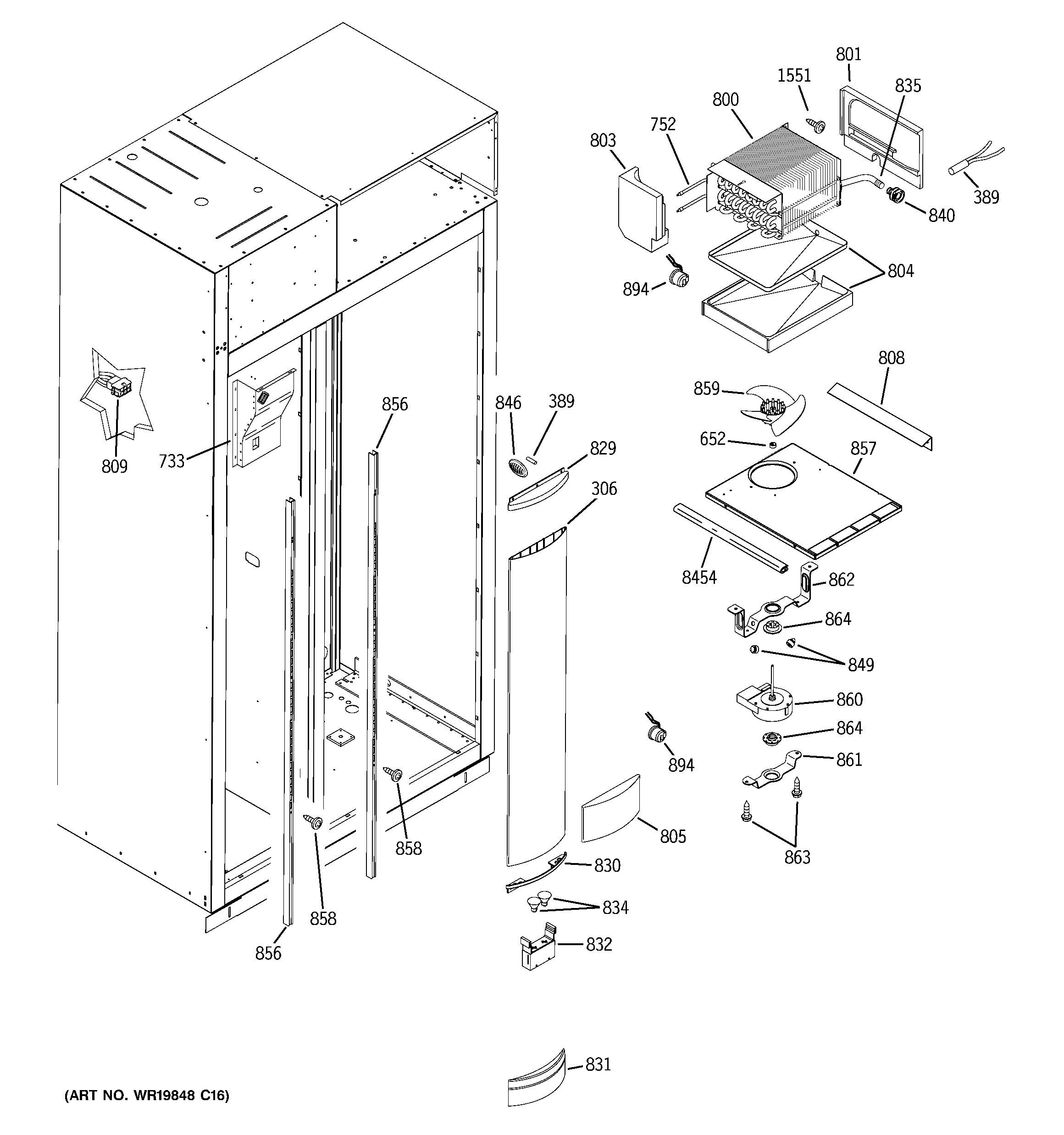

ZSEB420NYA FREEZER SECTION

ZSEB420NYA FREEZER SECTION

Written by

in

ZSEB420NYA FREEZER SECTION

Products

PositionProduct
306GEN WR17X12617
306LIGHT COLUMN ASM 36/42FZ
389WR55X10025 GE Refrigerator Temperature Sensor
652WR02X12149 GE Refrigerator Ring
733DUCT CVR FZ 36/42 ND
752GEN WR51X10116
800WR85X27895 GE Refrigerator Evaporator Assembly
801WR17X12528 GE Refrigerator Return Baffle
803WR02X12856 GE Refrigerator Foam Block Evaporator
804GEN WR17X12731
805GEN WR02X12840
808BRACKET QC DUCT
8096 PIN CON AMP 1-480705-0
829TOP END CAP-36 & 42
830BULB HOUSING ASM 36/42FZ
830BULB HOUSING ASM 42FF
831GEN WR38X10442
834WR02X11183 GE Refrigerator Halogen Bulb Light
835WR17X11969 GE Refrigerator Tube Drain FLEXIBLE
840WR02X12062 GE Refrigerator Flapper & Valve Assembly
846WR02X12839 GE Refrigerator Grille Sensor
849BUMPER
856TRACK FZ SHELF
857GEN WR17X12736
858SCR 10-24 F PNP 1.25S
859EVAPORATOR FAN BLADE
860WR60X10185 GE Refrigerator Evaporator Fan Motor
861WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
862WR02X10653 GE Refrigerator Orifice Fan Bracket
863WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
864WR02X12008 GE Refrigerator Evaporator Fan Grommet
894WR50X10092 GE Refrigerator Light Thermostat
1551WR1X5645 GE Refrigerator Screw
8454WR38X10190 GE Refrigerator Edge Trim
