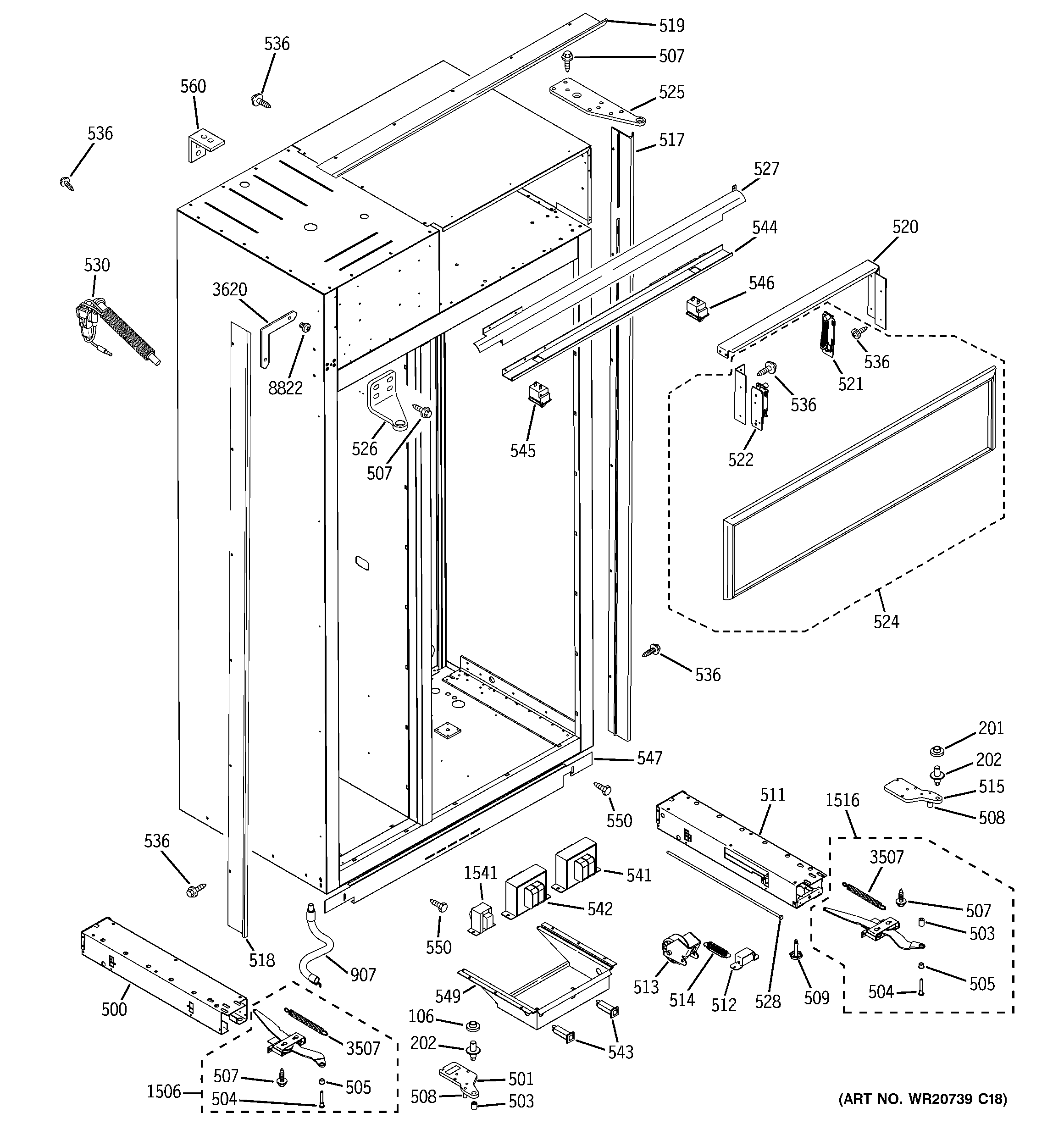

ZSEB420NYB CASE PARTS

ZSEB420NYB CASE PARTS

Written by

in

ZSEB420NYB CASE PARTS

Products

PositionProduct
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
201WR02X10953 GE Refrigerator Bushing Hinge Bottom
202GEN WR02X8629
202WR13X10239 GE Refrigerator Lower Hinge Pin Adjuster
500WR13X30112 GE Refrigerator Left Hand Base Channel
501WR13X10241 GE Refrigerator Lower SXS Hinge Case
503WR02X11231 GE Refrigerator Door Closure Spacer
504WR02X11207 GE Refrigerator Shoulder Bolt
505WR02X10951 GE Refrigerator Bushing Arm Nylon
507WR01X10177 GE Refrigerator Hinge Screw Door Bottom
508WR02X11209 GE Refrigerator Shear Pin
509LEVELING LEG
511WR13X30113 GE Refrigerator Right HandBase Channel
512WR02X11210 GE Refrigerator Front Roller Assembly
513WR2X8377 GE Refrigerator Wheel Assembly
513WR02X10480 GE Refrigerator Mobility Wheel
514WR02X11233 GE Wheel Spring
515WR13X23372 GE Refrigerator Bottom Case Hinge
517WR17X12831 GE Refrigerator Trim Case Right Hand Side
518WR17X11181 GE Refrigerator Case Trim
519WR17X11353 GE Refrigerator Case Trim Top
520GEN WR13X10876
521WR13X10204 GE Refrigerator Left Grille Hinge Assembly
522WR13X10730 GE Left Grill Hinge
524WR74X10291 GE Refrigerator Grille Panel Assembly
525WR13X10656 GE Refrigerator Upper Hinge
526WR13X10246 GE Refrigerator Hinge SXS Case Upper
527WR74X10112 GE Refrigerator Eyebrow Switch Cover
528WR01X10256 GE Refrigerator Base Shaft
530WR49X10094 GE Refrigerator Fill Tube Kit
536WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
541GEN WR62X10082
542GEN WR62X10081
543GEN WR55X10766
544PLATE SWITCH SXS
545WR23X427 GE Refrigerator Freezer Light Switch
546WR23X37285 GE Light Switch
547GEN WR74X10312
549WR17X12738 GE Tray Transformer
550WR01X10065 GE Screw
560WR01X10825 GE Refrigerator Anti-Tip Bracket
907WR49X10182 GE Refrigerator Service Kit Water Line
1506WR02X11208 GE Refrigerator Link Accelerator D02
1516WR02X11211 GE Refrigerator Link Actuator D02
1541GEN WR62X10080
3507WR02X12948 SPRING CLOSURE
3620WR02X11256 GE Refrigerator Top Case Trim Bracket
