ZSEB420NYB FREEZER DOOR

ZSEB420NYB FREEZER DOOR

Written by

in

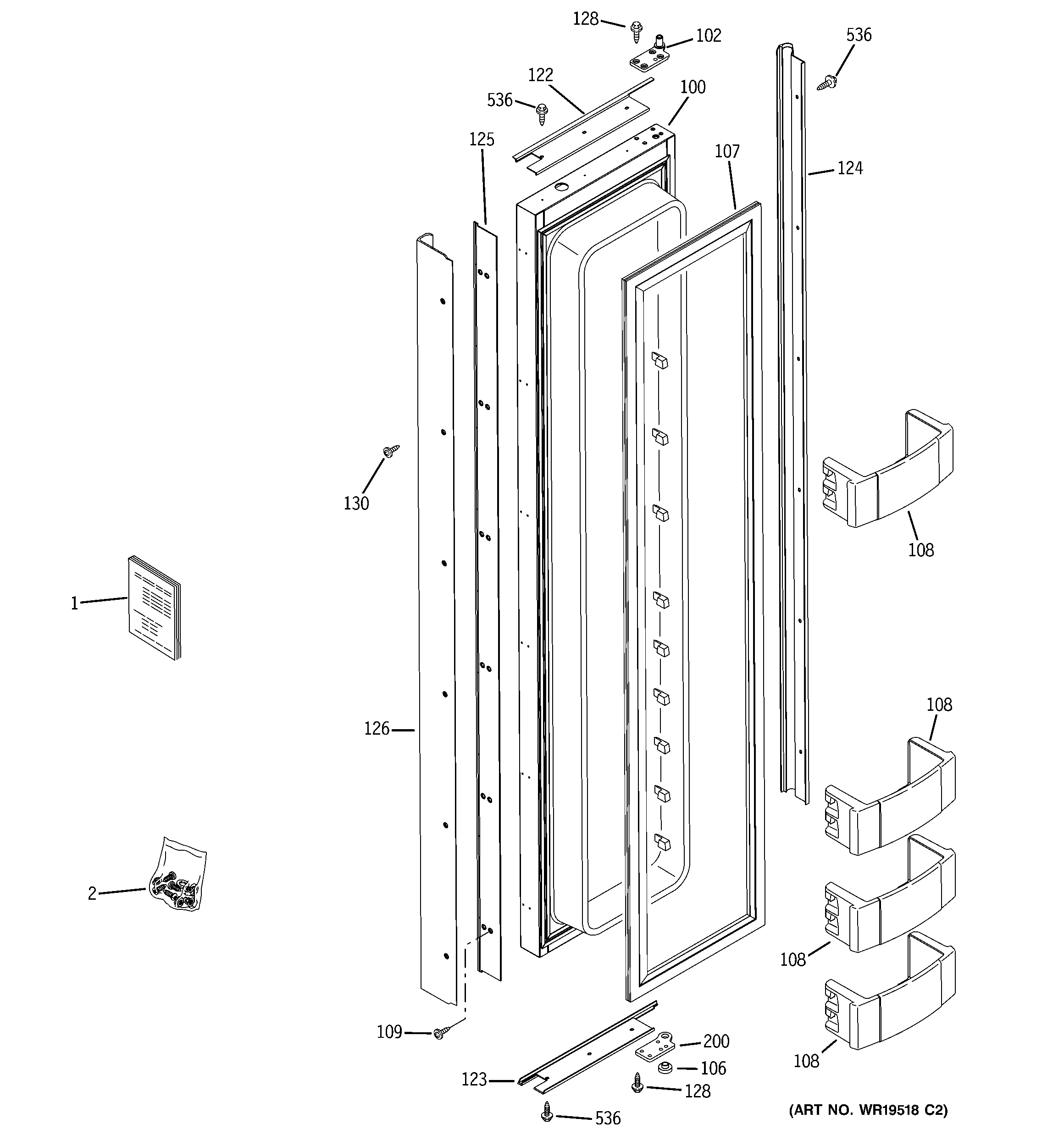

ZSEB420NYB FREEZER DOOR

Products

PositionProduct
1GEN 49-60572
1GEN 31-46531
1PM MINI MANUAL
2WR02X24343 GE Handle Trim Cover
100WR78X23592 GE Refrigerator 42" ND FI Pack Door Assembly
102WR13X10238 GE Refrigerator Top SXS Door Hinge Assembly
106WR01X10297 GE Refrigerator Bottom Hinge Bushing
107GASKET AND LABEL ASM SXS
108WR71X25605 GE Refrigerator Door Bin Assembly 36/42
109WR01X10303 GE Refrigerator Handle Trim Screw
122WR38X10326 GE Freezer Top Door Trim
123WR38X10327 GE Freezer Bottom Door Trim
124WR38X10270 GE Refrigerator Door Trim Side
125WR38X10271 GE Refrigerator Handle Trim
126WR12X10526 GE Refrigerator Handle O/S1
128WR1X1754D GE Refrigerator Screw Package
130WR1X2130 GE Refrigerator Screw
200WR13X10657 GE Refrigerator Bottom Door Hinge
536WR01X10188 GE Refrigerator Screw Trim (SELF DRILLING)
