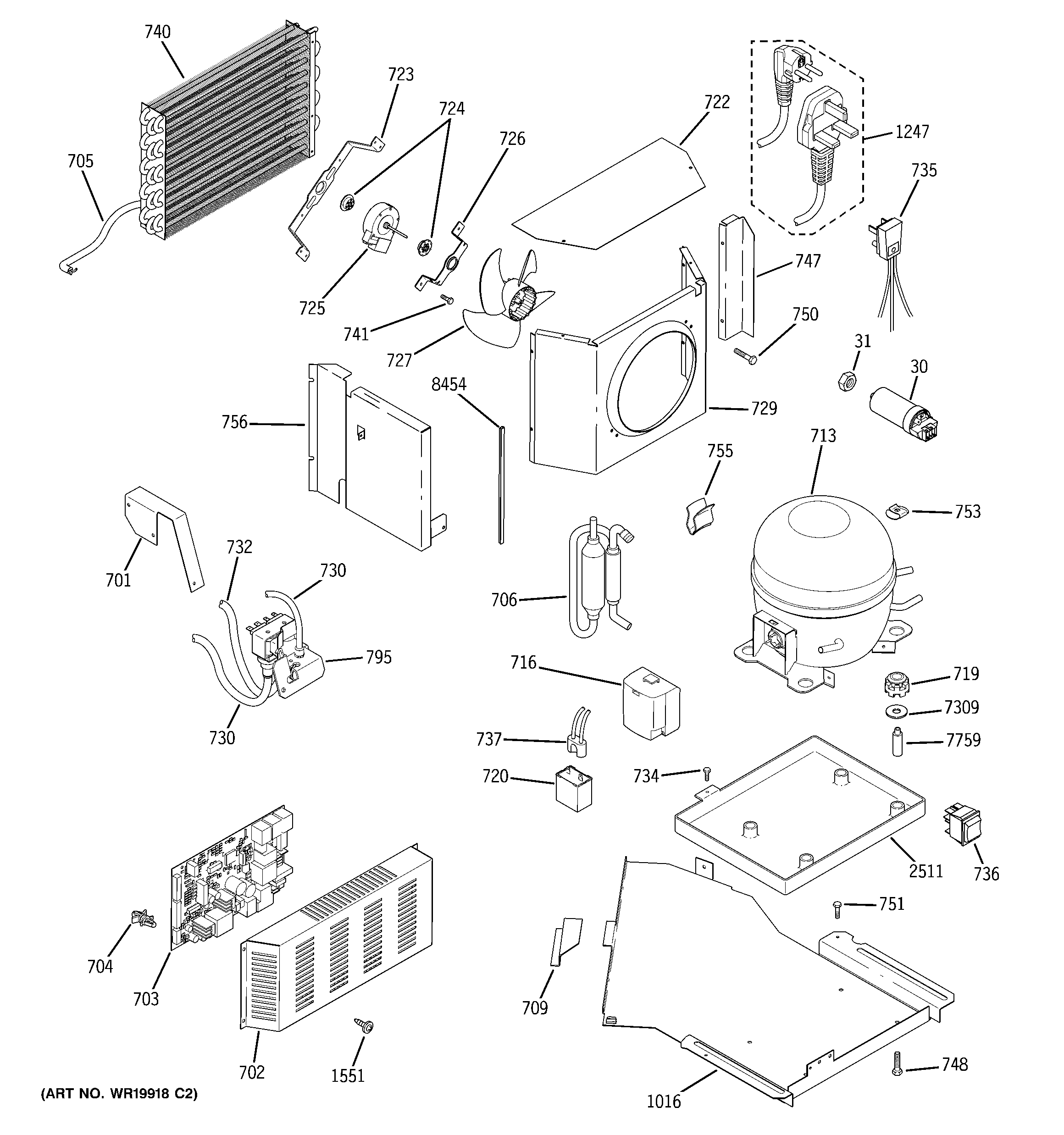

ZSGS420DMESS SEALED SYSTEM & MOTHER BOARD

ZSGS420DMESS SEALED SYSTEM & MOTHER BOARD

Written by

in

ZSGS420DMESS SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
30GEN WH12X10192
31GEN WH02X10124
701WR02X12198 GE Refrigerator Bracket Water Valve
702GEN WR02X11220
703WR55X26733 GE Refrigerator Control Board
704WR01X10301 GE Refrigerator Main Board Standoff
705CAP SUCTION TUBE ASM
706WR86X25269 GE Refrigerator R134 Dryer
709WR02X11221 GE Refrigerator Retainer Pan System
713WR87X10103 GE Refrigerator Compressor Replacement Kit R134A
716GEN WR02X10556
719WR02X22869 GE Refrigerator Grommet
720WR55X24065 GE Refrigerator Kit Capacitor 15 UF
722COND. SHROUD TOP
723BRKT COND FAN MOTOR LG
724WR02X10520 GE Refrigerator Fan Motor Grommet
725WR60X10209 GE Refrigerator DC Condenser Fan Motor
726WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
727WR60X24484 GE Refrigerator Condenser Fan Blade
729SHROUD CONDENSER
730WR17X1948 GE Refrigerator Water Line
732WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
73436 VAPORIZER PAN BOLT
735GEN WR23X10387
736WR49X10070 GE Refrigerator Master Light SW. Kit
737GEN WR23X0474
740WR84X10048 GE Refrigerator Replacement Condenser Assembly
741WZ5X158D GE Screw Package of 12
747COND BAFFLE RH
748SCREW MTG STUD
750WR1X1826 GE Refrigerator Screw
751WR01X10302 GE Bolt 1/4-20 x 1.5"
753WR1X1779 GE Refrigerator Stud Mounting Compressor
755GEN WR02X9501
756GEN WR17X11435
795WR57X33326 GE Refrigerator Water Inlet Valve
1016GEN WR17X11715
1247GEN WR23X10431
1551WR1X5645 GE Refrigerator Screw
2511GEN WR17X11714
7309WR01X10308 GE Flat Washer 3/8" x 7/8"
7759STUD COMPRESSOR MTG
8454WR38X10190 GE Refrigerator Edge Trim
